Klacci iF+ Series Bi-System Touchless Smart Lock Catalog

iF+ Series Bi-System Touchless Smart Lock

RFID card and mobile phone dual authentication

A combination of security and flexibility

Comes standard with choices of unlocking method including smart card and smartphone, which brings the advantage of faster access time yet with security in mind. Not only proximity contactless, the iF+ Series is offering a powerful mix among performance, convenience, security and flexibility from what the smart card can be provided.


Proximity contactless verification time of less than 1 second, giving users the maximum speed to access with longer card reading distances.

* Time and proximity distance of about 0.75″ may vary depending on type or format of the electronic credential is used.


Electronic credentials can be quickly assigned or revoked by the administrator at the lock. It is just that easy to adjust your access authorization for either longer term or temporary access users.


The smart card is completely secured by secure messaging. Accessing data stored is protected by up to AES 128-bit encryption.*

* Crypto algorithms based upon card types.


Fully compliant with the contactless proximity smart card protocol according to ISO14443A/B. The electronic key available in multiple formats such as tag or transponder to fit your preference.

A True Pioneer in The New Era

The Touchless Solutions That Supports Dual Authentication

Reducing touchpoints to minimize the spread of germs have became the new norm in accessing door openings. The iF+ Series Touchless Smart Lock not only adds biometrics to supplement the existing access controls solution, but it also eliminates the need for physical keys or shared key cards by using mobile credentials – all within the hands of the user.

More Secure

The standard authentication uses the user mobile device’s biometric recognition function or a simple passcode to identify the visitor. The second authentication can be turned on from the Smartlink App as an option to add an additional facial recognition check.

More Flexibility

The lock administrator can easily adjust the security level of the opening by enabling or disabling the dual authentication. Not all spaces need the equal security, nor all authorized users having the same authority. The iF+ Series Touchless Smart Lock gives you the flexibility to adjust how much authentication is needed, by locks and by users.

More Convenience

Mobile credential gives an advantage for not having the input device installed or physically connected to the door lock. Meaning less setup or maintenance costs and less wear on the lock, but more convenience in regular maintenance.

Klacci iF Series Mobile Biometrics Touchless Smart Lock The Touchless Solutions That Supports Dual Authentication English

Dual Authentication to Keep You Safe

Mobile credential can be seen as the digital key to accessing the opening. The electronic access control sector nowadays commonly adopted the mobile credentials with something you know (passcode), or with something you are (biometrics). Why not take the advantage of both?

Most smartphones or tablets carry cameras with built-in biometric identifications. The iF+ Series Touchless Smart Lock integrates these features with our Smartlink App, replacing the physical keys or key cards that gives you the choice to secure your space with something you know and something you are, so it is essentially a dual authentication.

The level of security required for access is determined by the lock administrator, who decides which users require the standard authentication and which ones need a dual.

Credential should be kept secure, but in case it happens, knowing your credential doesn’t mean they can get into your door. With iF+ Series Touchless Smart Lock installed at your door, you are the unique digital key for your lock.

Linkage® System Application

Klacci iF Series Mobile Biometrics Touchless Smart Lock Management Mobility with Cloud-based Application

Management Mobility with Cloud-based Application

Linkage® technology is an ecosystem that connects and brings together different access control applications under one single platform, allowing you to remotely manage and configure your locks installed in different locations based on the user’s needs and security requirements. User access rights can be added, managed and deleted in real time from anywhere via its Smartlink® app or web portal, as well as audit trails to all users.

Administrators can also provide a one-tap quick access to low security access points allowing users to access more conveniently.

The iF+ Series Touchless Smart Lock is designed for installation and setup simplicity, making use of your smartphone’s telecom signal to connect with the cloud, so no need for additional wireless connectivity specifically for the lock.

The Smartlink App offers the all-in-one tool to manage your iF+ Series Touchless Smart Lock. It is everything you need to control and access your door openings.

Klacci iF Series Mobile Biometrics Touchless Smart Lock The App home English

The User Experience

  • All locks associated with the same user can be viewed at a glance. Easily switch among different locks on the App to unlock difference doors without the need to setup for multiple user accounts.
  • Feedback option is available through the App allowing user to report issue or share user experience with Klacci.
  • GDPR compliance with all biometrics data stored in the user device. Smartlink does not upload or share the data for other purpose.
  • Compatible with iOS and Android devices.
Klacci iF Series Mobile Biometrics Touchless Smart Lock The App Management English

The Management

  • Add, delete or edit setting of the lock instantly, anywhere and anytime through the cloud-based Linkage®.
  • Adjust the requirement to access by using single or dual authentication, or even one tap quick access.
  • Set the accessible time and date for different locks and/or users.
  • Send one-time or multiple access authorization to temporary visitors remotely.
  • Turn on/off HOLD OPEN or PRIVACY mode. Set timer for PRIVACY mode.
  • User list, audit trails, lock battery level can be displayed from the App for complete visibility of the lock status.

* Long timer duration may affect battery life.

The Security

  • Data transmission between the lock and the cloud-based Linkage® is 128-bit AES encrypted.
  • Each lock generates a unique encrypted key which is not shared by other locks.

Linkage® System Platform

Flexible Models to Adapt Your Every Need

One of the advantages of Linkage® technology is that it can easily be adapted and combined into new or existing management systems that gives you ease of access and management. Whether using it in a small or large scale application, Linkage® delivers exactly what you need.

Klacci iF Series Mobile Biometrics Touchless Smart Lock Linkage System Platform
Klacci iF Series Mobile Biometrics Touchless Smart Lock Linkage System Platform Model

Basic Model

All your management needs can be fulfilled with the Smartlink® mobile app , which include:

  • Add, modify and delete user access rights
  • Perform advanced access control settings
  • Real-time monitoring and status alert
  • Check user’s audit trail

Advanced Model

Businesses that already have a centralized system can choose to customize and integrate the Linkage® platform into their existing system. For specific applications such as B & B, hotels and apartments, the management platform can integrate payment services* to accomodate faster and more convenient services and solutions.

  • Batch Authorization
  • Assignee Authorization
  • Authorization Transfer

Product Options​

With the advancement of the digital era, wireless technology has become a staple for efficient and smart application.

Klacci has pushed forward to bring forth a new level of efficiency and intelligent application. With the iF+ Series Touchless Smart Lock, access control operation and management has never been easier. No matter where or when, you have total control in the palm of your hand.

The iF+ Series Touchless Smart Lock is designed with flexibility and adaptability in mind to fit any home or business size and application. Along with its revolutionary innovative Linkage® technology, your property is ensured to be protected in a convenient yet secure way.

iF+ Series Product Options​

Battery TypeLow Voltage Type
Klacci iF plus Series Bi-System Touchless Smart Lock iF plus - 01 Cylindrical LockKlacci iF plus Series Bi-System Touchless Smart Lock iF plus - 94 Mortise LockKlacci iF plus Series Bi-System Touchless Smart Lock iF plus - R Readers For other door hardware
Learn MoreLearn MoreLearn More

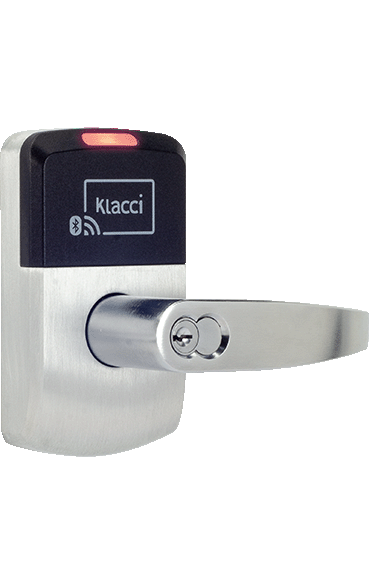

Cylindrical Lock
Mortise Lock

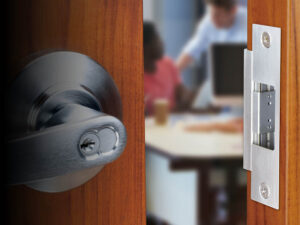

Readers For other door hardware
ApplicationsHomes, office, schools, clinics, hotels, dormitories and B & B inns.
Where quick and easy installation is required to maximize securityWhere the toughest and the most durable security are requiredWhere flexible security is required for connecting with other door hardware
Power Source4 AA Alkaline BatteriesInput: 12 or 24 VDC
1) Energized Circuit (Output = Input; Current: MAX 1.5A)
2) Electrical Circuit (COM, NO/NC)
Mechanical PlatformCylindrical LockMortise Lock
  • Conforms to ANSI/BHMA A156.2 Grade 1 Cylindrical Lock
  • ANSI A115.2, through bolted installation
  • Easily install or retrofit to new or exisiting door jamb
  • Hold Open and Privacy mode standard
  • Conforms to ANSI/BHMA A156.13 Grade 1 Mortise Lock
  • All bolts are made of stainless steel with most working parts inside the case made of high strength steel alloy
  • Hold Open and Privacy mode standard
  • Quick connection with input/output terminals to Exit Devices, Electirc Strikes, Door Operators etc
  • Hold Open and Privacy mode standard

Electronic Specifications

Required Power / Control Mode
  • Battery Life: Estimated 1 year or 5000 cycles with 4 AA alkaline batteries.
  • Power Input: 12 or 24 VDC. 2 Types of Output Options.
    1) Energized Circuit (Output = Input; Current: MAX 1.5A).
    2) Electrical Circuit (COM, NO/NC).
No. Users
  • Unlimited, dependent on smartphone’s memory capacity.

  • 3000 units of smart cards.
  • Can assign secondary administrators for unlimited or 3-5 users using the user management interface.
Credential Verification Time
  • <1s (without facial recognition).
Note: Depending on the smartphone used, the actual connectivity during operation may differ.
Visual Communications
  • LED.
Communication Standards
  • Wifi.

  • 3G/4G/5G.

  • Bluetooth 4.0.
  • AES 128-bit.
Communication Range
  • 2 m.
Wake-Up on Radio
  • 1s by Bluetooth connection or Inside button.
Data Rate
  • <100kb via Wifi, 3G/4G/5G.
Connectivity Options

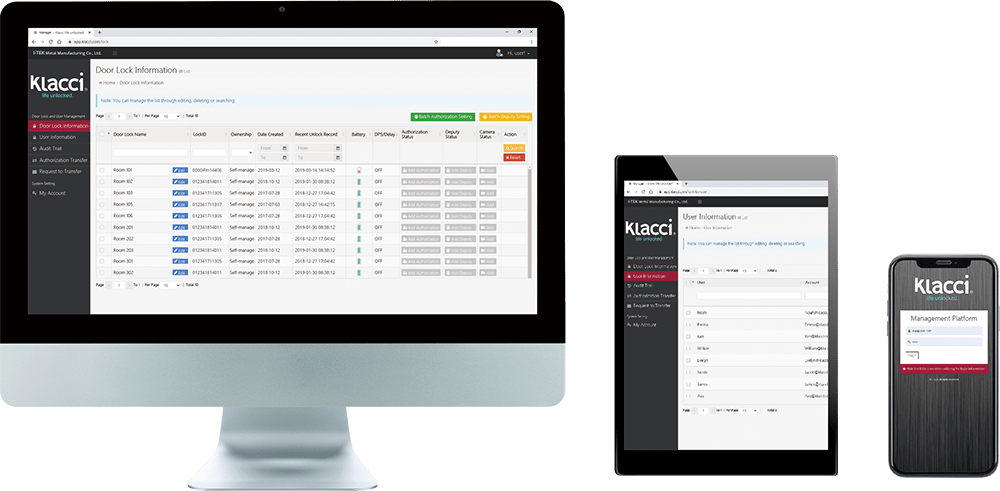

  • Web portal management platform (manage authorization, authorization updates, biometric/non-biometric requirement).

  • Wifi access point (real-time communication).

  • Telecom signal (3G/4G/5G) (real-time communication).
Non-Biometric / Biometric Recognition
  • Customized passcode, fingerprint, facial recognition. Supports Face ID (iOS) or device built-in biometrics data recognition.
Operating Temperature
  • 0~49°C.
Certification / Compliance
  • ANSI/BHMA A156.25.

  • UL294 for Access Control System Units.

  • CAN/ULC-60839 for Electronic Access Control Systems.

  • FCC Part 15.

  • Industry Canada (IC) Certification.
Available Status Signals
  • Request-to-exit.

  • Battery status/low battery alert.

  • HOLD OPEN mode (constantly unlocked until reset back to standard mode).

  • PRIVACY mode (all users’ access denied until reset back to standard mode or when turning Inside lever; administrator can access normally).

  • Communication status.
Flexible Solutions
  • Smart card.

  • Smartphone.

  • Tablet.

  • Web portal via PC.
Mobile App
  • Add and configure locks.

  • Add new users and enroll credentials.

  • View users and alerts.

  • Perform lock diagnostics.

  • Requirements: IOS 9 or later Android 4.4 or later.

  • Standard Authentication: Passcode OR the user mobile device’s biometric recognition function.

  • Dual Authentication: The standard authentication AND the Smartlink App’s facial recognition.

  • User feedback.
Web Portal
  • Configure locks.

  • Add new users and enroll credentials.

  • View audits and alerts.

  • Setup facial recognition requirement for access.

  • Preserve for security camera/ online alerts connection port.

  • Requirements:
      » IE 11.1 or later.
      » Chrome 38.0 or later.
      » Firefox 33.0 or later.
      » Safari for Mac OS X10 or later.
      » Mobile/tablet browser for Android and iOS.
