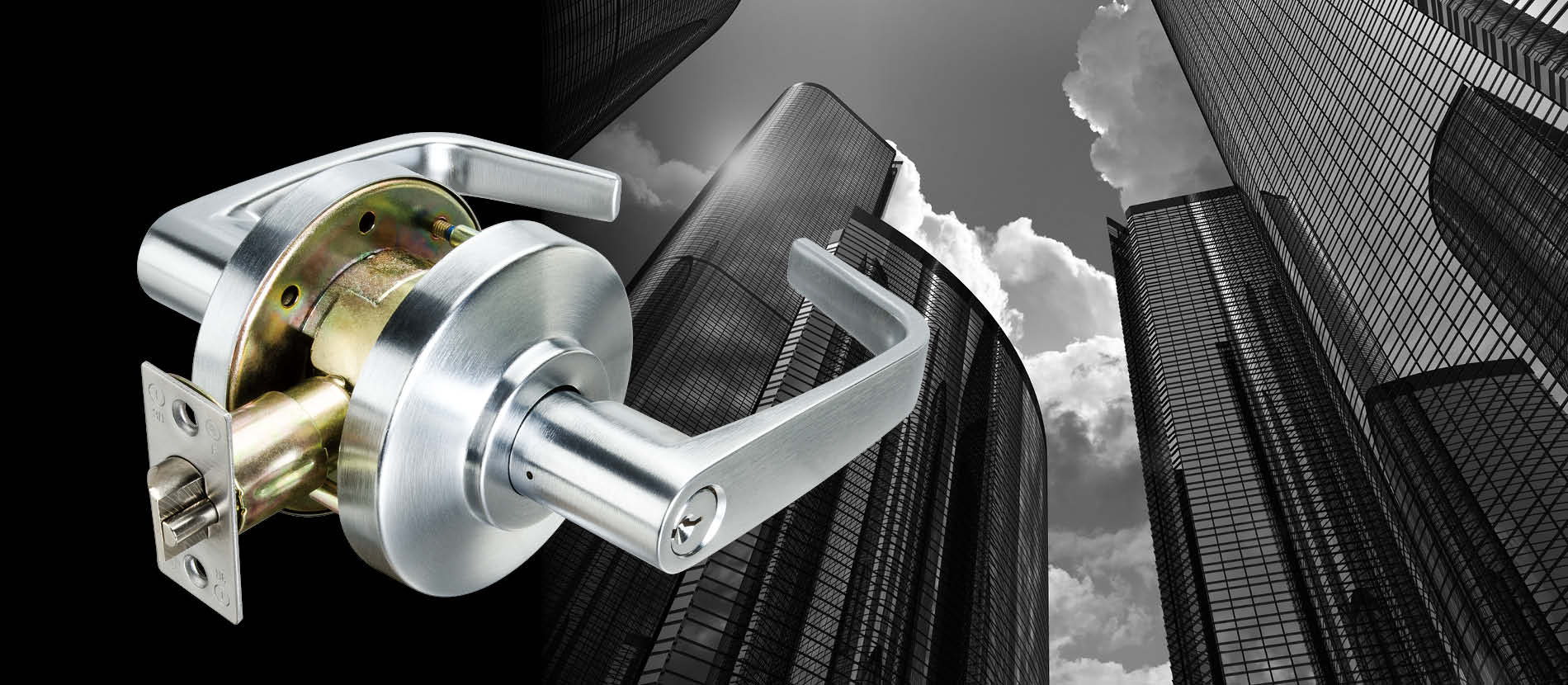

LI Series Cylindrical Lock

ANSI Grade 2 Heavy Duty

Concise and compact design for quick and easy installation, no unique or special tool is required.
Through-bolts mounting, inside rose liner with multi-angle screw holes suits either new or retrofitting existing installation without boring or drilling additional holes.
Threaded outside rose adjustable for door thickness without removing keyed lever.
Independent return springs in both side hubs provide extra resistance to lever sag.
Snap-on roses without exposed mounting screws.
Internal steel mechanisms are corrosion treated for normal atmospheric conditions.
Reversible for either hand of door.

Heavy duty commercial, institutional, governmental buildings and other public accommondations or private entities.

Certification / Compliance	UL listed for “A” label (3-hour) single swinging door (4′ x 8′). ANSI/BHMA A156.2, Series 4000 Grade 2.
Doors & Preparations	ANSI A115.2, through bolted installation.
Backset	2-3/4″ (70mm) standard, 2-3/8″ (60mm), 3-3/4″ (95mm) and 5″ (127mm) optional.
Door Thickness	1-3/8″ (35mm) ~ 2″ (51mm) wood or metal door.
Latchbolt	1/2″ (12.5mm) throw, UL listed, faceplate self-adjusted.
Handing	Non-handed.
Strike	ANSI strike standard, T-strike or Full lip strike optional.
Cylinder	6-pin “C” keyway standard, two keys per lock, compatible with Schlage^® original cylinder.
I/C Core	6 or 7-pin, compatible with Best^® and Falcon^® original cylinder.
Trim	Solid zinc diecast levers, wrought brass roses, concealed screws.
Master Keying	Can be masterkeyed or grand masterkeyed. Construction key systems available.
