HL Series Push/Pull Trim

ANSI Grade 1 Specialty Hardware

Open your doors, hands free.

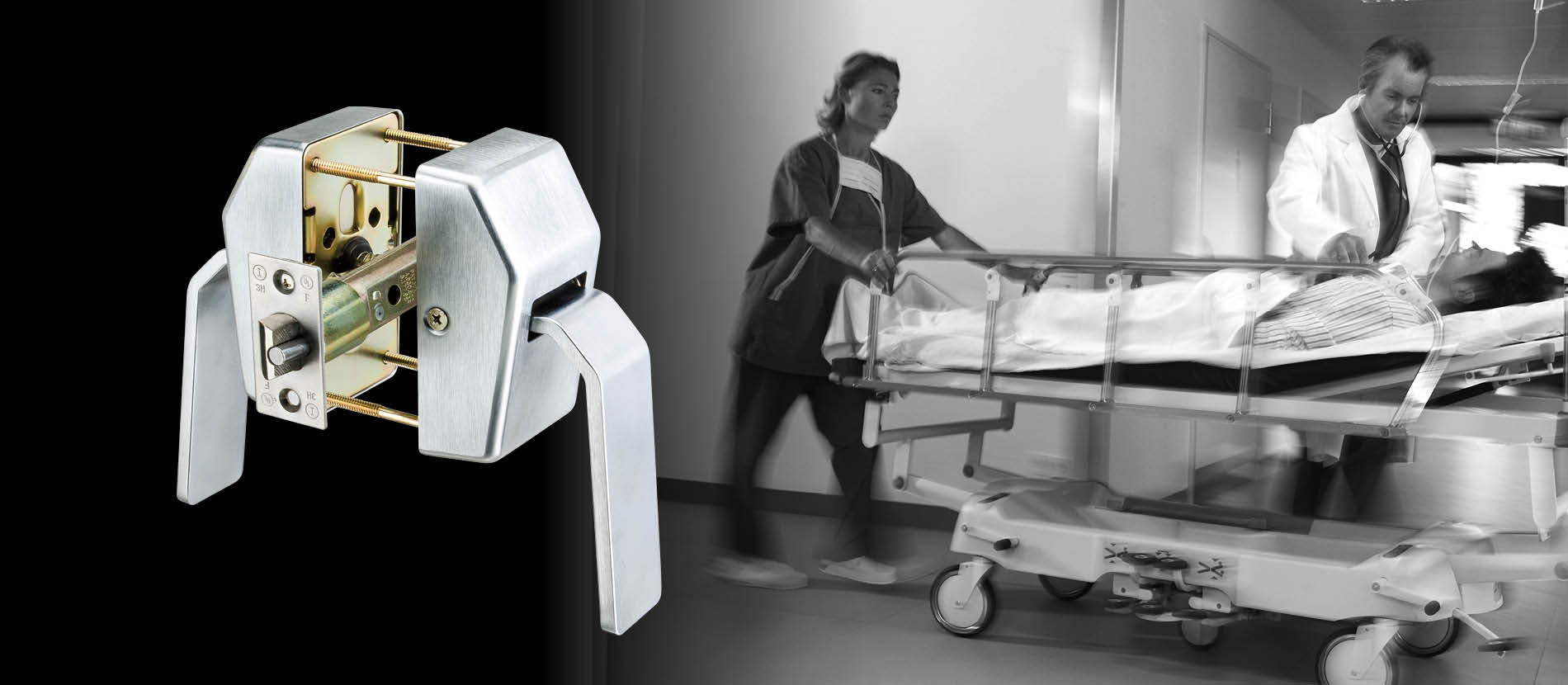

In certain applications, such as hospital rooms, hand contact with door handles is not an option, therefore turning doors into obstacles when making an ingress or egress. Klacci has developed the perfect solution for this kind of situations. The Push/Pull Trim offers an alternative yet convenient way to open doors. Its paddle-shaped handle is designed in such a way to eliminate the need for holding on the door handle to make it open. Simply push or pull with any part of your body and see how easy it is to open a door without your hands. 011

Features

  • Easy installation.
  • Through-bolts add stability.
  • UL fire rated.
  • Covers are made of stainless steel or brass.
  • Paddles are made of zinc alloy.
  • Can be applied on Cylindrical locks, Mortise locks or Exit Devices.

HL200 Push/Pull Trim

HL-200_Situation_pic02 HL_200_001
  • Field reversible; mounting position can be adjusted according to distinctive needs.
  • Conforms to ANSI/BHMA A156.2 Grade 2 Operational and Security.
  • UL Listed for 3-Hour fire rating.
  • Latch lengths of 2-3/8″, 2-3/4″ and 5″ available.
  • Suitable for door thickness ranges between 1-3/8″~2″ without changing or adding additional mounting screws.

Specifications

Door Range• 1-3/8″ (35 mm)~2″ (50.8 mm).
Backset• 2-3/8″ (60 mm), 2-3/4″ (70 mm), 5″ (127 mm).
Strike• Standard Strike (#B27 1.5 mm).
• ANSI Strike available (#D27).
Latch Face• Faceplates width 1″ or 1-1/8″
Certification• ANSI/BHMA A156.2 Grade 2 operational and security. UL Listed for 3-Hour fire rating.
Handing• Non-handed.
Spindle• Breakable to prevent the lock case from unlocking or being damaged.
Finishes• 605, 606, 611, 612, 613, 625, 626, 630.

Mounting Positions

HL_200_002

Strikes

Strikes_D27 Strikes_B27
D27 ANSI Strike 4-7/8″ x 1-1/4″ Lip Length 1-3/16″ B27 T-Strike 2-3/4″ x 1-1/8″ Lip Length 1-1/8″

HL400 Pull Trim

for Exit Devices

HL-400_pic03 HL_400_001
  • For application with existing Klacci 1400/F1400 Mortise Lock Exit Devices.
  • Conforms to ANSI/BHMA A156.3 Grade 1.
  • UL Listed for 3-Hour fire rating.
  • Ease of installation. Perfect door prep with same mounting screw hole positions that match those of the mortise lock case.
  • Pull trim available only.
  • HL400 is handed – specify when ordering.

Specifications

Door Range• 1-3/4″ (45 mm)~2-1/4″ (57 mm).
Backset• 2-3/4″ (70 mm) (used with 1400/F1400 Mortise Lock Exit Device).
Certification• ANSI/BHMA A156.3 Grade 1.
• UL Listed for 3-Hour fire rating.
Handing• Specify handing when ordering.
Spindle• Breakable to prevent the lock case from unlocking or being damaged.
Finishes• 605, 606, 611, 612, 613, 625, 626, 630.

Handing of doors

HL_400_002

Functions

Function Code Number Paddle orientation Mortise Cylinder Description

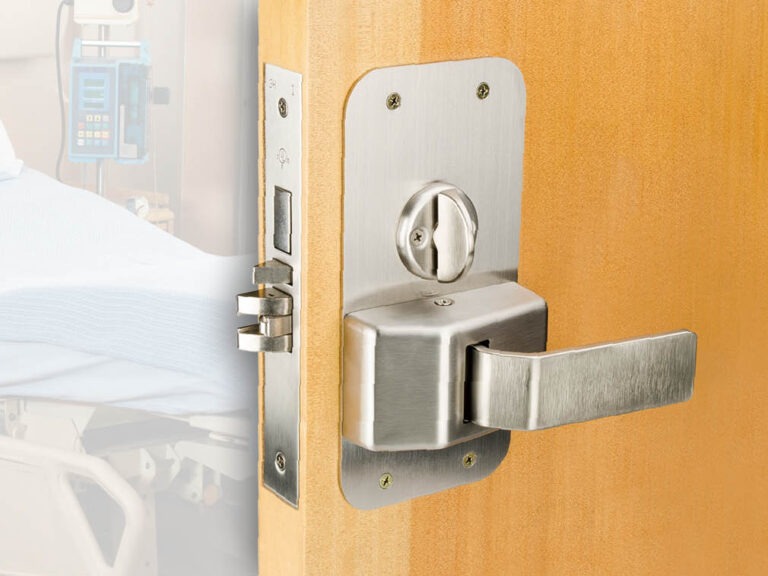

HL9000 Push/Pull Trim

for Mortise Locks

HL-600_Situation_pic02 HL_600_001
  • For application on Mortise Escutcheon and Mortise Sectional Locks.
  • Conforms to ANSI/BHMA A156.13 Grade 1.
  • UL Listed for 3-Hour fire rating.
  • Ease of installation. Perfect door prep with same mounting screw hole positions that match those of the mortise lock case.
  • Wide range of functions available to choose from.
  • Narrow and wide Escutcheon plate sizes plate available, conforms to ANSI A115.1.

Specifications

Door Range• 1-3/4″ (45 mm)~2-1/2″ (64 mm).
Backset• 2-3/4″ (70 mm) (used with M Series Mortise Locks).
Certification• ANSI/BHMA A156.13 Grade 1.
• UL Listed for 3-Hour fire rating.
Trim Handing• Non-handed.
Case Handing• Field reversible without removing case.
Spindle• Breakable to prevent the lock case from unlocking or being damaged.
Spacing• 3-5/8″ (92 mm) center cylinder to spindle. 2-2/16″ (62 mm) center thumbturn to spindle.
Case Size• 4-5/15″ x 6″ x 1″ (110 mm x 152 mm x 25 mm).
Deadbolt• 1″ (25 mm) throw, stainless steel.
Latchbolt• 3/4″ (19 mm) throw, with anti-friction tongue, all stainless steel.
Door Preparation• Conforms to ANSI A115.1.
Finishes• 605, 606, 611, 612, 613, 625, 626, 630.

Functions

Keyed Locks

Function Code Number Description ANSI/BHMA
Without Deadbolt
Function Code Number Description ANSI/BHMA
With Deadbolt
*Caution : Double cylinder locks on residences and any door in any structure which is used for egress are a life safety hazard in times of emergency and their use is not recommended. Installation should be in accordance with existing codes only.

Non-Keyed Locks

Function Code Number Description ANSI/BHMA
Without Deadbolt
Function Code Number Description ANSI/BHMA
With Deadbolt

Cylinders

We offer a full and complete line of spacer rings, cylinder guards and spring washers, as well as a wide selection of cam types to fulfill the requirements of most applications. Standard mortise cylinders are furnished in 5 or 6 pin configurations. Interchangeable core mortise cylinders are also available in 6 or 7 pin configurations, where increased security is achieved by quick change of keying.



Cylinder Length Variations

IllustrationFaceLength
1-1/8″1-1/4″1-3/8″1-1/2″1-5/8″1-3/4″1-7/8″
Cylinders Full-face StandardFull-face
Standard
441-102441-103441-104441-105441-106441-107441-108
Cylinders Concealed StandardConcealed
Standard
441-402441-403441-404441-405441-406441-407441-408
Cylinders Full-face IC CoredFull-face
I/C Core
N/A442-601442-701442-702N/AN/AN/A
Cylinders Concealed IC CoreConcealed
I/C Core
N/A442-801442-901442-902N/AN/AN/A



Cylinder Cam



Cylinder Guards

We offer two types of cylinder guards to work with sectional trim for different door ranges and various cylinder lengths. Specify part number when ordering.

4240-0201
4240-0201
4240-0202
4240-0202

















Plates

Armor front (Faceplates)

Made of brass, bronze or stainless steel, available with square corner or 1/4″ radius corner. Complete unit of armor front supplied with screws. Ordering info for ordering the armor front separately are listed below.

Square Corner
Square Corner

1/4" Radius Corner
1/4″ Radius
Corner

Square Corner1/4″ Radius CornerDescription
1-1/4″
(32mm)
Width
1-1/16″
(27mm)
Width
1-1/4″
(32mm)
Width
1-1/16″
(27mm)
Width
#528-711#528-731#528-721#528-741Latch x Aux. Latch x Deadbolt
#528-712#528-732#528-722#528-742Latch x Aux. Latch
#528-713#528-733#528-723#528-743Latch x Deadbolt
#528-714#528-734#528-724#528-744Latch
#528-715#528-735#528-725#528-745Blank
#528-716#528-736#528-726#528-746Deadbolt



StrikesDust box
Non-handed, made of brass, bronze or stainless steel.
Available with square corner or 1/4″ radius corner.
Dust box is made of steel,
provided at no additional cost.
Strikes_527-611
Square Corner
527-611
Strikes_527-631
1/4″ Radius Corner
527-631
Strikes_527-610
Square Corner
527-610
Strikes_527-630
1/4″ Radius Corner
527-630
Strikes_527-610
Dust box
552-312
