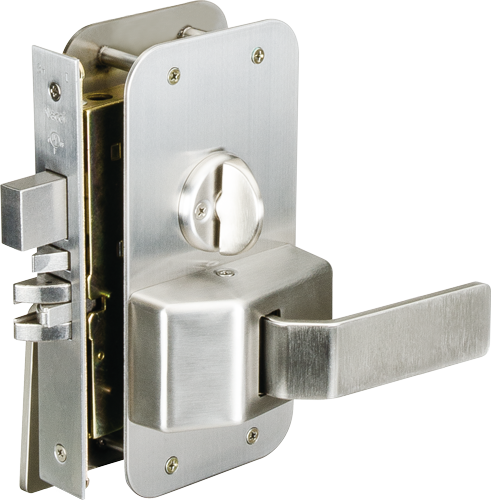

HL9000 Push/Pull Trim
for Mortise Locks
ANSI Grade 1 Specialty Hardware
- For application on Mortise Escutcheon and Mortise Sectional Locks.
- Conforms to ANSI/BHMA A156.13 Grade 1.
- UL Listed for 3-Hour fire rating.
- Ease of installation. Perfect door prep with same mounting screw hole positions that match those of the mortise lock case.
- Wide range of functions available to choose from.
- Narrow and wide Escutcheon plate sizes plate available, conforms to ANSI A115.1.
| Certification / Compliance |
|
| Doors & Preparations |
|
| Case Size |
|
| Backset |
|
| Door Range |
|
| Spacing |
|
| Deadbolt |
|
| Latchbolt |
|
| Trim Handing |
|
| Case Handing |
|
| Spindles |
|

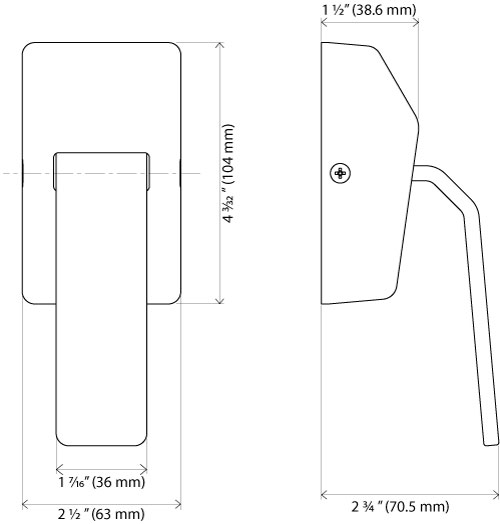

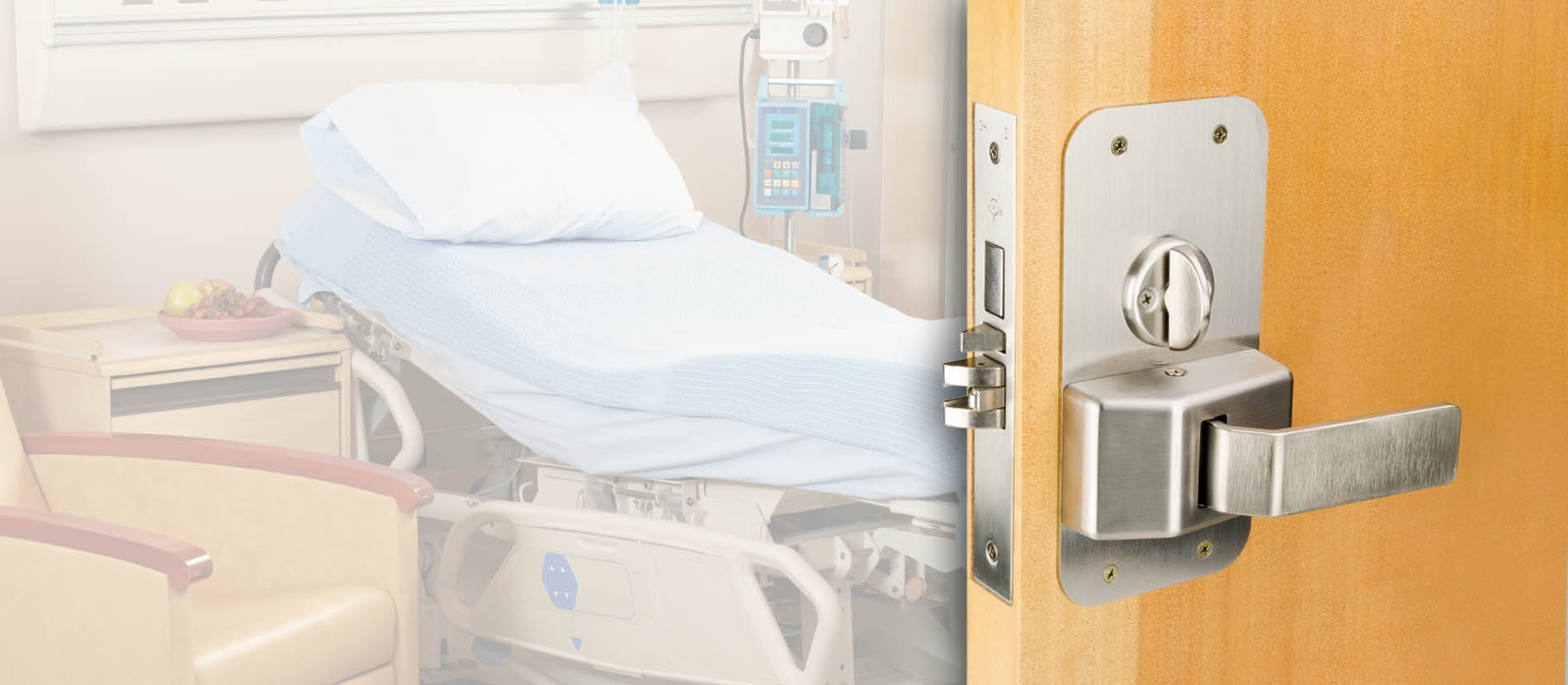

Push/Pull Trim

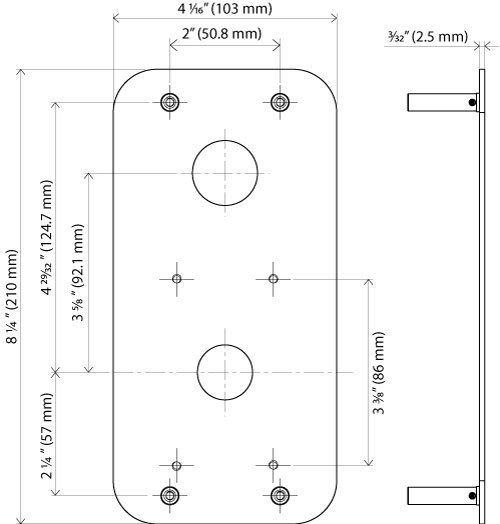

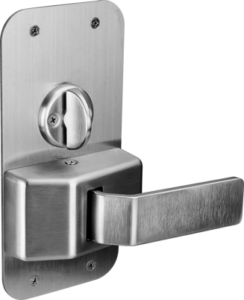

Escutcheon Plate

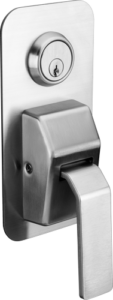

We offer a full and complete line of spacer rings, cylinder guards and spring washers, as well as a wide selection of cam types to fulfill the requirements of most applications. Standard mortise cylinders are furnished in 5 or 6 pin configurations. Interchangeable core mortise cylinders are also available in 6 or 7 pin configurations, where increased security is achieved by quick change of keying.
| Illustration | Face | Length | ||||||
| 1-1/8″ | 1-1/4″ | 1-3/8″ | 1-1/2″ | 1-1/2″ | 1-3/4″ | 1-7/8″ | ||
 | Full-face Standard | 441-102 | 441-103 | 441-103 | 441-103 | 441-106 | 441-106 | 441-108 |
 | Concealed Standard | 441-402 | 441-403 | 441-404 | 441-405 | 441-406 | 441-407 | 441-408 |
 | Full-face I/C Core | N/A | 442-601 | 442-701 | 442-702 | N/A | N/A | N/A |
 | Concealed I/C Core | N/A | 442-601 | 442-601 | 442-902 | N/A | N/A | N/A |
Additional cams are available for our mortise cylinder to operate in other manufacturers’ mortise locks.
 |  |  |  |  |  |  |  |
| 440-0702 | 440-0703 | 440-0704 | 440-0801 | 440-0705 | 440-0706 | 440-0708 | 440-0709 |
 |  |
| 4240-0201 | 4240-0202 |
 |  |
| Square Corner | 1/4″ Radius Corner |
| Square Corner | 1/4″ Radius Corner | Description | ||
| 1-1/4″ (32mm) width | 1-1/16″ (27mm) width | 1-1/4″ (32mm) width | 1-1/16″ (27mm) width | |
| 528-711 | 528-731 | 528-721 | 528-741 | Latch × Aux. Latch × Deadbolt |
| 528-712 | 528-732 | 528-722 | 528-742 | Latch × Aux. Latch |
| 528-713 | 528-733 | 528-723 | 528-743 | Latch × Deadbolt |
| 528-714 | 528-734 | 528-724 | 528-744 | Latch |
| 528-715 | 528-735 | 528-725 | 528-745 | Blank |
| 528-716 | 528-736 | 528-726 | 528-746 | Deadbolt |
| Function Code Number | Description | ANSI/BHMA |
|---|---|---|
| Without deadbolt | ||
A wide selection of finishes are available to match with your door and other hardware.
| Color | ANSI/BHMA | US | |
|---|---|---|---|
 | Polished Brass | 605 | 3 |
 | Satin Brass | 606 | 3 |
 | Polished Bronze | 611 | 9 |
 | Satin Bronze | 612 | 10 |
 | Dark Oxidized Satin Bronze | 613 | 10B |
 | Polished Chrome | 625 | 26 |
 | Satin Chrome | 626 | 26D |
 | Satin Stainless Steel | 630 | 32D |
