Klacci CR Series Door Coordinators

CR Series Door Coordinators

Klacci CR Series Door Coordinators Bar Coordinator CR-32

Patent No. 9,476,240 B1

Bar Coordinator

CR-32 / CR-42 / CR-52 / CR-60 / CR-72

Klacci’s CR Series Bar Coordinators offer a simple yet effective way of regulating double door entries. These products guarantee a correct order of door closing and prevent that any entry that is not properly closed may cause a safety concern in case of emergency.

Features
  • The lever mechanism on the active door side holds the active door open until a trigger mechanism releases it when the passive door closes.
  • An adjustable override mechanism allows the active door to close first in case that an excessive force is applied on it to protect the door as well as the coordinator from further damage.
  • These units are compatible with flush bolts, door closers and other double door hardware for a more complete application.
Certification/Compliance
  • Conforms to ANSI/BHMA A156.3 Type 21A (Grade 1).
  • UL/cUL Fire Rated for 3-Hour Fire Door Hardware, conforms to UL10C.
Bar Coordinator Length

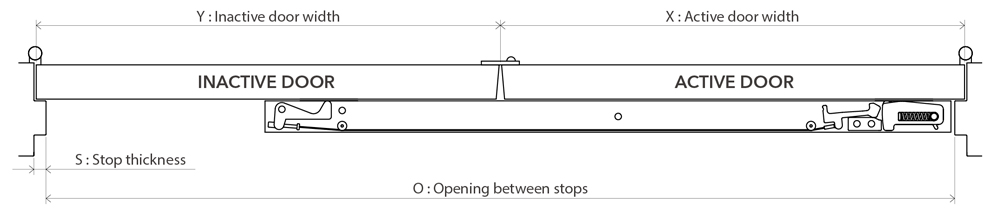

  • The bar coordinator standard length should be equal to the active door’s width (X) plus 1/2 the inactive door’s width (Y).
  • For cases where above condition cannot be met, the bar coordinator length must be at least 6″ (152.4 mm) longer than the active door width (X).
  • The bar coordinator length must not exceed the overall frame opening between stops (O).

Note: Standard stop thickness (S) is of 5/8″ (16 mm).

Klacci CR Series Door Coordinators Bar Coordinator CR-32 Bar Coordinator Length English

Examples:

  • Active door width (X): 42″ (1066.8 mm)
    Inactive door width (Y): 42″ (1066.8 mm)
    Recommended coordinator: CR-60
  • Active door width (X): 36″ (914.4 mm)
    Inactive door width (Y): 18″ (457.1 mm)
    Recommended coordinator: CR-42
Cutout Type Ordering Information

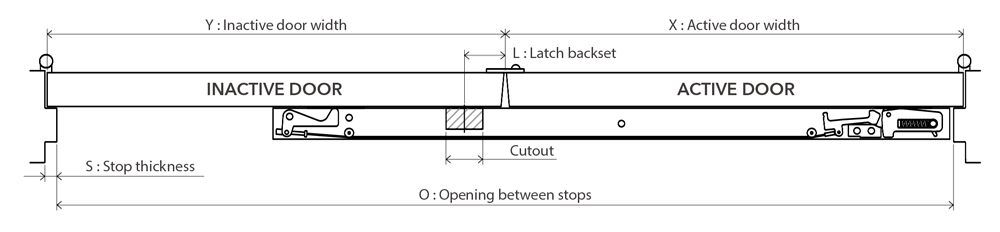

Bar coordinators may require an additional cutout in order to use with surface or concealed vertical rod exit devices. Please check the following chart for the type of cutout needed:

Cutout TypeDoor TypeExit Device ModelLatch backsetLatch TypeDoor application
A-TypeMetal doorFor Klacci:
1300/F1300
F2300
2-3/4″
(69.9mm)
Plunger ReleasePair of 30″ (762.0mm) Doors (For CR-42)
Pair of 36″ (914.4mm) Doors (For CR-52)
Pair of 42″ (1066.8mm) Doors (For CR-60)
Pair of 48″ (1219.2mm) Doors (For CR-72)
Pair of 56″ (1422.4mm) Doors (For CR-72)
Pair of 60″ (1524.0mm) Doors (For CR-72)
For VON DUPRIN:
98/9947
98/9948-F
33/3547
33/3548-F
B-TypeWood doorFor Klacci:
2300
1-5/16″
(33.3mm)
Plunger Release
For VON DUPRIN:
98/9947WDC
98/9947WDC-F
33/3547WDC
33/3547WDC-F
C-TypeMetal doorFor VON DUPRIN:
8847-F
5547-F
2-3/8″
(60.3mm)
Plunger Release Bracket
Note: No applicable cutout type for CR-32.

If the product model or door application is not listed on the chart or a different latch backset dimension is used, please provide the following information when ordering:

  1. Exit device’s product model and manufacturer’s template.
  2. Active door width (X)
  3. Inactive door width (Y)
  4. Latch backset (L)
  5. Stop thickness (S) if other than 5/8″ (15.9 mm)
  6. Opening between stops (O)
Klacci CR Series Door Coordinators Bar Coordinator CR-32 Bar Coordinator Length English
Material

Aluminum

Size
ModelLengthWidthHeight
CR-3232″ (812.8mm)1-5/8″ (41.3mm)5/8″ (15.9mm)
CR-4242″ (1066.8mm)1-5/8″ (41.3mm)5/8″ (15.9mm)
CR-5252″ (1320.8mm)1-5/8″ (41.3mm)5/8″ (15.9mm)
CR-6060″ (1524.0mm)1-5/8″ (41.3mm)5/8″ (15.9mm)
CR-7272″ (1828.8mm)1-5/8″ (41.3mm)5/8″ (15.9mm)
Finishes
ColorANSI/BHMAUS
Klacci finishes 628 Satin Aluminum, Clear AnodizedSatin Aluminum, Clear Anodized62828
Klacci finishes 707 Bright Brass AnodizedBright Brass Anodized7073
Klacci finishes 711 Flat Black AnodizedFlat Black Anodized71119
Klacci CR Series Door Coordinators Bar Coordinator CR-32

Filler Bar

FLB-20 / FLB-32 / FLB-48

Features

The filler bar can be used to fill the gap between the end of the bar coordinator and the inactive door’s stop for more pleasant aesthetics.

Ordering Information

The table below shows the standard matching between the bar coordinator and the filler bar.

If other lengths are required please specify before ordering.

Door WidthBar Coordinator ModelFiller Bar Model
Pair of 24″ (609.6mm) DoorsCR-32FLB-20
Pair of 30″ (762.0mm) DoorsCR-42FLB-20
Pair of 36″ (914.4mm) DoorsCR-52FLB-20
Pair of 42″ (1066.8mm) DoorsCR-60FLB-32
Pair of 48″ (1219.2mm) DoorsCR-72FLB-32
Pair of 56″ (1422.4mm) DoorsCR-72FLB-48
Pair of 60″ (1524.0mm) DoorsCR-72FLB-48
Material

Aluminum

Size
ModelLengthWidthHeight
CR-3232″ (812.8mm)1-5/8″ (41.3mm)5/8″ (15.9mm)
CR-4242″ (1066.8mm)1-5/8″ (41.3mm)5/8″ (15.9mm)
CR-5252″ (1320.8mm)1-5/8″ (41.3mm)5/8″ (15.9mm)
CR-6060″ (1524.0mm)1-5/8″ (41.3mm)5/8″ (15.9mm)
CR-7272″ (1828.8mm)1-5/8″ (41.3mm)5/8″ (15.9mm)
Finishes
ColorANSI/BHMAUS
Klacci finishes 628 Satin Aluminum, Clear AnodizedSatin Aluminum, Clear Anodized62828
Klacci finishes 707 Bright Brass AnodizedBright Brass Anodized7073
Klacci finishes 711 Flat Black AnodizedFlat Black Anodized71119
Klacci CR Series Door Coordinators Mounting Bracket MB-1F
MB-1F
Klacci_CR_Series_Door_Coordinators_Mounting_Bracket_MB-2F
MB-2F
Klacci_CR_Series_Door_Coordinators_Mounting_Bracket_MB-3F
MB-3F

Mounting Bracket

MB-1F / MB-2F / MB-3F

Features

The mounting bracket can be installed along with fire-rated hardware, such as parallel arm closers and surface vertical rod exit devices, used for stop mounted hardware to be properly installed without damaging the bar coordinator.

Note: Stop mounted hardware will need to be lowered to compensate for the height of the Bar Coordinator and Mounting Brackets.

Material

Steel

Size
ModelLengthWidthHeight
MB-1F4″ (101.6 mm)3″ (76.2 mm)1-5/8″ (41.3 mm)
MB-2F4″ (101.6 mm)4″ (101.6 mm)1-5/8″ (41.3 mm)
MB-3F4″ (101.6 mm)3-1/2″ (88.9 mm)1″ (25.4 mm)
Finishes
ColorANSI/BHMAUS
Klacci finishes 689 Aluminum PaintedAluminum Painted68928
Klacci finishes 600 Primed for PaintingPrimed for Painting600P
Klacci CR Series Door Coordinators Bar Coordinator CR-32

Patent No. 8,595,980 B1

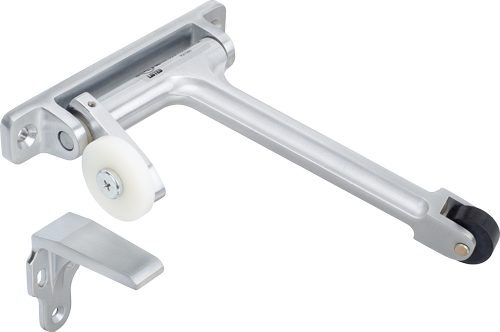

Gravity Coordinator

CR-07 / CR-09

Features
  • The gravity coordinator is applied on pair doors to allow the inactive door to close before the active door.
  • Nylon and rubber rollers provide quiet and efficient operation and help protect the doors from damage.
Certification/Compliance
  • Conforms to ANSI/BHMA A156.3 Type 21B (Grade 2).
  • UL/cUL Fire Rated for 3-Hour Fire Door Hardware, conforms to UL10C.
Astragal LocationWithout Carry Open BarWith Carry Open Bar
CR-07CR-09CR-07CR-09
A No Astragal1’6″ ~ 4’0″
(457.2mm ~
1219.2mm)
2’6″ ~ 4’0″
(762mm ~
1219.2mm)
1’6″ ~ 2’6″
(457.2mm ~
762mm)
2’6″ ~ 4’0″
(762mm ~
1219.2mm)
B Pull Side, Active Door (Standard)
C Push Side, Inactive Door1’6″ ~ 3’4″
(457.2mm ~
1016mm)
2’6″ ~ 4’0″
(762mm ~
1219.2mm)
N/AN/A
D B + C
Note: Astragal Overlap: 3/4″ (19.1mm) – Standard.
Material

Brass

Size
ModelProjection
CR-077″ (177.8mm)
CR-099″ (228.6mm)
Finishes
ColorANSI/BHMAUS
Klacci finishes 626 Satin ChromeSatin Chrome62626D
Klacci finishes 613 Dark Oxidized Satin BronzeDark Oxidized Satin Bronze61310B
Klacci CR Series Door Coordinators Bar Coordinator CR-32

Carry Open Bar

COB

Features
  • When the inactive door is opened, the carry open bar provides the automatic opening of the active door as well.
  • The carry open bar cannot be installed along with flush bolts.
  • Door coordinator accessory for fire-rated application.
Certification/Compliance
  • Conforms to ANSI/BHMA A156.3 Type 21 (Grade 1).
Material

Stainless Steel

Finishes
ColorANSI/BHMAUS
Klacci finishes 630 Satin Stainless SteelSatin Stainless Steel63032D
Klacci finishes 613 Dark Oxidized Satin BronzeDark Oxidized Satin Bronze61310B
