Klacci M Series Anti-ligature Solutions

M Series Anti-ligature Solutions

ANSI Grade 1 Extra Heavy Duty

When a safe environment is needed

A lock is thought to be safe when it prevents forced intrusion. But is that the only risk we may encounter?

In recent years, suicide rates have increased alarmingly, among which ligature strangulation is one of the most common cases of self-inflicted injury. This typically occurs in buildings such as detention centers, hospitals, mental health centers, where mere constant monitoring is insufficient to prevent disasters to happen.

Klacci’s Anti-ligature Solutions provide the perfect hardware to prevent ligature attachment and self-harm, thus ensuring a risk-free environment.

Features

M Series Anti-Ligature Solutions have been designed to meet the strictest of safety requirements that Health Facilities need.

Our conical lock designs with sloped surface prevent ligature attachment, thus providing a safer environment. Complying with ANSI/BHMA A156.13 testing standard requirements, the lever handle design includes a clutch function, increasing the lock’s durability as well as the overall safety.

Trim type can be chosen between Lever and Knob design. The application of thru-bolt fastening adds additional strength.

Surpassing the strictest of requirements

As part of the world-renowned I-TEK Company, Klacci has not only inherited the expertise of 50 years of lock manufacturing, but also the expectation to provide the highest quality products.

Klacci’s Anti-ligature Solutions have gone through meticulous designs and improvements, and have been tested and certified to ANSI/BHMA A156.13 and ADA compliance, offering quality guaranteed products to our customers.

When choosing Klacci, you may rest assured that your doors are safe and secure.


Certification / Compliance
  • ANSI/BHMA A156.13 Series 1000, Grade 1 operational and security.

  • UL Listed for 3-Hour fire rating.
Doors & Preparations
  • Conforms to ANSI A115.1, through bolted installation.
Case Size
  • 4-5/16″ x 6″ x 1″ (110mm x 152mm x 25mm).
Armor front
  • 1-1/4″ x 8″ x 7/32″ (32mm x 203mm x 5mm) Standard, 1-1/16″ x 8″ x 7/32″ (27mm x 203mm x 5mm) optional.
Backset
  • 2-3/4″ (70mm) only.
Door Range
  • 1-3/8″ (35mm) ~ 2-1/2″ (64mm) metal door.

  • 1-3/4″ (45mm) ~ 2-1/2″ (64mm) wood door.
Beveled Doors
  • Self-adjusting case.
Spacing
  • 3-5/8″ (92mm) center cylinder to spindle. 2-7/16″ (62mm) center thumbturn to spindle.
  • 98 mm available upon request.
Deadbolt
  • 1″ (25mm) throw, stainless steel.
Latchbolt
  • 3/4″ (19mm) throw, with anti-friction tongue, all stainless steel.
Deadlocking Bar
  • Non-handed, stainless steel.
Case Handing
  • Field reversible without removing case.
Through Bolts
  • Through-bolted trim self-aligned with lock case.
Strikes
  • Curved lip is non-handed. Custom lip lengths at 1/8″ (3mm) increments available.
Spindles
  • Breakable to prevent the lock case from unlocking or being damaged.
Cylinder
  • 6-pin standard, with two nickel silver keys, “C” keyway. Can be masterkeyed or grand masterkeyed. Construction key system available.
I/C Core
  • 6 or 7-pin. Compatible with Best® and Falcon® original cylinder.
Fasteners
  • Concealed under the escutcheon.
Function Code NumberDescription ANSI/BHMA
Without Deadbolt
  • Caution : Double cylinder locks on residences and any door in any structure which is used for egress are a life safety hazard in times of emergency and their use is not recommended. Installation should be in accordance with existing codes only.
Function Code NumberDescription ANSI/BHMA
With Deadbolt
  • Caution : Double cylinder locks on residences and any door in any structure which is used for egress are a life safety hazard in times of emergency and their use is not recommended. Installation should be in accordance with existing codes only.

Made of brass or stainless steel, these trims are designed with elegance. The sloped profile prevents ligature attachment on the horizontal surface. Lever or knob handle options are available in standard or clutch (free turning) functions.

An optional anti-microbial coating can be applied. Specially formulated to prevent bacterial growth on door handle surface. Suitable for high-traffic applications in high-sanitary demanding locations. To order, add prefix AC.

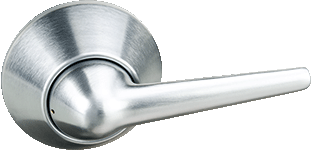

Klacci M Series Anti-ligature Solutions ALT Lever TrimKlacci M Series Anti-ligature Solutions ALTB Knob Trim
ALT LeverALTB Knob
Klacci M Series Anti-ligature Solutions TurnKlacci M Series Anti-ligature Solutions Cylinder Guard
TurnCylinder Guard

We offer a full and complete line of spacer rings, cylinder guards and spring washers, as well as a wide selection of cam types to fulfill the requirements of most applications. Standard mortise cylinders are furnished in 5 or 6 pin configurations. Interchangeable core mortise cylinders are also available in 6 or 7 pin configurations, where increased security is achieved by quick change of keying.

IllustrationFaceLength
1-1/8″1-1/4″1-3/8″1-1/2″1-1/2″1-3/4″1-7/8″
Klacci Mortise Lock Cylinder Full-face StandardFull-face
Standard
441-102441-103441-103441-103441-106441-106441-108
Klacci Mortise Lock Cylinder Concealed StandardConcealed
Standard
441-402441-403441-404441-405441-406441-407441-408
Klacci Mortise Lock Cylinder Full-face Interchangeable coreFull-face
I/C Core
N/A442-601442-701442-702N/AN/AN/A
Klacci Mortise Lock Cylinder Concealed Interchangeable coreConcealed
I/C Core
N/A442-601442-601442-902N/AN/AN/A

Additional cams are available for our mortise cylinder to operate in other manufacturers’ mortise locks.

Klacci ANSI Grade 1 Mortise Lock Cylinder Cam 440-0702Klacci ANSI Grade 1 Mortise Lock Cylinder Cam 440-0703Klacci ANSI Grade 1 Mortise Lock Cylinder Cam 440-0704Klacci ANSI Grade 1 Mortise Lock Cylinder Cam 440-0801Klacci ANSI Grade 1 Mortise Lock Cylinder Cam 440-0705Klacci ANSI Grade 1 Mortise Lock Cylinder Cam 440-0706Klacci ANSI Grade 1 Mortise Lock Cylinder Cam 440-0708Klacci ANSI Grade 1 Mortise Lock Cylinder Cam 440-0709
440-0702440-0703440-0704440-0801440-0705440-0706440-0708440-0709

We offer two types of cylinder guards to work with sectional trim for different door ranges and various cylinder lengths. Specify part number when ordering.

Klacci Mortise Lock Armor Front (Faceplates) Square Corner

Square Corner

Klacci Mortise Lock Armor Front (Faceplates) Square Corner

1/4″ Radius Corner

Square Corner1/4″ Radius CornerDescription
1-1/4″
(32mm)
width
1-1/16″
(27mm)
width
1-1/4″
(32mm)
width
1-1/16″
(27mm)
width
528-711528-731528-721528-741Latch × Aux. Latch × Deadbolt
528-712528-732528-722528-742Latch × Aux. Latch
528-713528-733528-723528-743Latch × Deadbolt
528-714528-734528-724528-744Latch
528-715528-735528-725528-745Blank
528-716528-736528-726528-746Deadbolt

Non-handed, made of brass, bronze or stainless steel. Available with square corner or 1/4″ radius corner.

Klacci Mortise Lock Strikes 527-611 Square Corner

527-611

Square Corner

Klacci Mortise Lock Strikes 527-611 Square Corner

527-631

1/4″ Radius Corner

Klacci Mortise Lock Strikes 527-611 Square Corner

527-610

Square Corner

Klacci Mortise Lock Strikes 527-611 Square Corner

527-630

1/4″ Radius Corner

Dust box is made of steel, provided at no additional cost.

Klacci Mortise Lock Strikes 527-611 Square Corner

552-312

Dust box

ColorANSI/BHMAUS
Klacci finishes 605 Polished BrassPolished Brass6053
Klacci finishes 606 Satin BrassSatin Brass6063
Klacci finishes 611 Polished BronzePolished Bronze6119
Klacci finishes 612 Satin BronzeSatin Bronze61210
Klacci finishes 613 Dark Oxidized Satin BronzeDark Oxidized Satin Bronze61310B
Klacci finishes 625 Polished ChromePolished Chrome62526
Klacci finishes 626 Satin ChromeSatin Chrome62626D
Klacci finishes 630 Satin Stainless SteelSatin Stainless Steel63032D
