Klacci LF Series Cylindrical Lock

LF Series Cylindrical Lock

ANSI Grade 1 Extra Heavy Duty

Improved designs, Improved performance

Klacci puts product quality as a priority and continuously seeks ways to improve their product performance. This product has been designed, tested and verified with the goal of not only conforming to the strict requirements of ANSI/BHMA A156.2, but exceed them. Klacci is proud to present you with a product that surpasses all limits.

The LF Series cylindrical locks have been designed using advanced design concepts and the most rigorous of testings, taking product quality to a whole new level of performance and durability.

New features

  • Improved Chassis Hubs add overall Strength.
  • Spring catridge prevents lever sagging.
  • Spindle provides durability.
  • Exceeds by more than twice the minimum cycle requirements described in ANSI/BHMA A156.2.
  • Chassis compatible with 3 types of lever: Standard, SFIC, FSIC.
  • One-step and Two-step Rose designs available to choose from.


  • Heat treated heavy gauge cold rolled steel spindles have outstanding torque resistance.
  • Easy to install, with no special tools required.
  • Can retrofit into existing door preparation for most manufacturers.
  • Suitable for 1-3/8″ ~ 2″ door thickness ranges. For customized thickness, please consult factory.
  • Compatible with electric (solenoid) functions.

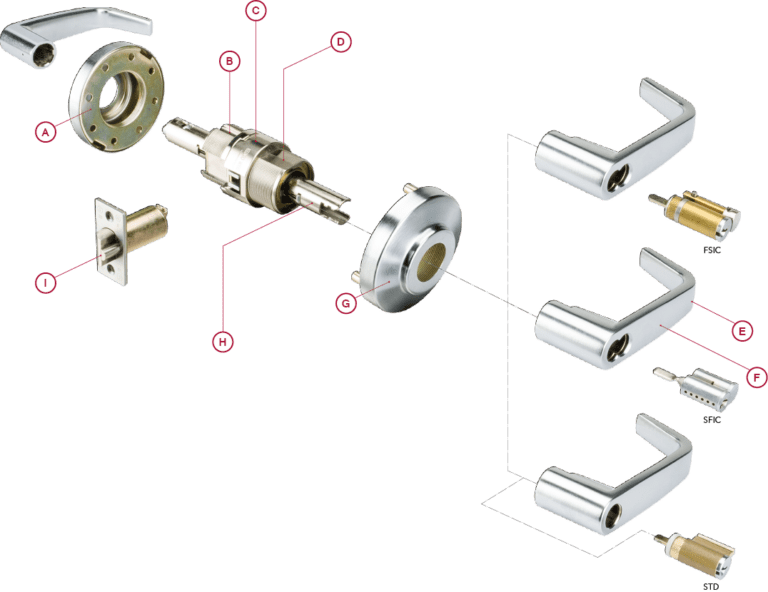

Klacci LF Series Cylindrical Lever Lock Features

Heavier rose liners material provides more attack resistance.

The chassis is designed to resist forcible entry attempts; it exceeds Grade 1 abusive load without showing signs of breakage.

The outside and inside hubs provide increased wear resistance against spindle.

The spring cartridge inside the hub adds stability to the lever, effectively prevents the lever from sagging over high traffic usage.

Standard clutch feature provides protection against abusive conditions.

Special handle options such as Knurled Lever or Anti-microbial Coating available.

Threaded outside rose assembly adjustable for door thickness without removing keyed lever.

Spindle design provides outstanding performance and durability which is reflected in the product’s long life cycle. Furthermore, its design allows the simultaneous application of FSIC, SFIC and STD cylinders, which provides a versatile application range.

Latchbolt designed with a smooth curved surface, thus reducing friction.

Quality assurance

The LF Series Cylindrical Locks are produced by I-TEK Company in Taiwan under ISO 9001 quality management, which is system certified by Underwriter Laboratories. I-TEK’s test facility complies with ISO17025 and it is certified by Intertek under a continuous re-inspection program.

Furthermore, Klacci is a registered member of Builders Hardware Manufacturers Association (BHMA), as well as continuously ensuring that we follow up-to-date ANSI Standards with rigorous inspections by Intertek and Underwriter Laboratories. Our aim is to make our customers feel secure in the knowledge that high-quality products are provided.

Certification / Compliance
  • UL listed for “A” label (3 hours) single swinging door (4’x8′).
Doors & Preparations
  • ANSI A115.2, through bolted installation.
  • 2-3/4″ (70mm) standard, 2-3/8″ (60mm), 3-3/4″ (95mm) and 5″ (127mm) optional.
Door Thickness
  • Standard 1-1/2″ (38mm) ~ 2″ (50.8mm) wood or metal door.

  • 2-1/4″, 2-1/2″ and 3″ are customizable.
  • 1/2″ (12.5mm) throw, UL listed, faceplate self-adjusted, 3/4″ (19mm) throw fire door deadlatch available.
  • Non-handed.
  • ANSI strike standard, T-strike or Full lip strike optional.
  • 6-pin “C” keyway standard, nickel silver keys, compatible with Schlage® original cylinder.
I/C Core
  • SFIC: 6 or 7-pin, compatible with Best® and Falcon® original cylinder.

  • FSIC: 6-pin, compatible with Schlage® original cylinder.
  • Solid zinc diecast levers, wrought brass roses, concealed screws.
Master Keying
  • Can be masterkeyed or grand masterkeyed. Construction key systems available.
Function Code NumberDescription ANSI/BHMA
Mechanical functions
Function Code NumberDescription ANSI/BHMA
Electrical functions

A wide selection of finishes are available to match with your door and other hardware.

Klacci finishes 605 Polished BrassPolished Brass6053
Klacci finishes 606 Satin BrassSatin Brass6063
Klacci finishes 611 Polished BronzePolished Bronze6119
Klacci finishes 612 Satin BronzeSatin Bronze61210
Klacci finishes 613 Dark Oxidized Satin BronzeDark Oxidized Satin Bronze61310B
Klacci finishes 625 Polished ChromePolished Chrome62526
Klacci finishes 626 Satin ChromeSatin Chrome62626D
Klacci finishes 630 Satin Stainless SteelSatin Stainless Steel63032D


Made of high-quality zinc alloy and available in wide range of finishes.

Klacci ANSI Grade 1 Cylindrical Lock D type Lever TrimKlacci ANSI Grade 1 Cylindrical Lock Q type Lever TrimKlacci ANSI Grade 1 Cylindrical Lock A type Lever Trim

Anti-microbial Coating

An optional Anti-microbial coating can be applied. Specially formulated to prevent bacterial growth on door handle surface. Suitable for high-traffic applications in high-sanitary demanding locations. To order, add prefix AC.

Knurled Lever

Grooves are machined onto the outer lever for an improved grip. Sensory warning for blindness or other safety applications in hazardous area.

To order, add prefix KL.

Klacci Cylindrical Lock Strikes D27 ANSI StrikKlacci Cylindrical Lock Strikes CR27 Full Lip 1/4" Radius Corner StrikeKlacci Cylindrical Lock Strikes B27 T-Strike
ANSI Strike

4-7/8″ × 1-1/4″
Lip length 1-3/16″

2-3/4″ × 1-1/8″
Lip length 1-1/8″
Full Lip 1/4″ Radius Corner Strike

2-1/4″ × 1-3/4″
Lip length 1-3/16″

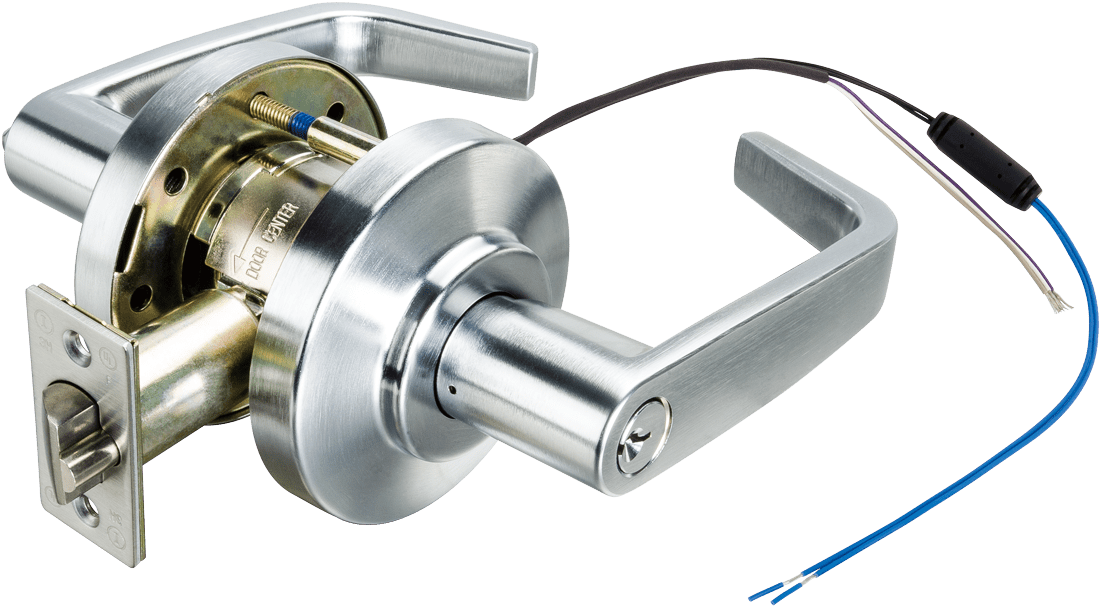

Klacci LF Series Electrical Cylindrical Lever Lock

LF Series cylindrical locks are also available for electrified options for access control systems in high-security applications.


RX – Request to Exit

The RX feature is used to signal the use of an opening. Equipped with one internal SPDT switch which monitors the turning of the lever. The device can be connected to a security console or may be used as a single door alarm when used with a horn and power supply.

EL – Electrically Locked (Fail Safe)

Fail Safe locks require power to lock. In the event of a power outage the door will automatically unlock, thus ensuring a safe egress during emergency situations.

EU – Electrically Unlocked (Fail Secure)

Fail Secure locks require power to unlock. In the event of a power outage the door will automatically lock, thus preventing access and protecting all assets within it.

The use of this feature is not permitted on fire doors.

Electrical requirements

Electrified functions – EU and EL
  • 24 Volts AC/DC +/- 10% Operating current 0.145 Amp.
  • 12 Volts AC/DC +/- 10% Operating current 0.293 Amp.
  • All solenoids are continuous duty type.
  • White heat shrinkable tubings on solenoid leads designates 12 volt.
RX Functions
  • Voltage 250 VAC.
  • Current rating 1 Amp.
  • Wire leads 22 Awg.

The 3-wire utilizes a UL recognized SPDT switch providing a choice of:

  • For normally closed operation use the white (COM.) and gray wires.
  • For normally open operation use the white (COM.) and purple wires.
