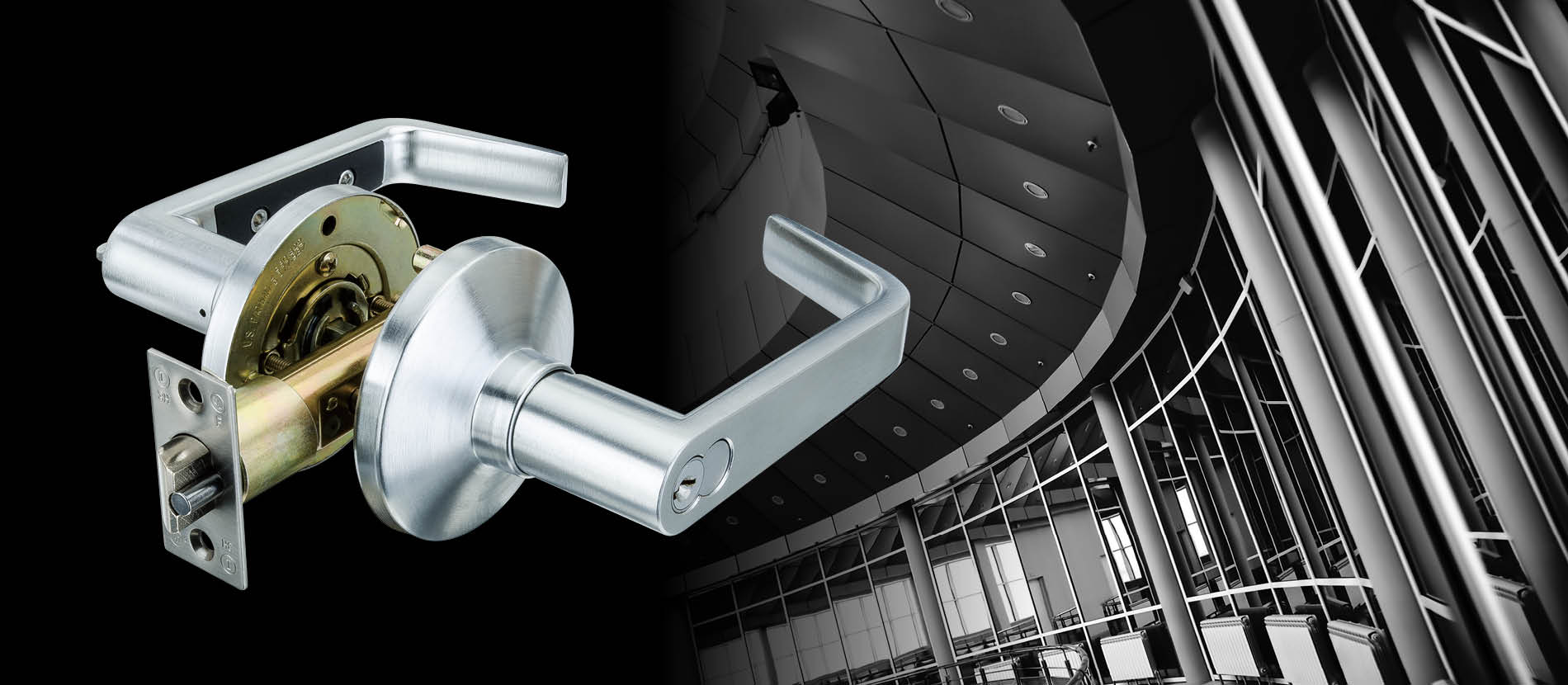

Klacci LE Series Tubular Lock office building

LE Series Tubular Lock

ANSI Grade 2 Heavy Duty

LE Series is a heavy duty, tubular design keyed leverlock, engineered with a unique feature of maximum 45° rotation of the lever, which fully retracts the latch bolt, this offers the advantage of easy operation especially for the elderly or physically disabled. Other construction features offer faster, easier installation, dependability and security, available in a wide variety of finishes and functions. Made to comply with the requirement of “American with Disability Act (ADA Law)” and ANSI A156.2 Series 40000, Grade 2.

Heavy duty commercial, institutional, governmental buildings and other public accommondations or private entities as defined by the ADA law.

Certification / Compliance
  • UL listed for “A” label (3-hour) single swinging door (4′ x 8′).

  • ANSI/BHMA A156.2 Series 4000 Grade 2.
Doors & Preparations
  • 2-1/8″ cross bore, 1″ edge bore. Mortise for anchors on both sides of 2-1/8″ bore hole and drill two 5/16″ dia. x 1/2″ deep holes on vertical center line for mountiong studs. (Stud bolts removable from lock if used on hollow metal door).
Backset
  • 2-3/4″ (70mm) standard.
Door Thickness
  • 1-3/8″ (35mm) ~ 2″ (51mm) wood or metal door.
Latchbolt
  • 1/2″ (12.5mm) throw, UL listed, faceplate self-adjusted.

  • Faceplate sizes 2-1/4″ × 1-1/8″ (57.2mm × 28.6mm).
Handing
  • Non-handed.
Strike
  • 2-3/4″ × 1-1/8″ (70mm × 28.6mm) with curved lip standard, ANSI 4-7/8″ × 1-1/4″ (123.8mm × 31.8mm) with curved lip optional.
Lever Length
  • 5-3/8″ with maximum 1/2″ return, meets all fire and handicap codes.
Exopsed Trim
  • Levers are zinc based plated to match BHMA finish designations, all other parts are made of brass, bronze or stainless steel.
Mechanism
  • Heavy gauge cold rolled steel, hardened to reinforce strength, zinc plated and dichromated for rust resistance.
ColorANSI/BHMAUS
Klacci finishes 605 Polished BrassPolished Brass6053
Klacci finishes 606 Satin BrassSatin Brass6063
Klacci finishes 611 Polished BronzePolished Bronze6119
Klacci finishes 612 Satin BronzeSatin Bronze61210
Klacci finishes 613 Dark Oxidized Satin BronzeDark Oxidized Satin Bronze61310B
Klacci finishes 625 Polished ChromePolished Chrome62526
Klacci finishes 626 Satin ChromeSatin Chrome62626D
Klacci finishes 630 Satin Stainless SteelSatin Stainless Steel63032D
