2000 Series Narrow Head Exit Devices
ANSI Grade 1 Extra Heavy Duty
The Product
2000 Series Narrow Head Exit Devices and Trims are designed for new or retrofit installation into other manufacturers’ devices. Push Bar assembly’s smooth and reduced projection minimizes catch hazard. Device function is field selectable by adaptation with selected type of trim. A full complement of lever trim is available in wide range of architectural finishes.
The ANSI/BHMA A156.3-2014 Grade 1
Inherits from the excellent quality and performance of Klacci, the 2000 Series Narrow Head Exit Device is certified to meet ANSI/UL305 and the ANSI/BHMA A156.3-2014 Grade 1 cycle test requirement. Other than the already rigorous testing standard, the latch needs to withstand a 20 lbs weight loading to it in the cycle test to make sure it stays latched during any viciousness attempts. Devices and trims are also UL/cUL listed for panic hardware or fire-rated hardware. 2000 Series provides superior durability for high impact applications such as offices, schools, banks, assisted living facilities and other institutions or commercial buildings.
A gentle push for more convenient accessibility
Less Than 5 lbs of Push Force to Exit
- The push bar requires only 5 lbs, or less of force to retract the latch.
- Operable with one hand without the need of using robust force.
- Meets the 2010 ADA Standards 11B-309.4 and California Building Code 11B-309.4 operation.
- Complies to the new ANSI/BHMA A156.3-2014 Grade 1 cycle test requirement for a net 20 to 22 lbf of load applied on the latch during testing.
- Specify one for all your needs – panic or fire rated doors, high traffic exits, full accessibility areas.
Strength is Not the only Option, Exit Control Can Be Gentle
Without compromising any strength and durability of the Klacci 1000 Series exit device, the accessible Rim Exit Device can be operated with 5 lbs of push force. Not only it meets the requirements of the 2010 ADA Standards and California Building Code 11B, the accessible rim exit devices are most suitable for accessibility demand from hospitals or health care centers.
The Exit Device for Anyone, Any Places
The accessible Rim Exit Device makes sure the exit can be operable with the least amount of force, while keeping the maximum strength. No one should be exempted from evacuation when it happens. Simply the choice of safety and security.
When Sequence Orders Matter
We all know one comes before two in numbers, safety comes ahead of convenience. Klacci’s CR Series Bar Coordinators offer a simple yet effective way of regulating double door entries. These products guarantee a correct order of door closing and prevent that any entry that is not properly closed may cause a safety concern in case of emergency.
Electrical Exit Devices
Features
The 2000 Series Narrow Head Exit Devices are fabricated and blended with simplicity, strength, durability, aesthetics and installer-friendly innovations.
- Devices and trims are designed for new or retrofit installation into other manufacturers’ exit devices and trims.
- Made to comply with the highest safety and security standards in industry.
- UL/cUL listed for panic hardware or 3-hour Fire Rated Exit Hardware.
- Certified to ANSI/UL305 and ANSI/BHMA A156.3-2014 Grade 1.
Special plastic inserts and rubber bumpers reduce noise and don’t fail under high or low temperatures. Impervious to petroleum lubricants.
Detachable center case allows switching between mechanical and electrical options which replaces the need of buying two complete sets.
Center case with maximum versatility, Surface and concealed vertical rods can be adjusted inside the center case with an ingenious rod holder design.
Cross spindle offers additional strength.
Replaceable cam breaks at a predetermined load to prevent further damage of the trim mechanism. Handing change is simple and easy, just remove screw and cam from mechanism and rotate lever to desired position, then replace cam and fasten the screw.
Center Case mounting plate made of heavy gauge steel adding extra strength.
Stainless steel latch and deadlatching blade add perceived value.
Stamped Center Case Cover made with any commercial finishes, fits minimum 2″ stile.
Steel die cast rocker arm designed for heavy loads.
Push bar is smoothly surfaced. Light force applied to the push bar can release the latch. Accessible version is also available to meet the 2010 ADA Standards and Accessible Design to operate the device with 5 lbs of force.
Integrated end cap reduced projection minimizes catch hazard and add stability to the push bar to move smoothly regardless of where the pressure is applied on push bar.
Dogging can be done with an allen wrench, a small flat key or a flat blade screwdriver.
Device Options
Details

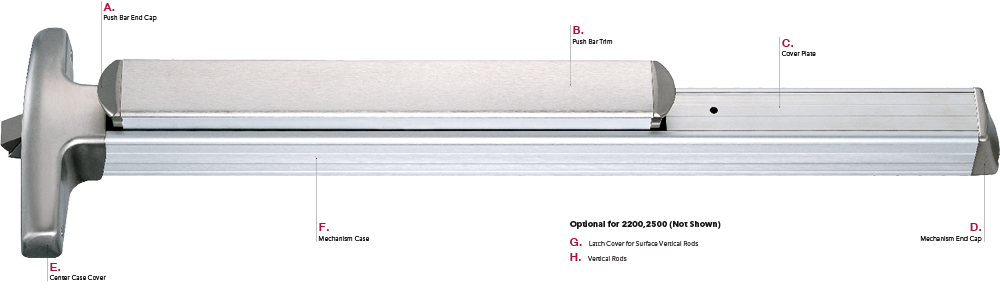

General Overview
Device Material
2000 Series is furnished standard with grooved case. Smooth surface style is available. The two styles are mechanically and dimensionally identical and come with a wide selection of finishes.
Finishes
 | ||||||
| Color | ANSI/BHMA | US | B.E.G. | A.D. | C.F.H. | |
 | Polished Brass | 605 | 3 | Brass, Polished | Plated | Buffed Anodized |
 | Satin Brass | 606 | 4 | Brass, Satin | Plated | Anodized |
 | Polished Bronze | 611 | 9 | Bronze, Polished | Plated | Buffed Anodized |
 | Satin Bronze | 612 | 10 | Bronze, Satin | Plated | Anodized |
 | Dark Oxidized Satin Bronze | 613 | 10B | Bronze, Satin; Dark Oxidized | Plated | Anodized |
 | Polished Chrome | 625 | 26 | Brass, Polished & Plated | Plated | Buffed Anodized |
 | Satin Chrome | 626 | 26D | Brass, Satin & Plated | Plated | Anodized |
 | Satin Stainless Steel | 630 | 32D | St. Steel, Satin | Plated | Anodized |
Push Bar Trim Options
- Embossed “PUSH”
- Braille, embossed “CAUTION STAIRWELL”
- Red silk screen lettered “EMERGENCY EXIT ONLY – PUSH TO OPEN & SOUND ALARM”
Mechanism Case Options
 Smooth |  Grooved |
Functions
| ANSI/ BHMA | Operation | Trim Option | |
| 400 Series Pull Trim | 500 Series Escutcheon | ||
| 01 | Exit Only | 401 | N |

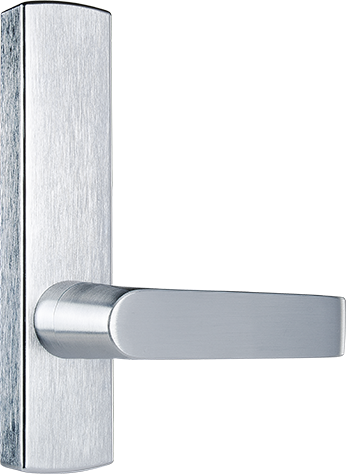

| 02 | Dummy Pull Only | 402 | 502 |
| 03 | Night Latch, Key Retracts Latchbolt | 403R | 503R |
| 08 | Key Locks or Unlocks Latchbolt | N | 508M |

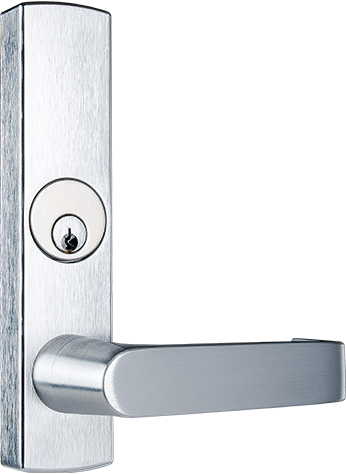

| 09 | Night Latch, Key Retracts Latchbolt | N | 509R |

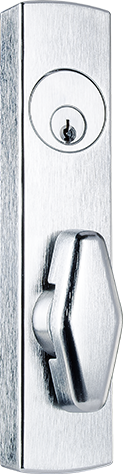

| 11 | Key Locks or Unlocks Latchbolt | N | 511M |

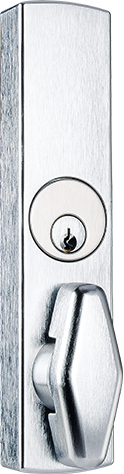

| 12 | Night Latch, Key Retracts Latchbolt | N | 512R |
| 14 | Lever Always Active, No Cylinder | N | 514 |

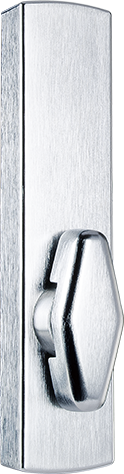

| 16 | Turn Always Active, No Cylinder | N | 516 |
Trim Operation Options
 |  |
| 400 Series Pull Trim | 500 Series Escutcheon |
 |  | |
| Plate | Pull Only | With Rim Cylinder |
400 Series Pull Trim
Features
- Trims are furnished with wrought plate and extruded or with cast solid grips
- Trims are designed to retrofit into other manufacturers’ devices.
- Trims are UL/cUL certified for ANSI/BHMA A156.3-2014 Grade 1 and 3-hour Fire Rated.
- Trims are through bolted. (“GD” grip furnished standard, unless specified).
- Specify handing when ordering.
| ANSI/BHMA | 01 | 02 | 03 |
|---|---|---|---|
| | | |
| Operation | Exit Only | Dummy Pull Only | Night Latch, Key Retracts Latchbolt |
| Trim No. | 401 | 402 | 403R |
| Device No. | 2100 | 2100 | 2100 |
| 2105 | 2105 | 2105 | |
| 2200 | 2200 | 2200 | |
| 2300 | 2300 | 2300 | |
| 2500 | 2500 | 2500 | |
| Cylinder Type | RIM | ||
| Specify Handing* | Y | Y | Y |
Lever / Grip Options
| Grip Options | |
|---|---|
 |  |
| GD type (Standard) | GK type |
500 Series Escutcheon
 | |  |
| Dummy Trim | Blank Escutcheon | Night Latch |
| Lever rigid for pull operation (For 02 function) | Lever always active (For 14 function) | Key retracts latchbolt. Lever is rigid (For 09, 12 function) |
Features
- Escutcheon and lever with sleek and seamless design produced by casting or forging.
- Trims are designed to retrofit into other manufacturers’ devices.
- Handing field reversible.
- Trims are UL/cUL certified for ANSI/BHMA A156.3-2014 Grade 1 and 3-hour Fire Rated.
- Specify lever or knob design. (“D” lever furnished standard, unless specified).
| ANSI/BHMA | 02 | 03 | 08 | 09 | 14 |
|---|---|---|---|---|---|
|  |  | | | |
| Operation | Dummy Pull Only | Night Latch, Key Retracts Latchbolt | Key Locks or Unlocks Latchbolt | Night Latch, Key Retracts Latchbolt | Lever Always Active, No Cylinder |
| Trim No. | 502 | 503R | 508M | 509R | 514 |
| Device No. | 2100 | 2100 | 2100 | 2100 | 2100 |
| 2105 | 2105 | 2105 | 2105 | 2105 | |
| 2200 | 2200 | 2200 | 2200 | 2200 | |
| 1300 | 2300 | 2300 | 2300 | 2300 | |
| 2500 | 2500 | 2500 | 2500 | 2500 | |
| Cylinder Type | RIM | Mortise | RIM | ||
| Specify Handing | N | N | N | N | N |
| ANSI/BHMA | 11 | 12 | 16 | 11 | 16 |
|---|---|---|---|---|---|
 | |  | | | |
| Operation | Key Locks or Unlocks Latchbolt | Night Latch, Key Retracts Latchbolt | Turn Always Active, No Cylinder | Key Locks or Unlocks Latchbolt | Turn Always Active, No Cylinder |
| Trim No. | 511M | 512R | 516 | 511P+402 | 516P+402 |
| Device No. | 2100 | 2100 | 2100 | ||
| 2105 | 2105 | 2105 | |||
| 2200 | 2200 | 2200 | 2200 | 2200 | |
| 1300 | 2300 | 2300 | 2300 | 2300 | |
| 2500 | 2500 | 2500 | |||
| Cylinder Type | Mortise | RIM | Mortise | ||
| Specify Handing | N | N | N | Y | Y |
Lever / Grip Options
| Lever Options | |||
|---|---|---|---|
 |  |  |  |
| D type (Standard) | Q type | A type | K type |
Model 508 Operation Breakable Cam
 | Model 508 Key Locks or Unlocks Lever (For 08/11 functions) Model 508 trim is composed of heavy duty investment cast steel. An internal breakable cam breaks away when a predetermined load is applied to the outside lever handle in locked mode without damaging the trim or compromising security. The cam is easily replaceable with minimum efforts. The breakable cam is a replaceable part. |
Specifications
| 2105 | 2100 | 2200 | 2300 | 2500 | ||
|---|---|---|---|---|---|---|
| Applications | Offices, schools, banks, assisted living facilities and other institutions or commercial buildings. | |||||
| Stile | Minimum width 2″ (51mm). | |||||
| Certification / Compliance | Panic devices UL/cUL listed for UL305 and ANSI/BHMA A156.3-2014 Grade 1 Panic Hardware. UL/cUL Fire rated for 3-hour Fire Exit Hardware, conforms to UL10C and UBC7-2. Also complies with NFPA 80 Fire doors and windows. Exit devices, levers, trims and pulls comply with American Disability Act (ADA) and NFPA 101 life safety code. | |||||
| Doors & Preparations | For new or retrofit installation into other manufacturers’ devices. For maximum door opening applications and listings for fire exit devices. | |||||
| – Mullion | with/without | with/without | ||||
| – Door Thickness | 1-3/4″ (45mm) ~ 2-1/4″ (57mm). Consult factory for other door thickness. | |||||
| – Door Wide | 3′ (914mm)(standard) ~ 4′ (1219mm). | |||||
| – Door High | (Panic) | 7′ (2134mm)(standard) ~ 10′ (3048mm). | ||||
| (Fire) | 7′ (2134mm) (standard) ~ 8′ (2438mm). | 7′ (2134mm) (standard) ~ 10′ (3048mm). | 7′ (2134mm) (standard) ~ 8′ (2438mm). | |||
| – Device Centerline from Finished Floor | 39-5/8″ (1006mm). | |||||
| – Door Undercut | 1/4″ (6mm). | |||||
| Center Case | Universal center case, heavy wrought steel and sintered metal parts. Device functions are determined by adaptation with type of trim. | Heavy wrought steel assembly with top and bottom rod adjustors. Adjustment accessible through center case after installation. | ||||
| Top & Bottom Latch Case | 4-1/2″ × 2-1/8″ × 1-1/2″ (114mm × 54mm × 38mm). | |||||
| Center Case Latchbolt | Stainless Steel, deadlocking, 3/4″ (19mm) throw. | |||||
| Top Latchbolt | Stainless steel, Pullman type deadlocking, 5/8″ (16mm) throw. | |||||
| Bottom Latchbolt | Stainless steel, Pullman type deadlocking, independent action 5/8″ (16mm) throw. Round slide bolt optional. | |||||
| Fire Bolt | Available for door openings up to 8′ (2438mm) wide × 10′ (3048mm) high. Specify suffix “LBR”. | |||||
| Electrical Functions | Can be interfaced with building security systems: | |||||
| – AL Alarm Exit | √ | √ | √ | √ | √ | |
| – DE Delayed Egress Device | √ | √ | √ | √ | ||
| – ELR Electric Latch Retraction | √ | √ | √ | √ | ||
| – LM Latchbolt Monitoring | √ | √ | √ | √ | √ | |
| – RX Request to Exit | √ | √ | √ | √ | √ | |
| – SS Signal Switch | √ | √ | √ | √ | ||
| – E Electric Mortise Lock | ||||||
| Dogging | NOT available on fire exit hardware. Flat/hex key dogging standard. Dogging options available for LD, CD, ED (ELR). | |||||
| Strikes | ||||||
| – Panic | ||||||
| — Top | 203/106 (roller type) | 216 | 203/106 (roller type) | |||
| — Middle | 103/106Z (roller type) | 103/106 (roller type) | 103 (roller type) | |||
| — Bottom | 227 | 227 | 227 | |||
| – Fire | ||||||
| — Top | 108 (roller type) | 216 | 108 (roller type) | |||
| — Middle | 108 (roller type) | 108 (roller type) | 108 (roller type) | |||
| — Bottom | 227F | 227F | 227F | |||
| Cylinders | NOT furnished standard, specify when required. | |||||
| Trim | The device and trim are sold separately, easy to mix and match. | |||||
| Handing | 500 Series Trim field reversible. Device non-handed. Specify handing for 400 Series trim when ordering. | |||||
| Fasteners | Machine screws and wood screws are furnished standard. | |||||
| Sex Bolts (SNB) | Required when used with wood, composite or non-reinforced hollow metal doors. | |||||
Strikes
Rim Device
 |  |  |  |   |
| P/N. 106 Rim Strike | P/N. 106Z Rim Strike | P/N. 108 Rim Strike | P/N. 103 Rim Strike | P/N. 136 Rim Strike |
| For RIM / SVR / 3PT top strike | For RIM / SVR / 3PT top strike | For RIM / SVR / 3PT top strike For double door RIM / 3PT use with F170/F270 mullion | For RIM / 3PT | For double door RIM / SVR / CVR combination with coordinator |
  | |  | |
Vertical Rod (VR) Device
Top Strike
 |  |  |
| P/N. 215 Top Strike | P/N. 216 Top Strike | P/N. 203 Top Strike |
| For flush transom SVR / 3PT | For CVR | For SVR / 3PT |
| |
Flat Bottom Strike
 |  |
| P/N. 225 Flat Bottom Strike | P/N. 226 Flat Bottom Strike |
| Optional for SVR / CVR / 3PT round slide bolt | Optional for SVR / CVR / 3PT round slide bolt |
 | |
Bottom Strike
 |  |
| P/N. 227F Bottom Strike | P/N. 224 Bottom Strike |
| Furnished standard for SVR / CVR / 3PT | Optional for SVR / 3PT |
| |
Shim
 |  |  |  |  |
| P/N. 616819-010 | P/N. 616819-030 | P/N. 616819-050 | P/N. 618619-010 | P/N. 618619-020 |
| For 106 Rim Strike Two (2) pieces furnished standard | For 108 Rim Strike Two (2) pieces furnished standard | For CVR top & bottom latches Strike Sixteen (16) pieces furnished standard for Top and Bottom latches. Eight (8) pieces furnished standard for LBR | For 103 Rim strike Two (2) pieces furnished standard | For 203 Strike Two (2) pieces furnished standard |
| ANSI Grade 1 | | Panic Application |
| ANSI Grade 2 | | Fire Application |
Cylinders
Cylinders are not furnished standard with the device or trim, specify when required. Schlage® C keyway, 6-pin standard, available in 630 or 626 finish. Small format Interchangeable core combinated/uncombinated also available. Specify type and finish when ordering.
Applications
| Cylinder Type | Applications | Trim | Cylinder | Cyl. Length (Part/No.) | Cylinder Cam | |
|---|---|---|---|---|---|---|
Mortise Cylinder I/C |  Standard | 08 / 11 for RIM/SVR/CVR/3PT | 500 | Standard | 1-1/8″ (441-102) | 440-0704 |
| I/C | 1-1/4″ (442-601) | 440-0708 | ||||
| Cylinder Dogging | All Device | Standard | 1-1/4″ (441-103) | 440-0702 | ||
| I/C | 1-3/8″ (442-701) | 440-0706 | ||||
Rim Cylinder I/C |  Standard | 03 for RIM/SVR/CVR/3PT (Must use with Cylinder Guard Part/No.611824-020) | 400 | Standard I/C | Tailpiece Length 3-1/8″ (79.6mm) | |
| 03 / 09 / 12 for RIM/SVR/CVR/3PT | 500 | |||||
Cylinder Cam
| Illustration |  |  |  |  |
| Dimension | X=1/4″ (6mm) Y=5/8″ (15mm) | X=3/8″ (9.5mm) Y=3/4″ (19mm) | X=1/4″ (6mm) Y=5/8″ (15mm) | X=3/8″ (9.5mm) Y=3/4″ (19mm) |
| Cam No. | 440-0702 | 440-0704 | 440-0718 | 440-0708 |
Cylinder Guard
 | 611824-020 For use on 403R |
I/C Core
 | “A” keyway standard supplied. Specify 6 or 7 pin, combinated or uncombinated and finish 606 or 626 when ordering. Consult factory for other keyways. |
Dogging
 |  |  |  |
| LD | CD | HKD | ED(ELR) |
| Less Dogging | Cylinder Dogging | Flat/Hex Key Dogging | Electrical Dogging |
| Less dogging is available in all 2000 Series panic exit devices. | Available for all models except for fire exit hardware. Cylinder dogging provides the ability to lock down the push bar with a key cylinder, allowing the door to be used in both push/pull mode. To order, specify “CD”. Requires the use of a 1-1/4″ (31.75mm) mortise cylinder (not furnished standard). |
Mullion
| A | B |  Removable mullions are used with paired doors where a full width opening is only occasionally required. Doors are fitted with Rim exit devices and normally function as single doors. Available in 7′, 8′ or 10′ (2134mm, 2438mm or 3048mm) lengths. |
 |  |
| A | B | |
| Model 170 / F170 Keyed Removable Mullion | Model 270 / F270 Non-Keyed Removable Mullion | |
| Top and Bottom Fittings | Investment cast steel, furnished with steel anchors for floors. | |
| Mullion | 2″ x 3″ (50.8mm x 76.2mm) steel. | |
| Stock size | 8′ (2438mm) length standard, can be cut for opening less than 8′ (2438mm). 10′ (3048mm) length available upon request. | |
| Finishes | 600, 689, 695. | |
| UL Listed | Listed for 3-hour Fire Rated Exit Hardware. | |
| Cylinder | Not furnished standard, keying is standard 1-1/8″ (28.5mm) mortise cylinder with cam. | |
The head design of 170/F170
Miscellaneous
Rod
Top Rod
| Illustration | Device No. | Part No. | Rod Length | For Door Height |
|---|---|---|---|---|
 | 2200 2500 (SVR/3PT) | 616823-020 | 36-1/8″ (916mm) | 7′ |
| 616823-030 | 48-1/8″ (1221mm) | 8′ | ||
| 616823-030 Add 616823-040* | 48-1/8″ (1221mm) Add 24″ (609mm) | 10′ | ||
 | 2300 (CVR) | 616823-070 | 37″ (940mm) | 7′ |
| 616823-080 | 49″ (1245mm) | 8′ | ||
| 616823-080 Add 616823-050* | 49″ (1245mm) Add 23-7/8″ (605mm) | 10′ |
Bottom Rod
For push bar location at 39-5/8″ (1006mm) from finished floor.
| Illustration | Device No. | Part No. | Rod Length |
|---|---|---|---|
| 2200 2500 (SVR/3PT) | 616823-010 | 31-7/8″ (807mm) |
| 2300 (CVR) | 616823-060 | 31-3/4″ (805mm) |
Dummy Push Bar
DP3 Active / DP4 Inactive
- The push bar is active or inactive. A push/pull operation can be accomplished by using an outside dummy trim.
- Size: 3′ or 4′ (914mm or 1219mm).
- Finishes: 605, 606, 611,612, 613, 625, 626, 630.
Fire Door – Applications and Listings
F2000 Series Narrow Head Fire Exit Devices Maximum Door Opening Applications and Listings
| Exit Device | Door Material | Single Door | Double Door | |||
| With 170 mullion | With 270 mullion | VR/VR Same Direction | VR/VR Double Egress | |||
| F2100 F2105 RIM | Metal | 3 Hours 4′ × 8′ | 3 Hours 8′ × 8′ | 3 Hours 8′ × 8′ | ||
| F2200 SVR | Metal | 3 Hours 4′ x 10′ | 3 Hours 8′ × 10′ | 3 Hours 8′ × 10′ | ||
| F2200 LBR | Metal | 3 Hours 4′ x 10′ | 3 Hours 8′ × 10′ | 3 Hours 8′ × 10′ | ||
| F2300 CVR | Metal | 3 Hours 4′ x 10′ | 3 Hours 8′ × 10′ | 3 Hours 8′ × 10′ | ||
| F2300 LBR | Metal | 3 Hours 4′ x 10′ | 3 Hours 8′ × 10′ | 3 Hours 8′ × 10′ | ||
| F2500 3PT | Metal | 3 Hours 4′ × 8′ | 3 Hours 8′ × 8′ | 3 Hours 8′ × 8′ | ||
Notes:
- Fire exit device conforms to UL10C and UBC7-2.
- Fire exit device is applicable for wood door with 1-1/2-hour or 1/3-hour fire rating.
- Consult with door manufacturer for specific limitations on fire door assemblies.
Typical Installation
Rim Exit Device / Vertical Rod Exit Devices
| Panic | RIM | 2100 | Up to 4′ × 10′ Door Size |
| 2105 | |||
| SVR | 2200 | ||
| CVR | 2300 | ||
| 3PT | 2500 | ||
| Fire (3 Hours) | RIM | F2100 | Up to 4′ × 8′ Door Size |
| F2105 | |||
| SVR | F2200 | Up to 4′ × 10′ Door Size | |
| CVR | F2300 | ||
| 3PT | F2500 | Up to 4′ × 8′ Door Size |
Two Surface Vertical Rod Devices
| Panic | SVR × SVR | 2200 × 2200 | Up to 8′ × 10′ Door Size |
| Fire (3 Hours) | SVR × SVR | F2200 × F2200 |
Two Concealed Vertical Rod Devices
| Panic | CVR × CVR | 2300 × 2300 | Up to 8′ × 10′ Door Size |
| Fire (3 Hours) | CVR × CVR | F2300 × F2300 |
Two Surface Vertical Rod Devices Less Bottom Rod
| Panic | SVR × SVR | 2200LBR × 2200LBR | Up to 8′ × 10′ Door Size |
| Fire (3 Hours) | SVR × SVR | F2200LBR × F2200LBR |
Two Concealed Vertical Rod Devices Less Bottom Rod
| Panic | CVR × CVR | 2300LBR × 2300LBR | Up to 8′ × 10′ Door Size |
| Fire (3 Hours) | CVR × CVR | F2300LBR × F2300LBR |
Two Rim Exit Devices with Removable Mullion
| Panic | RIM × RIM | 2100 × 2100 | Up to 8′ × 10′ Door Size |
| 2105 × 2105 | |||
| Fire (3 Hours) | RIM × RIM | F2100 × F2100 | Up to 8′ × 10′ Door Size |
| F2105 × F2105 |
Two Three-Point Latching Devices with Removable Mullion
| Panic | 3PT × 3PT | 2500 × 2500 | Up to 8′ × 10′ Door Size |
| Fire (3 Hours) | 3PT × 3PT | F2500 × F2500 | Up to 8′ × 8′ Door Size |
Surface Vertical Rod Devices Less Bottom Rod
| Panic | SVR × SVR | 2200LBR × 2200LBR | Up to 8′ × 10′ Door Size |
| Fire (3 Hours) | SVR × SVR | F2200LBR × F2200LBR |
Concealed Vertical Rod Devices Less Bottom Rod
| Panic | CVR × CVR | 2300LBR × 2300LBR | Up to 8′ × 10′ Door Size |
| Fire (3 Hours) | CVR × CVR | F2300LBR × F2300LBR |
Two Surface Vertical Rod Devices
| Panic | SVR × SVR | 2200 × 2200 | Up to 8′ × 10′ Door Size |
| Fire (3 Hours) | SVR × SVR | F2200 × F2200 |
Two Concealed Vertical Rod Devices
| Panic | CVR × CVR | 2300 × 2300 | Up to 8′ × 10′ Door Size |
| Fire (3 Hours) | CVR × CVR | F2300 × F2300 |
One Rim Exit Device × One Vertical Rod Device
| Panic | RIM × SVR | 2100 × 2200 | Up to 8′ × 10′ Door Size |
| 2105 × 2200 | |||
| RIM × CVR | 2100 × 2300 | ||
| 2105 × 2300 | |||
| Fire (3 Hours) | RIM × SVR | F2100 × F2200 | |
| F2105 × F2200 | |||
| RIM × CVR | F2100 × F2300 | ||
| F2105 × F2300 |
