HL9000推拉式把手

適用於匣式門鎖

美國國家標準一級 特殊五金

Klacci HL9000推拉式把手
Klacci HL9000推拉式把手 with Cylinder

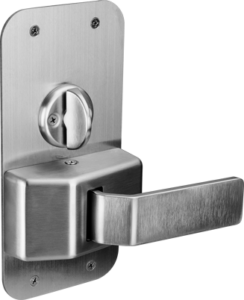

Klacci HL9000推拉式把手 with thumbturn
  • For application on Mortise Escutcheon and Mortise Sectional Locks.
  • 通過美國國家標準 ANSI/BHMA A156.13 一級鎖認證。
  • UL Listed for 3-Hour fire rating.
  • Ease of installation. Perfect door prep with same mounting screw hole positions that match those of the mortise lock case.
  • Wide range of functions available to choose from.
  • Narrow and wide Escutcheon plate sizes plate available, conforms to ANSI A115.1.
認證
  • ANSI/BHMA A156.13 Grade 1.

  • UL Listed for 3-Hour fire rating.
挖門孔
  • 依照ANSI A115.1
鎖匣尺寸
  • 4-5/16″ x 6″ x 1″ (110mm x 152mm x 25mm)。
門距
  • 2-3/4″ (70 mm) (used with M Series Mortise Locks).
適用門厚
  • 1-3/4″ (45 mm)~2-1/2″ (64 mm)。
軸心距離
  • 鎖芯與軸心距離為3-5/8″ (92mm)。 旋鈕與軸心距離為2-7/16″ (62mm)。
輔助栓
  • 1″ (25mm) throw, stainless steel.
門栓
  • 長3/4″ (19mm)不鏽鋼防摩擦鎖舌。
Trim Handing
  • 無方向性。
Case Handing
  • Field reversible without removing case.
轉動器
  • Breakable to prevent the lock case from unlocking or being damaged.
Klacci HL400拉式把手 尺寸
拉式把手
Klacci HL400拉式把手 Escutcheon Plate 尺寸
Escutcheon Plate

We offer a full and complete line of spacer rings, cylinder guards and spring washers, as well as a wide selection of cam types to fulfill the requirements of most applications. Standard mortise cylinders are furnished in 5 or 6 pin configurations. Interchangeable core mortise cylinders are also available in 6 or 7 pin configurations, where increased security is achieved by quick change of keying.

圖示Face長度
1-1/8″1-1/4″1-3/8″1-1/2″1-1/2″1-3/4″1-7/8″
Klacci 匣式門鎖 鎖芯 外露 標準外露
標準		441-102441-103441-103441-103441-106441-106441-108
Klacci 匣式門鎖 鎖芯 隱藏 標準隱藏
標準		441-402441-403441-404441-405441-406441-407441-408
Klacci 匣式門鎖 鎖芯 外露 8字形可卸式鎖芯外露
8字形可卸式鎖芯		N/A442-601442-701442-702N/AN/AN/A
Klacci 匣式門鎖 鎖芯 隱藏 8字形可卸式鎖芯隱藏
8字形可卸式鎖芯		N/A442-601442-601442-902N/AN/AN/A

Additional cams are available for our mortise cylinder to operate in other manufacturers’ mortise locks.

Klacci 匣式門鎖 Cylinder Cam 440-0702Klacci 匣式門鎖 Cylinder Cam 440-0703Klacci 匣式門鎖 Cylinder Cam 440-0704Klacci 匣式門鎖 Cylinder Cam 440-0801Klacci 匣式門鎖 Cylinder Cam 440-0705Klacci 匣式門鎖 Cylinder Cam 440-0706Klacci 匣式門鎖 Cylinder Cam 440-0708Klacci 匣式門鎖 Cylinder Cam 440-0709
440-0702440-0703440-0704440-0801440-0705440-0706440-0708440-0709

We offer two types of cylinder guards to work with sectional trim for different door ranges and various cylinder lengths. Specify part number when ordering.

  • Klacci 匣式門鎖 鎖心防護套 4240-0201
    4240-0201
  • Klacci 匣式門鎖 鎖心防護套 4240-0202
    4240-0202
Klacci 匣式門鎖 Armor Front (Faceplates) Square Corner

Square Corner

Klacci 匣式門鎖 Armor Front (Faceplates) Square Corner

1/4″ Radius Corner

Square Corner1/4″ Radius Corner詳細內容
1-1/4″
(32mm)
寬		1-1/16″
(27mm)
寬		1-1/4″
(32mm)
寬		1-1/16″
(27mm)
寬
528-711528-731528-721528-741門栓 × Aux. 門栓 × 輔助栓
528-712528-732528-722528-742門栓 × Aux. 門栓
528-713528-733528-723528-743門栓 × 輔助栓
528-714528-734528-724528-744門栓
528-715528-735528-725528-745空白
528-716528-736528-726528-746輔助栓

Non-handed, made of brass, bronze or stainless steel. Available with square corner or 1/4″ radius corner.

Klacci 匣式門鎖 擋板 527-611 Square Corner

527-611

Square Corner

Klacci 匣式門鎖 擋板 527-611 Square Corner

527-631

1/4″ Radius Corner

Klacci 匣式門鎖 擋板 527-611 Square Corner

527-610

Square Corner

Klacci 匣式門鎖 擋板 527-611 Square Corner

527-630

1/4″ Radius Corner

集塵盒是鐵製, 已提供不需額外付費。

Klacci 匣式門鎖 擋板 527-611 Square Corner

552-312

集塵盒

Function Code Number詳細內容 ANSI/BHMA
無輔助栓
Function Code Number詳細內容 ANSI/BHMA
有輔助栓
Function Code Number詳細內容 ANSI/BHMA
無輔助栓
Function Code Number詳細內容 ANSI/BHMA
有輔助栓

有多種表面顏色選擇可搭配您的門扇和五金配件。

顏色ANSI/BHMAUS
Klacci 表面顏色 605 亮面黃銅亮面黃銅6053
Klacci 表面顏色 606 砂面黃銅砂面黃銅6063
Klacci 表面顏色 611 亮面丹銅亮面丹銅6119
Klacci 表面顏色 612 砂面丹銅砂面丹銅61210
Klacci 表面顏色 613 黑黑61310B
Klacci 表面顏色 625 亮鉻亮鉻62526
Klacci 表面顏色 626 霧鉻霧鉻62626D
Klacci 表面顏色 630 砂面不鏽鋼砂面不鏽鋼63032D

下載

Klacci HL系列推拉式把手 目錄

Klacci HL系列推拉式把手 目錄
2.42 MB

Download
