RX Request to Exit
美國國家標準一級 重型

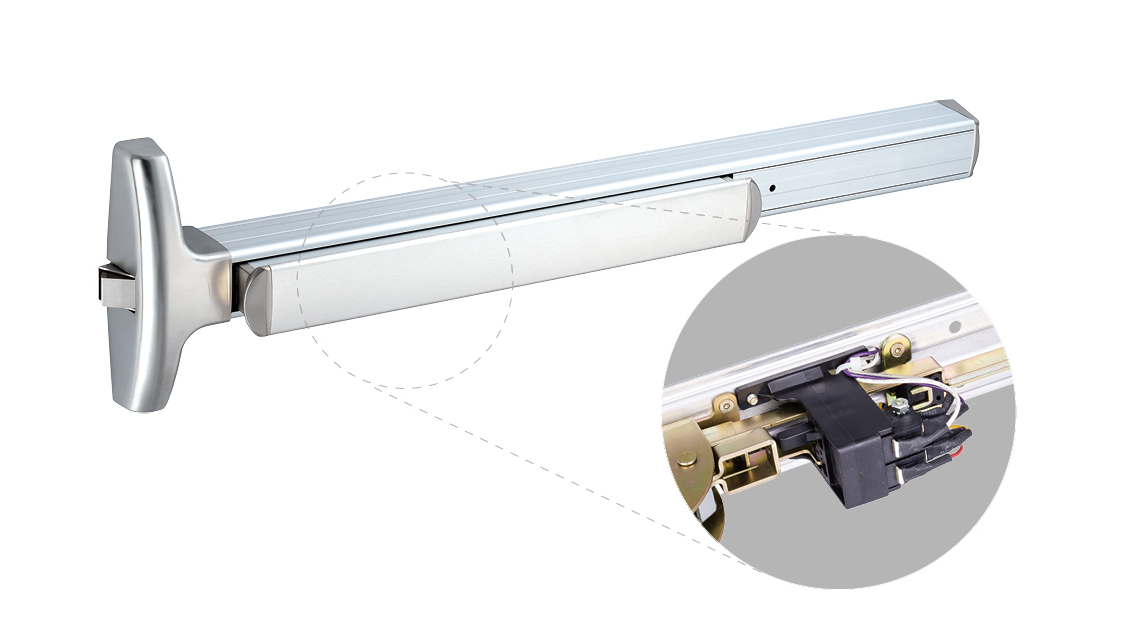

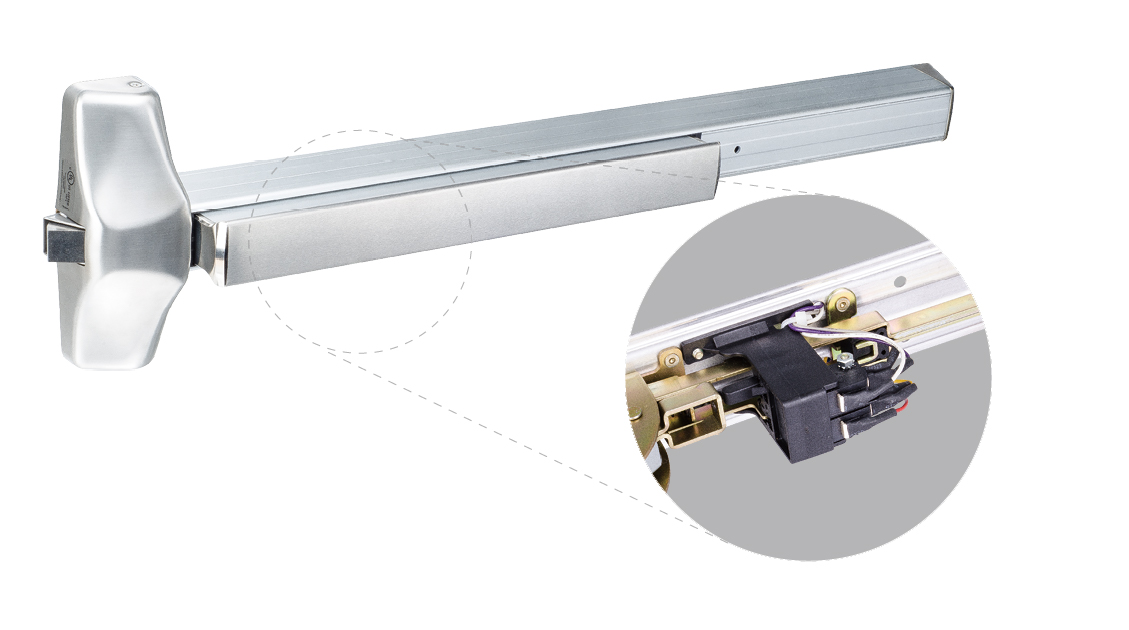

Micro-switch Detecting Push Bar
The RX feature is used to signal the use of an opening. This device is equipped with one internal SPDT switch which monitors the push bar. The device can be connected to a security console, or may be used as a single door alarm when used with a horn and power supply.
Electrical Ratings
Switch rate:
- 24 VDC, 3 Amp SPDT.
- SPDT (Single Pole, Double Throw).
To order
- Prefix RX (e.g. RX1100, RX2100, RX31).
