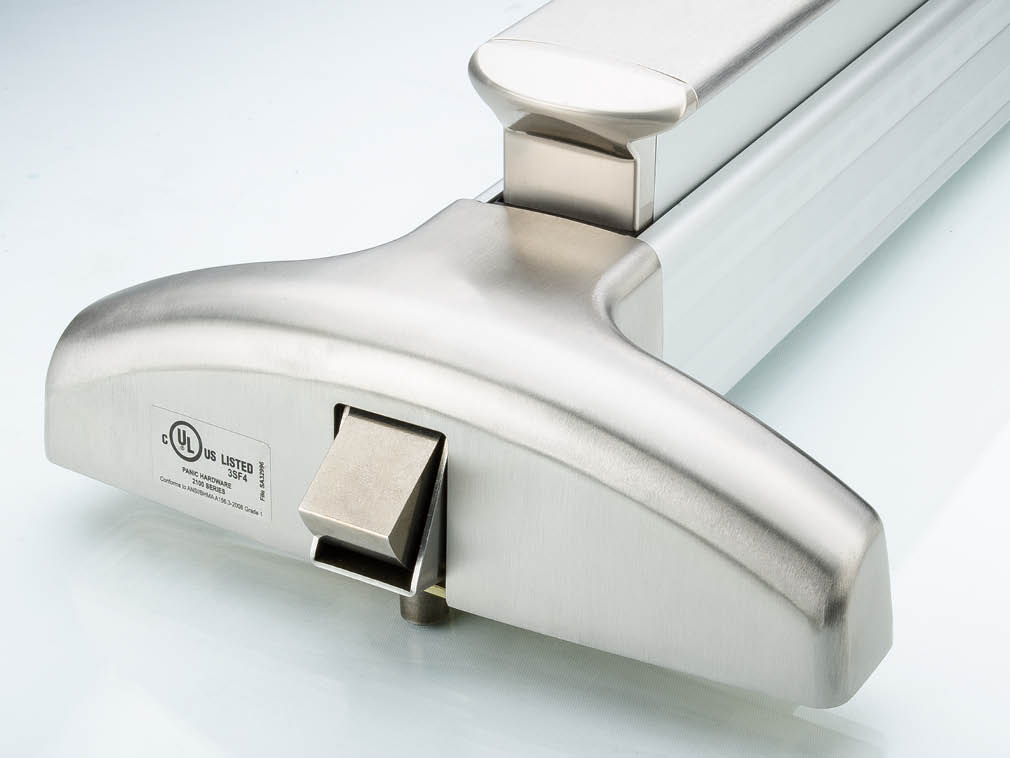

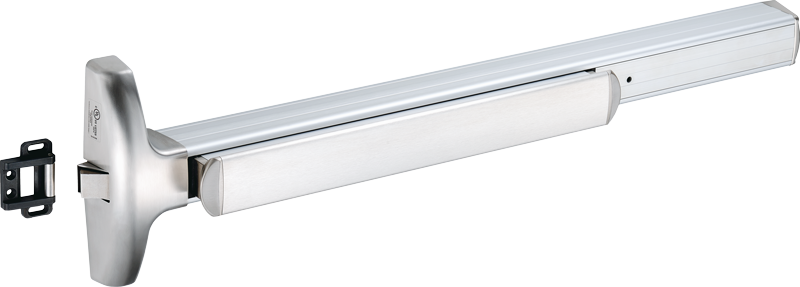

2100 / F2100 窄頭型平推式逃生門鎖(RIM)
美國國家標準一級 Heavy Duty
| 應用範圍 | Offices, schools, banks, assisted living facilities and other institutions or commercial buildings. | |
| Stile | Minimum width 2″ (51mm). | |
| 認證 | Panic devices UL/cUL listed for UL305 and ANSI/BHMA A156.3-2014 Grade 1 Panic Hardware. UL/cUL Fire rated for 3-hour Fire Exit Hardware, conforms to UL10C and UBC7-2. Also complies with NFPA 80 Fire doors and windows. Exit devices, levers, trims and pulls comply with American Disability Act (ADA) and NFPA 101 life safety code. | |
| 挖門孔 | For new or retrofit installation into other manufacturers’ devices. For maximum door opening applications and listings for fire exit devices. | |
| – 中柱 | with/without | |
| – 門厚 | 1-3/4″ (45mm) ~ 2-1/4″ (57mm). Consult factory for other door thickness. | |
| – Door Wide | 3′ (914mm)(標準) ~ 4′ (1219mm). | |
| – Door High | (Panic) | 7′ (2134mm)(標準) ~ 10′ (3048mm). |
| (Fire) | 7′ (2134mm)(標準) ~ 8′ (2438mm). | |
| – 裝置的中心線和地板顏色 | 39-5/8″ (1006mm). | |
| – 門縫 | 1/4″ (6mm). | |
| Center Case | Universal center case, heavy wrought steel and sintered metal parts. Device functions are determined by adaptation with type of trim. | |
| Top & Bottom Latch Case | ||
| Center Case Latchbolt | Stainless Steel, deadlocking, 3/4″ (19mm) throw. | |
| Top Latchbolt | ||
| Bottom Latchbolt | ||
| Fire Bolt | ||
| 電子功能 | Can be interfaced with building security systems: | |
| – AL 警報用逃生 | √ | |
| – DE 延遲逃生裝置 | √ | |
| – ELR Electric Latch Retraction | √ | |
| – LM Latchbolt Monitoring | √ | |
| – RX Request to Exit | √ | |
| – SS Signal Switch | √ | |
| – E 電子匣式鎖 | ||
| Dogging | NOT available on fire exit hardware. Flat/hex key dogging standard. Dogging options available for LD, CD, ED (ELR). | |
| 擋板 | ||
| – Panic | ||
| — Top | ||
| — Middle | 103/106 (roller type) | |
| — 底部 | ||
| – Fire | ||
| — Top | ||
| — Middle | 108 (roller type) | |
| — 底部 | ||
| 鎖芯 | NOT furnished standard, specify when required. | |
| 把手 | The device and trim are sold separately, easy to mix and match. | |
| 門向 | 500 Series Trim field reversible. Device non-handed. Specify handing for 400 Series trim when ordering. | |
| 扣件/安全帶 | Machine screws and wood screws are furnished standard. | |
| Sex Bolts (SNB) | Required when used with wood, composite or non-reinforced hollow metal doors. | |
