Klacci 2000 Series Narrow Head Exit Devices Overview

2000 系列窄頭型逃生門鎖

美國國家標準一級 Extra Heavy Duty

產品特點
裝置選項
詳細資訊
下載

The Product

2000 Series Narrow Head Exit Devices and Trims are designed for new or retrofit installation into other manufacturers’ devices. Push Bar assembly’s smooth and reduced projection minimizes catch hazard. Device function is field selectable by adaptation with selected type of trim. A full complement of lever trim is available in wide range of architectural finishes.

通過美國國家標準 ANSI/BHMA A156.3-2014 一級鎖認證

Inherits from the excellent quality and performance of Klacci, the 2000 Series Narrow Head Exit Device is certified to meet ANSI/UL305 and the ANSI/BHMA A156.3-2014 Grade 1 cycle test requirement. Other than the already rigorous testing standard, the latch needs to withstand a 20 lbs weight loading to it in the cycle test to make sure it stays latched during any viciousness attempts. Devices and trims are also UL/cUL listed for panic hardware or fire-rated hardware. 2000 Series provides superior durability for high impact applications such as offices, schools, banks, assisted living facilities and other institutions or commercial buildings.

Klacci 2000 Series 2105/F2105 Accessible Rim Narrow Head Exit Devices Hospital

A gentle push for more convenient accessibility

Less Than 5 lbs of Push Force to Exit

Klacci 2105 / F2105 窄頭型無障礙推式逃生門鎖(RIM)
2105/F2105 Accessible Rim Narrow Head Exit Devices
  • The push bar requires only 5 lbs, or less of force to retract the latch.
  • Operable with one hand without the need of using robust force.
  • Meets the 2010 ADA Standards 11B-309.4 and California Building Code 11B-309.4 operation.
  • Complies to the new ANSI/BHMA A156.3-2014 Grade 1 cycle test requirement for a net 20 to 22 lbf of load applied on the latch during testing.
  • Specify one for all your needs – panic or fire rated doors, high traffic exits, full accessibility areas.

Strength is Not the only Option, Exit Control Can Be Gentle

Without compromising any strength and durability of the Klacci 1000 Series exit device, the accessible Rim Exit Device can be operated with 5 lbs of push force. Not only it meets the requirements of the 2010 ADA Standards and California Building Code 11B, the accessible rim exit devices are most suitable for accessibility demand from hospitals or health care centers.

The Exit Device for Anyone, Any Places

The accessible Rim Exit Device makes sure the exit can be operable with the least amount of force, while keeping the maximum strength. No one should be exempted from evacuation when it happens. Simply the choice of safety and security.

Klacci CR Series Door Coordinators

順序，決定安全

大家都知道，數字上是一先於二，就如同安全永遠重於便利。Klacci凱樂奇 CR系列槓桿式順位器提供簡單而有效的方式確保雙扇門的門扇以正確順序關閉，為了防止門扇未正確順序關閉導致在緊急情況下可能引起的安全風險。

了解更多
Klacci 2000 Series Electrical Narrow Head Exit Devices Airport

電子逃生門鎖

了解更多

產品特點

The 2000 Series Narrow Head Exit Devices are fabricated and blended with simplicity, strength, durability, aesthetics and installer-friendly innovations.

  • Devices and trims are designed for new or retrofit installation into other manufacturers’ exit devices and trims.
  • Made to comply with the highest safety and security standards in industry.
  • UL/cUL listed for panic hardware or 3-hour Fire Rated Exit Hardware.
  • Certified to ANSI/UL305 and ANSI/BHMA A156.3-2014 Grade 1.
Klacci 2000 系列窄頭型逃生門鎖 產品特點
A


Special plastic inserts and rubber bumpers reduce noise and don’t fail under high or low temperatures. Impervious to petroleum lubricants.

B

Detachable center case allows switching between mechanical and electrical options which replaces the need of buying two complete sets.

C

Center case with maximum versatility, Surface and concealed vertical rods can be adjusted inside the center case with an ingenious rod holder design.

D

Cross spindle offers additional strength.

E

Replaceable cam breaks at a predetermined load to prevent further damage of the trim mechanism. Handing change is simple and easy, just remove screw and cam from mechanism and rotate lever to desired position, then replace cam and fasten the screw.

F

Center Case mounting plate made of heavy gauge steel adding extra strength.

G

Stainless steel latch and deadlatching blade add perceived value.

H

Stamped Center Case Cover made with any commercial finishes, fits minimum 2″ stile.

I

Steel die cast rocker arm designed for heavy loads.

J

Push bar is smoothly surfaced. Light force applied to the push bar can release the latch. Accessible version is also available to meet the 2010 ADA Standards and Accessible Design to operate the device with 5 lbs of force.

K

Integrated end cap reduced projection minimizes catch hazard and add stability to the push bar to move smoothly regardless of where the pressure is applied on push bar.

L

Dogging can be done with an allen wrench, a small flat key or a flat blade screwdriver.

裝置選項

2100 / F2100 窄頭型平推式逃生門鎖(RIM)

2100 / F2100 窄頭型平推式逃生門鎖(RIM)

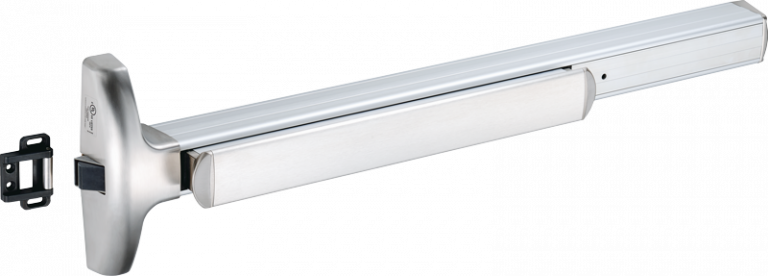

2105 / F2105 Narrow Head Accessible Rim Exit Devices (RIM)

2105 / F2105 Narrow Head Accessible Rim Exit Devices (RIM)

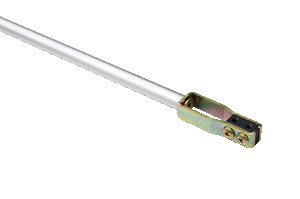

2300 / F2300 窄頭型隱藏式天地栓平推鎖(CVR)

2300 / F2300 窄頭型隱藏式天地栓平推鎖(CVR)

2200 / F2200 窄頭型外露式天地栓平推鎖(SVR)

2200 / F2200 窄頭型外露式天地栓平推鎖(SVR)

2500 / F2500 窄頭型三點式平推鎖(3PT)

2500 / F2500 窄頭型三點式平推鎖(3PT)

詳細資訊

    General Overview

    General Overview

    Device Material

    2000 Series is furnished standard with grooved case. Smooth surface style is available. The two styles are mechanically and dimensionally identical and come with a wide selection of finishes.

    顏色選擇

    Klacci 2000 系列窄頭型逃生門鎖 General Overview C 樣式
    顏色ANSI/BHMAUSB.E.G.A.D.C.F.H.
    Klacci 表面顏色 605 亮面黃銅亮面黃銅6053Brass, PolishedPlatedBuffed Anodized
    Klacci 表面顏色 606 砂面黃銅砂面黃銅6064Brass, SatinPlated亮面丹銅
    Klacci 表面顏色 611 亮面丹銅Polished Bronze6119Bronze, PolishedPlatedBuffed Anodized
    Klacci 表面顏色 612 砂面丹銅砂面丹銅61210Bronze, SatinPlated亮面丹銅
    Klacci 表面顏色 613 黑黑61310BBronze, Satin; Dark OxidizedPlated亮面丹銅
    Klacci 表面顏色 625 亮鉻亮鉻62526Brass, Polished & PlatedPlatedBuffed Anodized
    Klacci 表面顏色 626 霧鉻霧鉻62626DBrass, Satin & PlatedPlated亮面丹銅
    Klacci 表面顏色 630 砂面不鏽鋼砂面不鏽鋼63032DSt. Steel, SatinPlated亮面丹銅
    For other finishes please consult factory.
    Push Bar Trim Options
    • Embossed “PUSH”
    • Braille, embossed “CAUTION STAIRWELL”
    • Red silk screen lettered “EMERGENCY EXIT ONLY – PUSH TO OPEN & SOUND ALARM”
    Mechanism Case Options
    Klacci 逃生門鎖 Mechanism Case Smooth 選項
    Smooth    		Klacci 逃生門鎖 Mechanism Case Grooved 選項
    Grooved
    功能

    功能

    ANSI/ BHMA操作Trim Option
    400 系列拉式把手 500 系列整合型
    01逃生專用401N
    02裝飾用拉把手402502
    03Night Latch, Key Retracts Latchbolt403R503R
    08Key Locks or Unlocks LatchboltN508M
    09Night Latch, Key Retracts LatchboltN509R
    11Key Locks or Unlocks LatchboltN511M
    12Night Latch, Key Retracts LatchboltN512R
    14Lever Always Active, No CylinderN514
    16Turn Always Active, No CylinderN516
    Note: Suffix R/M represent cylinder application type.
    Trim Operation Options

    Trim Operation Options

    Klacci 2000 系列窄頭型逃生門鎖 400 系列拉式把手 403R Night Latch, Key Retracts LatchboltKlacci 2000 系列窄頭型逃生門鎖 500 系列整合型 512R Night Latch Key Retracts Latchbolt
    400 系列拉式把手500 系列整合型
      400 系列拉式把手
      Klacci 2000 系列窄頭型逃生門鎖 400 系列拉式把手 401 逃生專用Klacci 2000 系列窄頭型逃生門鎖 400 系列拉式把手 402 裝飾用拉把手Klacci 2000 系列窄頭型逃生門鎖 400 系列拉式把手 403R Night Latch, Key Retracts Latchbolt
      PlatePull OnlyWith Rim Cylinder

      400 系列拉式把手

      產品特點
      • Trims are furnished with wrought plate and extruded or with cast solid grips
      • Trims are designed to retrofit into other manufacturers’ devices.
      • Trims are UL/cUL certified for ANSI/BHMA A156.3-2014 Grade 1 and 3-hour Fire Rated.
      • Trims are through bolted. (“GD” grip furnished standard, unless specified).
      • Specify handing when ordering.
      ANSI/BHMA010203
      Klacci 2000 系列窄頭型逃生門鎖 400 系列拉式把手 401 逃生專用Klacci 2000 系列窄頭型逃生門鎖 400 系列拉式把手 402 裝飾用拉把手Klacci 2000 系列窄頭型逃生門鎖 400 系列拉式把手 403R Night Latch, Key Retracts Latchbolt
      操作逃生專用裝飾用拉把手Night Latch, Key Retracts Latchbolt
      Trim No.401402403R
      裝置號碼210021002100
      210521052105
      220022002200
      230023002300
      250025002500
      鎖芯分類RIM
      Specify Handing*YYY
      * Specify handing (RHR/LHR)
      Lever / Grip Options
      Grip 選項
      Klacci 逃生門鎖 把手 Grip 選項 GD 樣式Klacci 逃生門鎖 把手 Grip 選項 GK 樣式
      GD 樣式
      (標準)      		GK 樣式
      500 Series Escutcheon

      500 Series Escutcheon

      Klacci 2000 系列窄頭型逃生門鎖 500 系列整合型 502 裝飾用拉把手Klacci 2000 系列窄頭型逃生門鎖 500 系列整合型 502 裝飾用拉把手Klacci 2000 系列窄頭型逃生門鎖 500 系列整合型 512R Night Latch Key Retracts LatchboltKlacci 2000 系列窄頭型逃生門鎖 500 系列整合型 509R Night Latch Key Retracts Latchbolt
      裝飾用門把活動式把手Night Latch
      Lever rigid for pull operation
      (For 02 function)      		Lever always active
      (For 14 function)      		Key retracts latchbolt. Lever is rigid
      (For 09, 12 function)
      產品特點
      • Escutcheon and lever with sleek and seamless design produced by casting or forging.
      • Trims are designed to retrofit into other manufacturers’ devices.
      • Handing field reversible.
      • Trims are UL/cUL certified for ANSI/BHMA A156.3-2014 Grade 1 and 3-hour Fire Rated.
      • Specify lever or knob design. (“D” lever furnished standard, unless specified).
      ANSI/BHMA0203080914
      Klacci 2000 系列窄頭型逃生門鎖 500 系列整合型 502 裝飾用拉把手Klacci 2000 系列窄頭型逃生門鎖 500 系列整合型 503R Night Latch Key Retracts LatchboltKlacci 2000系列窄頭型逃生門鎖 500 系列整合型 508M Key Locks or Unlocks LatchboltKlacci 2000 系列窄頭型逃生門鎖 500 系列整合型 509R Night Latch Key Retracts LatchboltKlacci 2000 系列窄頭型逃生門鎖 500 系列整合型 502 裝飾用拉把手
      操作裝飾用拉把手Night Latch, Key Retracts LatchboltKey Locks or Unlocks LatchboltNight Latch, Key Retracts LatchboltLever Always Active, No Cylinder
      Trim No.502503R508M509R514
      裝置號碼21002100210021002100
      21052105210521052105
      22002200220022002200
      13002300230023002300
      25002500250025002500
      鎖芯分類RIMMortiseRIM
      Specify HandingNNNNN
      ANSI/BHMA1112161116
      Klacci 2000系列窄頭型逃生門鎖 500 系列整合型 511M Key Locks or Unlocks LatchboltKlacci 2000 系列窄頭型逃生門鎖 500 系列整合型 512R Night Latch Key Retracts LatchboltKlacci 2000 系列窄頭型逃生門鎖 500 系列整合型 516 Turn Always Active No CylinderKlacci 2000系列窄頭型逃生門鎖 500 系列整合型 511M Key Locks or Unlocks LatchboltKlacci 2000 系列窄頭型逃生門鎖 400 系列拉式把手 402 裝飾用拉把手Klacci 2000 系列窄頭型逃生門鎖 500 系列整合型 516 Turn Always Active No CylinderKlacci 2000 系列窄頭型逃生門鎖 400 系列拉式把手 402 裝飾用拉把手
      操作Key Locks or Unlocks LatchboltNight Latch, Key Retracts LatchboltTurn Always Active, No CylinderKey Locks or Unlocks LatchboltTurn Always Active, No Cylinder
      Trim No.511M512R516511P+402516P+402
      裝置號碼210021002100
      210521052105
      22002200220022002200
      13002300230023002300
      250025002500
      鎖芯分類MortiseRIMMortise
      Specify HandingNNNYY
      Lever / Grip Options
      Lever 選項
      Klacci 逃生門鎖 把手 Lever 選項 D 樣式Klacci 逃生門鎖 把手 Lever 選項 Q 樣式Klacci 逃生門鎖 把手 Lever 選項 A 樣式Klacci 逃生門鎖 把手 Lever 選項 K 樣式
      D 樣式
      (標準)      		Q 樣式A 樣式K 樣式

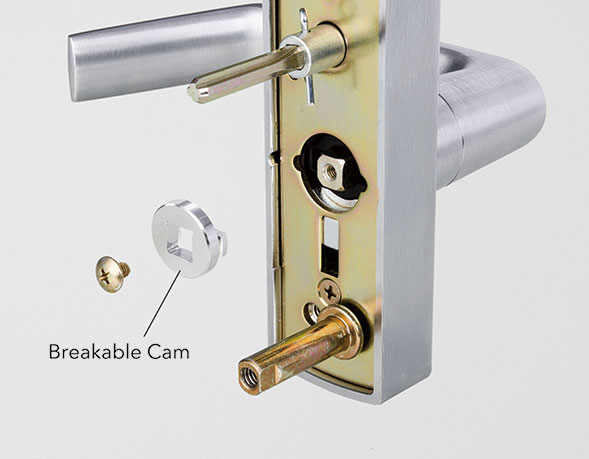

      Model 508 Operation Breakable Cam
      Klacci 2000系列窄頭型逃生門鎖 Model 508 Operation Breakable Cam
      		Model 508
      Key Locks or Unlocks Lever
      (For 08/11 functions)

      Model 508 trim is composed of heavy duty investment cast steel. An internal breakable cam breaks away when a predetermined load is applied to the outside lever handle in locked mode without damaging the trim or compromising security. The cam is easily replaceable with minimum efforts.

      The breakable cam is a replaceable part.
      規格

      規格

      21052100220023002500
      應用範圍Offices, schools, banks, assisted living facilities and other institutions or commercial buildings.
      StileMinimum width 2″ (51mm).
      認證Panic devices UL/cUL listed for UL305 and ANSI/BHMA A156.3-2014 Grade 1 Panic Hardware.
      UL/cUL Fire rated for 3-hour Fire Exit Hardware, conforms to UL10C and UBC7-2. Also complies with NFPA 80 Fire doors and windows.
      Exit devices, levers, trims and pulls comply with American Disability Act (ADA) and NFPA 101 life safety code.
      Doors & PreparationsFor new or retrofit installation into other manufacturers’ devices.
      For maximum door opening applications and listings for fire exit devices.
      – 中柱with/withoutwith/without
      – 門厚1-3/4″ (45mm) ~ 2-1/4″ (57mm). Consult factory for other door thickness.
      – Door Wide3′ (914mm)(標準) ~ 4′ (1219mm).
      – Door High(Panic)7′ (2134mm)(標準) ~ 10′ (3048mm).
      (防火)7′ (2134mm)
      (標準) ~
      8′ (2438mm).      		7′ (2134mm)
      (標準) ~
      10′ (3048mm).      		7′ (2134mm)
      (標準) ~
      8′ (2438mm).
      – 裝置的中心線和地板顏色39-5/8″ (1006mm).
      – 門縫1/4″ (6mm).
      Center CaseUniversal center case, heavy wrought steel and sintered metal parts.
      Device functions are determined by adaptation with type of trim.      		Heavy wrought steel assembly with top and bottom rod adjustors.
      Adjustment accessible through center case after installation.
      Top & Bottom Latch Case4-1/2″ × 2-1/8″ × 1-1/2″ (114mm × 54mm × 38mm).
      Center Case LatchboltStainless Steel, deadlocking, 3/4″ (19mm) throw.
      Top LatchboltStainless steel, Pullman type deadlocking, 5/8″ (16mm) throw.
      Bottom LatchboltStainless steel, Pullman type deadlocking, independent action 5/8″ (16mm) throw.
      Round slide bolt optional.
      Fire BoltAvailable for door openings up to 8′ (2438mm) wide × 10′ (3048mm) high. Specify suffix “LBR”.
      電子功能Can be interfaced with building security systems:
      – AL 警報用逃生√√√√√
      – DE 延遲逃生裝置√√√√
      – ELR Electric Latch Retraction√√√√
      – LM Latchbolt Monitoring√√√√√
      – RX Request to Exit√√√√√
      – SS Signal Switch√√√√
      – E 電子匣式鎖
      DoggingNOT available on fire exit hardware.
      Flat/hex key dogging standard.
      Dogging options available for LD, CD, ED (ELR).
      擋板
      – Panic
      — Top203/106 (roller type)216203/106 (roller type)
      — Middle103/106Z (roller type)103/106 (roller type)103 (roller type)
      — 底部227227227
      – Fire
      — Top108 (roller type)216108 (roller type)
      — Middle108 (roller type)108 (roller type)108 (roller type)
      — 底部227F227F227F
      鎖芯NOT furnished standard, specify when required.
      把手The device and trim are sold separately, easy to mix and match.
      Handing500 Series Trim field reversible.
      Device non-handed.
      Specify handing for 400 Series trim when ordering.
      扣件/安全帶Machine screws and wood screws are furnished standard.
      Sex Bolts (SNB)Required when used with wood, composite or non-reinforced hollow metal doors.
      擋板

      擋板

        Rim Device

        Rim Device

        Klacci 逃生門鎖 Rim Device 106 Rim StrikeKlacci 逃生門鎖 Rim Device 106Z Rim StrikeKlacci 逃生門鎖 Rim Device 108 Rim StrikeKlacci 逃生門鎖 Rim Device 103 Rim StrikeKlacci 逃生門鎖 Device 136 Rim StrikeKlacci 逃生門鎖 Device 136 Rim Strike
        P/N. 106
        Rim Strike         		P/N. 106Z
        Rim Strike         		P/N. 108
        Rim Strike         		P/N. 103
        Rim Strike         		P/N. 136
        Rim Strike
        For RIM / SVR / 3PT top strikeFor RIM / SVR / 3PT top strikeFor RIM / SVR / 3PT top strike
        For double door RIM / 3PT use with F170/F270 mullion        		For RIM / 3PTFor double door RIM / SVR / CVR combination with coordinator
        Klacci 美國國家標準一級Klacci Panic ApplicationKlacci 美國國家標準一級Klacci Panic ApplicationKlacci 美國國家標準一級Klacci Panic ApplicationKlacci Fire ApplicationKlacci Panic Application
        Vertical Rod (VR) Device

        Vertical Rod (VR) Device

        Top Strike
        Klacci 逃生門鎖 Vertical Rod (VR) Device 215 Top StrikeKlacci 逃生門鎖 Vertical Rod (VR) Device 216 Top StrikeKlacci 逃生門鎖 Vertical Rod (VR) Device 203 Top Strike
        P/N. 215
        Top Strike         		P/N. 216
        Top Strike         		P/N. 203
        Top Strike
        For flush transom SVR / 3PTFor CVRFor SVR / 3PT
        Klacci 美國國家標準一級Klacci Panic ApplicationKlacci Fire ApplicationKlacci Panic Application
        Flat Bottom Strike
        Klacci 逃生門鎖 Vertical Rod (VR) Device 225 Flat Bottom StrikeKlacci 逃生門鎖 Vertical Rod (VR) Device 226 Flat Bottom Strike
        P/N. 225
        Flat Bottom Strike         		P/N. 226
        Flat Bottom Strike
        Optional for SVR / CVR / 3PT
        round slide bolt        		Optional for SVR / CVR / 3PT
        round slide bolt
        Klacci 美國國家標準二級Klacci Panic ApplicationKlacci Fire ApplicationKlacci 美國國家標準二級Klacci Panic ApplicationKlacci Fire Application
        Bottom Strike
        Klacci 逃生門鎖 Vertical Rod (VR) Device 227F Bottom StrikeKlacci 逃生門鎖 Vertical Rod (VR) Device 224 Bottom Strike
        P/N. 227F
        Bottom Strike         		P/N. 224
        Bottom Strike
        Furnished standard for SVR / CVR / 3PTOptional for SVR / 3PT
        Klacci 美國國家標準一級Klacci Panic ApplicationKlacci Fire ApplicationKlacci 美國國家標準二級Klacci Panic ApplicationKlacci Fire Application
        Shim

        Shim

        Klacci 逃生門鎖 Shim 616819-010 For 106 Rim StrikeKlacci 逃生門鎖 Shim 616819-030 For 108 Rim StrikeKlacci 逃生門鎖 Shim 616819-050 For CVR top & bottom latches StrikeKlacci 逃生門鎖 Shim 618619-010 For 103 Rim strikeKlacci 逃生門鎖 Shim 618619-020 For 203 Strike
        P/N. 616819-010P/N. 616819-030P/N. 616819-050P/N. 618619-010P/N. 618619-020
        For 106 Rim Strike
        Two (2) pieces furnished standard        		For 108 Rim Strike
        Two (2) pieces furnished standard        		For CVR top & bottom latches Strike
        Sixteen (16) pieces furnished standard for Top and Bottom latches. Eight (8) pieces furnished standard for LBR         		For 103 Rim strike
        Two (2) pieces furnished standard        		For 203 Strike
        Two (2) pieces furnished standard
        Klacci 美國國家標準一級美國國家標準一級Klacci Panic ApplicationPanic Application
        Klacci 美國國家標準二級美國國家標準二級Klacci Fire ApplicationFire Application
        鎖芯

        鎖芯

        Cylinders are not furnished standard with the device or trim, specify when required. Schlage® C keyway, 6-pin standard, available in 630 or 626 finish. Small format Interchangeable core combinated/uncombinated also available. Specify type and finish when ordering.

          應用範圍

          應用範圍

          鎖芯分類應用範圍把手鎖芯Cyl. Length (Part/No.) Cylinder Cam
          匣式鎖芯
          Klacci 逃生門鎖 匣式門鎖 8字形可卸式鎖芯
          I/C
          Klacci 逃生門鎖 匣式門鎖 標準型鎖芯
          標準          		08 / 11 for
          RIM/SVR/CVR/3PT          		500標準1-1/8″ (441-102)440-0704
          I/C1-1/4″ (442-601)440-0708
          Cylinder DoggingAll Device標準1-1/4″ (441-103)440-0702
          I/C1-3/8″ (442-701)440-0706
          Rim Cylinder
          Klacci 逃生門鎖 Rim 8字形可卸式鎖芯
          I/C
          Klacci 逃生門鎖 標準型鎖芯
          標準          		03 for
          RIM/SVR/CVR/3PT
          (Must use with Cylinder Guard Part/No.611824-020)          		400標準
          I/C          		Tailpiece Length 3-1/8″ (79.6mm)
          03 / 09 / 12 for
          RIM/SVR/CVR/3PT          		500
          Cylinder Cam

          Cylinder Cam

          圖示Klacci 美國國家標準一級 逃生門鎖 Cylinder Cam 440-0702Klacci 美國國家標準一級 逃生門鎖 Cylinder Cam 440-0704Klacci 美國國家標準一級 逃生門鎖 Cylinder Cam 440-0718Klacci 美國國家標準一級 逃生門鎖 Cylinder Cam 440-0708
          DimensionX=1/4″ (6mm)
          Y=5/8″ (15mm)          		X=3/8″ (9.5mm)
          Y=3/4″ (19mm)          		X=1/4″ (6mm)
          Y=5/8″ (15mm)          		X=3/8″ (9.5mm)
          Y=3/4″ (19mm)
          Cam No.440-0702440-0704440-0718440-0708
          鎖心防護套

          鎖心防護套

          Klacci 2000 系列窄頭型逃生門鎖 611824-020 Cylinder Guard611824-020
          For use on 403R
          8字形可卸式鎖芯
          Klacci 8字形可卸式鎖芯“A” keyway standard supplied. Specify 6 or 7 pin, combinated or uncombinated and finish 606 or 626 when ordering. Consult factory for other keyways.
          Dogging

          Dogging

          Klacci 逃生門鎖 Dogging
          Klacci 逃生門鎖 Dogging LD Less doggingKlacci 逃生門鎖 Dogging CD Cylinder DoggingKlacci 逃生門鎖 Dogging HKD Flat/Hex Key DoggingKlacci 逃生門鎖 Dogging ED(ELR) Electrical Dogging
          LDCDHKDED(ELR)
          Less DoggingCylinder DoggingFlat/Hex Key DoggingElectrical Dogging
          Less dogging is available in all 2000 Series panic exit devices.Available for all models except for fire exit hardware. Cylinder dogging provides the ability to lock down the push bar with a key cylinder, allowing the door to be used in both push/pull mode. To order, specify “CD”. Requires the use of a 1-1/4″ (31.75mm) mortise cylinder (not furnished standard).
          中柱

          中柱

          ABKlacci 逃生門鎖 Typical Installation Two Rim Exit Devices with Removable Mullion, Same Direction
          Removable mullions are used with paired doors where a full width opening is only occasionally required. Doors are fitted with Rim exit devices and normally function as single doors. Available in 7′, 8′ or 10′ (2134mm, 2438mm or 3048mm) lengths.
          Klacci 逃生門鎖 170 Keyed Removable MullionKlacci 逃生門鎖 270 Non-Keyed Removable Mullion
          AB
          Model 170 / F170
          Keyed Removable Mullion          		Model 270 / F270
          Non-Keyed Removable Mullion
          Top and Bottom FittingsInvestment cast steel, furnished with steel anchors for floors.
          中柱2″ x 3″ (50.8mm x 76.2mm) steel.
          Stock size8′ (2438mm) length standard, can be cut for opening less than 8′ (2438mm).
          10′ (3048mm) length available upon request.
          顏色選擇600, 689, 695.
          UL ListedListed for 3-hour Fire Rated Exit Hardware.
          鎖芯Not furnished standard, keying is standard 1-1/8″ (28.5mm) mortise cylinder with cam.
          Specify with or without strikes when ordering.

          The head design of 170/F170

          Klacci 逃生門鎖 The head design of 170/F170 中柱
          Provides a secure, quick and easy means of removal. The mullion can be installed and locked without using key.
          Miscellaneous

          Miscellaneous

            Rod

            Rod

            Top Rod
            圖示裝置號碼Part No.Rod LengthFor Door Height
            Klacci 逃生門鎖 SVR/3PT Rod2200
            2500
            (SVR/3PT)            		616823-02036-1/8″ (916mm)7′
            616823-03048-1/8″ (1221mm)8′
            616823-030
            Add
            616823-040*            		48-1/8″ (1221mm)
            Add
            24″ (609mm)            		10′
            Klacci 2000 系列窄頭型逃生門鎖 CVR Rod2300
            (CVR)            		616823-07037″ (940mm)7′
            616823-08049″ (1245mm)8′
            616823-080
            Add
            616823-050*            		49″ (1245mm)
            Add
            23-7/8″ (605mm)            		10′
            * Extension Rod
            Bottom Rod

            For push bar location at 39-5/8″ (1006mm) from finished floor.

            圖示裝置號碼Part No.Rod Length
            Klacci 逃生門鎖 SVR/3PT Rod2200
            2500
            (SVR/3PT)            		616823-01031-7/8″ (807mm)
            Klacci 2000 系列窄頭型逃生門鎖 CVR Rod2300
            (CVR)            		616823-06031-3/4″ (805mm)
            裝飾用推把手

            裝飾用推把手

            Klacci 2000 系列窄頭型逃生門鎖 裝飾用推把手 D 樣式
            DP3 Active / DP4 Inactive
            • The push bar is active or inactive. A push/pull operation can be accomplished by using an outside dummy trim.
            • 尺寸: 3′ or 4′ (914mm or 1219mm).
            • 顏色選擇: 605, 606, 611,612, 613, 625, 626, 630.
            Fire Door – Applications and Listings

            Fire Door – Applications and Listings

            F2000 Series Narrow Head Fire Exit Devices Maximum Door Opening Applications and Listings

            逃生門鎖門用材料Single DoorDouble Door
            With 170 mullionWith 270 mullionVR/VR
            Same Direction            		VR/VR
            Double Egress
            F2100
            F2105
            RIM            		Metal3 Hours
            4′ × 8′            		3 Hours
            8′ × 8′            		3 Hours
            8′ × 8′
            F2200
            SVR            		Metal3 Hours
            4′ x 10′            		3 Hours
            8′ × 10′            		3 Hours
            8′ × 10′
            F2200
            LBR            		Metal3 Hours
            4′ x 10′            		3 Hours
            8′ × 10′            		3 Hours
            8′ × 10′
            F2300
            CVR            		Metal3 Hours
            4′ x 10′            		3 Hours
            8′ × 10′            		3 Hours
            8′ × 10′
            F2300
            LBR            		Metal3 Hours
            4′ x 10′            		3 Hours
            8′ × 10′            		3 Hours
            8′ × 10′
            F2500
            3PT            		Metal3 Hours
            4′ × 8′            		3 Hours
            8′ × 8′            		3 Hours
            8′ × 8′
            Metric conversion: 4′ (1219mm), 8′ (2438mm), 10′ (3048mm).

            注意:

            1. Fire exit device conforms to UL10C and UBC7-2.
            2. Fire exit device is applicable for wood door with 1-1/2-hour or 1/3-hour fire rating.
            3. Consult with door manufacturer for specific limitations on fire door assemblies.
            Typical Installation

            Typical Installation

            單扇門

            Klacci 逃生門鎖 Typical Installation 單扇門
            Rim Exit Device / Vertical Rod Exit Devices
            PanicRIM2100Up to 4′ × 10′ Door Size
            2105
            SVR2200
            CVR2300
            3PT2500
            Fire (3小時)RIMF2100Up to 4′ × 8′ Door Size
            F2105
            SVRF2200Up to 4′ × 10′ Door Size
            CVRF2300
            3PTF2500Up to 4′ × 8′ Door Size

            Double Egress Opening

            Klacci 逃生門鎖 Typical Installation Double Egress Opening
            Two Surface Vertical Rod Devices
            PanicSVR × SVR2200 × 2200Up to 8′ × 10′ Door Size
            Fire (3小時)SVR × SVRF2200 × F2200
            Two Concealed Vertical Rod Devices
            PanicCVR × CVR2300 × 2300Up to 8′ × 10′ Door Size
            Fire (3小時)CVR × CVRF2300 × F2300

            Double Egress Opening Less Bottom Rod

            Klacci 逃生門鎖 Typical Installation Double Egress Opening Less Bottom Rod
            Two Surface Vertical Rod Devices Less Bottom Rod
            PanicSVR × SVR2200LBR × 2200LBRUp to 8′ × 10′ Door Size
            Fire (3小時)SVR × SVRF2200LBR × F2200LBR
            注意: Fire Rated Door with Auxiliary Fire Bolt.
            Two Concealed Vertical Rod Devices Less Bottom Rod
            PanicCVR × CVR2300LBR × 2300LBRUp to 8′ × 10′ Door Size
            Fire (3小時)CVR × CVRF2300LBR × F2300LBR
            注意: Fire Rated Door with Auxiliary Fire Bolt.

            Two Rim Exit Devices with Removable Mullion, Same Direction

            Klacci 逃生門鎖 Typical Installation Two Rim Exit Devices with Removable Mullion, Same Direction
            Two Rim Exit Devices with Removable Mullion
            PanicRIM × RIM2100 × 2100Up to 8′ × 10′ Door Size
            2105 × 2105
            Fire (3小時)RIM × RIMF2100 × F2100Up to 8′ × 10′ Door Size
            F2105 × F2105
            注意: With 170 Keyed / 270 Non-Keyed Removable Mullion.
            Two Three-Point Latching Devices with Removable Mullion
            Panic3PT × 3PT2500 × 2500Up to 8′ × 10′ Door Size
            Fire (3小時)3PT × 3PTF2500 × F2500Up to 8′ × 8′ Door Size
            注意: With 170 Keyed / 270 Non-Keyed Removable Mullion.

            Two Vertical Rod Devices, Same Direction Less Bottom Rod (Do not use overlapping astragal)

            Klacci 逃生門鎖 Typical Installation Two Vertical Rod Devices, Same Direction Less Bottom Rod
            Surface Vertical Rod Devices Less Bottom Rod
            PanicSVR × SVR2200LBR × 2200LBRUp to 8′ × 10′ Door Size
            Fire (3小時)SVR × SVRF2200LBR × F2200LBR
            注意: Fire Rated Door with Auxiliary Fire Bolt.
            Concealed Vertical Rod Devices Less Bottom Rod
            PanicCVR × CVR2300LBR × 2300LBRUp to 8′ × 10′ Door Size
            Fire (3小時)CVR × CVRF2300LBR × F2300LBR
            注意: Fire Rated Door with Auxiliary Fire Bolt.

            Two Vertical Rod Devices, Same Direction (Do not use overlapping astragal)

            Klacci 逃生門鎖 Typical Installation Two Vertical Rod Devices, Same Direction
            Two Surface Vertical Rod Devices
            PanicSVR × SVR2200 × 2200Up to 8′ × 10′ Door Size
            Fire (3小時)SVR × SVRF2200 × F2200
            Two Concealed Vertical Rod Devices
            PanicCVR × CVR2300 × 2300Up to 8′ × 10′ Door Size
            Fire (3小時)CVR × CVRF2300 × F2300

            Vertical Rod Devices / RIM Exit Devices, Same Direction

            Klacci 逃生門鎖 Typical Installation Vertical Rod Devices/ RIM Exit Devices, Same Direction
            One Rim Exit Device × One Vertical Rod Device
            PanicRIM × SVR2100 × 2200Up to 8′ × 10′ Door Size
            2105 × 2200
            RIM × CVR2100 × 2300
            2105 × 2300
            Fire (3小時)RIM × SVRF2100 × F2200
            F2105 × F2200
            RIM × CVRF2100 × F2300
            F2105 × F2300

            下載

            Klacci 1000系列逃生門鎖 目錄

            Klacci 1000系列逃生門鎖 目錄
            9.18 MB

            Download
            Klacci 600 Series Pull Handle 目錄

            Klacci 600 Series Pull Handle 目錄
            9.18 MB

            Download
            Klacci 2000系列窄頭型逃生門鎖 目錄

            Klacci 2000系列窄頭型逃生門鎖 目錄
            6.14 MB

            Download
            Klacci 30系列逃生門鎖 目錄

            Klacci 30系列逃生門鎖 目錄
            4.42 MB

            Download
            Klacci CR系列順位器 目錄

            Klacci CR系列順位器 目錄
            2.07 MB

            Download
            連絡我們

            相關產品

            逃生門鎖

            逃生門鎖

            1000 系列逃生門鎖

            1000 系列逃生門鎖

            電子逃生門鎖

            電子逃生門鎖

            30 系列逃生門鎖

            30 系列逃生門鎖

            CR 系列順位器

            CR 系列順位器
