30系列逃生門鎖

The Product

The 30 Series Exit Devices are the result of continuous innovation to bring forth a product that can combine strength, durability, convenience and aesthetics. Simple design yet complete, it is your best choice for cost effective commercial applications.

通過美國國家標準 ANSI/BHMA A156.3-2014 一級鎖認證

Inherits from the excellent quality and performance of Klacci, the 30 Series exit device is certified to meet ANSI/UL305 and the ANSI/BHMA A156.3-2014 Grade 1 cycle test requirement. Other than the already rigorous testing standard, the latch needs to withstand a 20 lbs weight loading to it in the cycle test to make sure it stays latched during any viciousness attempts. Devices and trims are also UL/cUL listed for panic hardware or fire-rated hardware. 30 Series provides superior durability for high impact applications such as offices, schools, banks, assisted living facilities and other institutions or commercial buildings.

A gentle push for more convenient accessibility

Less Than 5 lbs of Push Force to Exit

Klacci 1000 系列 1105 F1105 Accessible Rim Exit Devices

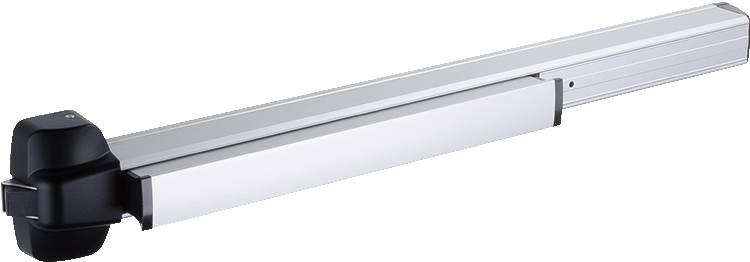

31/31 Accessible Rim Exit Devices
  • The push bar requires only 5 lbs, or less of force to retract the latch.
  • Operable with one hand without the need of using robust force.
  • Meets the 2010 ADA Standards 11B-309.4 and California Building Code 11B-309.4 operation.
  • Complies to the new ANSI/BHMA A156.3-2014 Grade 1 cycle test requirement for a net 20 to 22 lbf of load applied on the latch during testing.
  • Specify one for all your needs – panic or fire rated doors, high traffic exits, full accessibility areas.

Strength is Not the only Option, Exit Control Can Be Gentle

Without compromising any strength and durability of the Klacci 30 Series exit device, the accessible Rim Exit Device can be operated with 5 lbs of push force. Not only it meets the requirements of the 2010 ADA Standards and California Building Code 11B, the accessible rim exit devices are most suitable for accessibility demand from hospitals or health care centers.

The Exit Device for Anyone, Any Places

The accessible Rim Exit Device makes sure the exit can be operable with the least amount of force, while keeping the maximum strength. No one should be exempted from evacuation when it happens. Simply the choice of safety and security.

When Sequence Orders Matter

We all know one comes before two in numbers, safety comes ahead of convenience. Klacci凱樂奇 CR系列槓桿式順位器提供簡單而有效的方式確保雙扇門的門扇以正確順序關閉,為了防止門扇未正確順序關閉導致在緊急情況下可能引起的安全風險。

電子逃生門鎖

產品特點

The 30 Series Exit Devices are fabricated and blended with simplicity, strength, durability, aesthetics and installer-friendly innovations.

  • Devices and trims are designed for new or retrofit installation into other manufacturers’ exit devices and trims.
  • Made to comply with the highest safety and security standards in industry.
  • UL/cUL listed for panic hardware or 3-hour Fire Rated Exit Hardware.
  • Certified to ANSI/UL305 and ANSI/BHMA A156.3-2014 Grade 1.
Klacci 1000系列逃生門鎖 產品特點

Simple cylinder built in add-on kit.

Special plastic inserts and rubber bumpers reduce noise and don’t fail under high or low temperatures. Impervious to petroleum lubricants.

Standard high-performance engineering plastic.

Trim designed for fast and easy installation.

Alloy steel latch and deadlatching blade add perceived value.

Integrated end cap reduced projection minimizes catch hazard and add stability to the push bar to move smoothly regardless of where the pressure is applied on push bar.

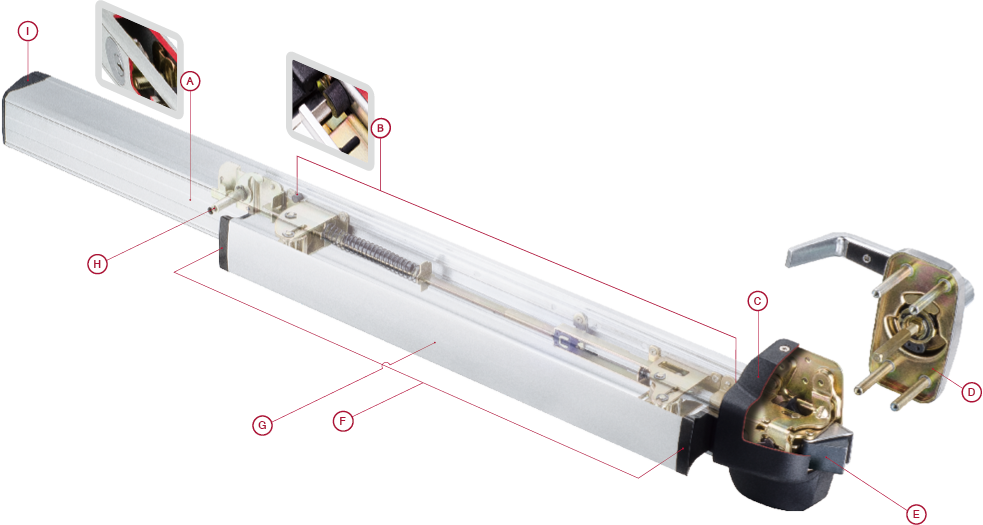

Push bar is smoothly surfaced. Light force applied to the push bar can release the latch. Accessible version is also available to meet the 2010 ADA Standards and Accessible Design to operate the device with 5 lbs of force.

Dogging can be done with an allen wrench, a small flat key or a flat blade screwdriver.

Flush end cap design.

裝置選項

詳細資訊

Device Material
顏色選擇

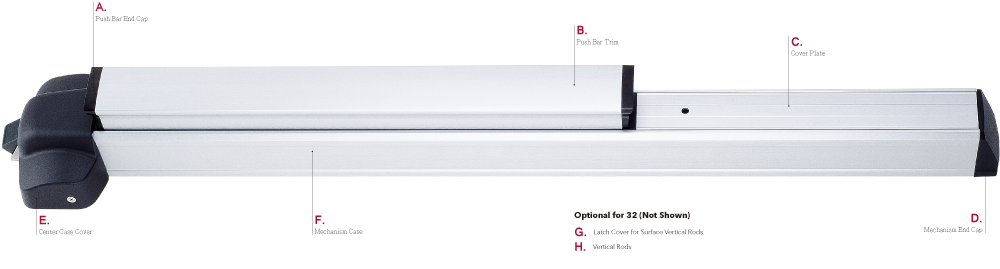

Klacci 30系列逃生門鎖 General Overview
顏色ANSI/BHMAUSD.E.G.AB.C.F.H.
Klacci 表面顏色 613 黑61310BPlasticPlated亮面丹銅
Klacci 表面顏色 628 霧面灰Satin Aluminum628US28PlasticPlated亮面丹銅
For other finishes please consult factory.
ANSI/
BHMA
操作Trim Option
700系列把手
01逃生專用N
02裝飾用拉把手702
03Night Latch, Key Retracts LatchboltN
08Key Locks or Unlocks Latchbolt708
09Night Latch, Key Retracts Latchbolt709
14Lever / Knob Always Active, No CylinderHL3014
注意: Device functions are field selectable with the removal of drive screw in back of center case and determined by the type of trim adaption.
Klacci 30系列逃生門鎖 700系列把手 Night Latch 8字形可卸式鎖芯Klacci 30系列逃生門鎖 700系列把手 Pull latch HL3014 Paddle Up
700系列把手30系列拉式把手
Klacci 30系列逃生門鎖 700系列把手 702 裝飾用拉把手Klacci 30系列逃生門鎖 700系列把手 702 裝飾用拉把手Klacci 30系列逃生門鎖 700系列把手 708 Key Locks or Unlocks Latchbolt
裝飾用門把Passage TrimNight Latch
Lever or knob rigid for pull operation
(For 02 function)
Lever or knob always active
(For 14 function)
Key retracts latchbolt. Lever or knob is rigid
(For 09 function)
  • Sleek design square rose produced by stamping.
  • Trims are designed to retrofit into other manufacturers’ devices.
  • 無方向性。
  • Trims are UL/cUL certified for ANSI/BHMA A156.3-2014 Grade 1 and 3-hour Fire Rated.
  • Specify lever or knob design. (“D” lever furnished standard, unless specified).
ANSI/BHMA02080914
Klacci 30系列逃生門鎖 700系列把手 702 裝飾用拉把手Klacci 30系列逃生門鎖 700系列把手 708 Key Locks or Unlocks LatchboltKlacci 30系列逃生門鎖 700系列把手 708 Key Locks or Unlocks LatchboltKlacci 30系列逃生門鎖 700系列把手 702 裝飾用拉把手Klacci 30系列逃生門鎖 700系列把手 Pull latch HL3014 Paddle Up
操作裝飾用拉把手Key Locks or Unlocks LatchboltNight Latch, Key Retracts LatchboltLever Always Active, No CylinderPull latch
Trim No.702708709714HL3014
裝置號碼31313131
32323232
鎖芯分類
Klacci 30系列逃生門鎖 700系列把手 708 Key Locks or Unlocks LatchboltKlacci 30系列逃生門鎖 700系列把手 Night Latch 8字形可卸式鎖芯
標準8字型
Paddle Direction

The paddle direction can be installed upwards or downwards according to the users’ preferace.

Klacci 30系列逃生門鎖 700系列把手 Pull latch HL3014 Paddle DownKlacci 30系列逃生門鎖 700系列把手 Pull latch HL3014 Paddle Up
Paddle DownPaddle Up
Lever / Grip Options
Lever Options
Klacci 逃生門鎖 把手 Lever Options D樣式Klacci 逃生門鎖 把手 Lever Options Q樣式
D樣式
(標準)
Q樣式
3132
應用範圍Offices, schools, banks, assisted living facilities and other institutions or commercial buildings.
認證Panic devices UL/cUL listed for UL305 and ANSI/BHMA A156.3-2014 Grade 1 Panic Hardware.
UL/cUL Fire rated for 3-hour Fire Exit Hardware, conforms to UL10C and UBC7-2. Also complies with NFPA 80 Fire doors and windows.
Exit devices, levers, trims and pulls comply with American Disability Act (ADA) and NFPA 101 life safety code.
挖門孔For new or retrofit installation into other manufacturers’ devices.
For maximum door opening applications and listings for fire exit devices.
– 中柱with/without
– 門厚1-3/4″ (45mm) ~ 2-1/4″ (57mm). Consult factory for other door thickness.
– Door Wide3′ (914mm)(標準) ~ 4′ (1219mm).
– Door High(Panic)7′ (2134mm)(standard) ~ 10′ (3048mm).
(Fire)7′ (2134mm)
(標準) ~
8′ (2438mm).
7′ (2134mm)
(標準) ~
10′ (3048mm).
– 裝置的中心線和地板顏色39-5/8″ (1006mm).
– 門縫1/4″ (6mm).
Center CaseUniversal center case, heavy wrought steel and sintered metal parts.
Device functions are determined by adaptation with type of trim.
Heavy wrought steel assembly with top and bottom rod adjustors.
Top & Bottom Latch Case4-1/2″ × 2-1/8″ × 1-1/2″ (114mm × 54mm × 38mm).
Center Case LatchboltStainless Steel, deadlocking, 3/4″ (19mm) throw.
Top LatchboltStainless steel, Pullman type deadlocking, 5/8″ (16mm) throw.
Bottom LatchboltStainless steel, Pullman type deadlocking, independent action 5/8″ (16mm) throw.
Round slide bolt optional.
Fire BoltAvailable for door openings up to 8′ (2438mm) wide × 10′ (3048mm) high. Specify suffix “LBR”.
電子功能Can be interfaced with building security systems:
– AL 警報用逃生
– DE 延遲逃生裝置
– ELR Electric Latch Retraction
– LM Latchbolt Monitoring
– RX Request to Exit
– SS Signal Switch
– E 電子匣式鎖
DoggingNOT available on fire exit hardware.
Flat/hex key dogging standard.
Dogging options available for LD, CD.
擋板
– Panic
— Top106Z (roller type)
— Middle106Z (roller type)
— 底部227
– Fire
— Top108 (roller type)
— Middle108 (roller type)
— 底部227F
鎖芯NOT furnished standard, specify when required.
把手The device and trim are sold separately, easy to mix and match.
門向Device & trim non-handed.
扣件/安全帶Machine screws and wood screws are furnished standard.
Sex Bolts (SNB)Required when used with wood, composite or non-reinforced hollow metal doors.
Klacci 美國國家標準一級美國國家標準一級Klacci Panic ApplicationPanic Application
Klacci 美國國家標準二級美國國家標準二級Klacci Fire ApplicationFire Application
Klacci 逃生門鎖 Rim Device 106Z Rim StrikeKlacci 逃生門鎖 Rim Device 108 Rim StrikeKlacci 逃生門鎖 Device 136 Rim Strike
P/N. 106Z
Rim Strike
P/N. 108
Rim Strike
P/N. 136
Rim Strike
For RIM / SVR / 3PT top strikeFor RIM / SVR / 3PT top strike
For double door RIM / 3PT use with F170/F270 mullion
For double door RIM / SVR / CVR combination with coordinator
Klacci 美國國家標準一級Klacci Panic ApplicationKlacci 美國國家標準一級Klacci Panic ApplicationKlacci Fire Application
Top Strike
Klacci 逃生門鎖 Vertical Rod (VR) Device 215 Top Strike
P/N. 215
Top Strike
For flush transom SVR / 3PT

Flat Bottom Strike
Klacci 逃生門鎖 Vertical Rod (VR) Device 225 Flat Bottom StrikeKlacci 逃生門鎖 Vertical Rod (VR) Device 226 Flat Bottom Strike
P/N. 225
Flat Bottom Strike
P/N. 226
Flat Bottom Strike
Optional for SVR / CVR / 3PT
round slide bolt
Optional for SVR / CVR / 3PT
round slide bolt
Klacci 美國國家標準二級Klacci Panic ApplicationKlacci Fire ApplicationKlacci 美國國家標準二級Klacci Panic ApplicationKlacci Fire Application

Bottom Strike
Klacci 逃生門鎖 Vertical Rod (VR) Device 227F Bottom StrikeKlacci 逃生門鎖 Vertical Rod (VR) Device 224 Bottom Strike
P/N. 227F
Bottom Strike
P/N. 224
Bottom Strike
Furnished standard for SVR / CVR / 3PTOptional for SVR / 3PT
Klacci 美國國家標準一級Klacci Panic ApplicationKlacci Fire ApplicationKlacci 美國國家標準二級Klacci Panic ApplicationKlacci Fire Application
Klacci 逃生門鎖 Shim 616819-010 For 106 Rim StrikeKlacci 逃生門鎖 Shim 616819-030 For 108 Rim Strike
P/N. 616819-010P/N. 616819-030
For 106 Rim Strike
Two (2) pieces furnished standard
For 108 Rim Strike
Two (2) pieces furnished standard

Cylinders are not furnished standard with the device or trim, specify when required. Schlage® C keyway, 6-pin standard, available in 630 or 626 finish. Small format Interchangeable core combinated/uncombinated also available. Specify type and finish when ordering.

鎖芯分類應用範圍鎖芯Cylinder Cam
匣式鎖心
Klacci 逃生門鎖 Mortise 8字形可卸式鎖芯
I/C

Klacci 逃生門鎖 Mortise 標準型鎖芯
標準
Dogging標準 / 8字型Tailpiece Length 3-1/8″ (79.6mm)
Klacci 8字形可卸式鎖芯“A” keyway standard supplied. Specify 6 or 7 pin, combinated or uncombinated and finish 606 or 626 when ordering. Consult factory for other keyways.
Klacci 逃生門鎖 Dogging
Klacci 逃生門鎖 Dogging LD Less doggingKlacci 逃生門鎖 Dogging CD Cylinder DoggingKlacci 逃生門鎖 Dogging HKD Flat/Hex Key Dogging
LDCDHKD
Less doggingCylinder DoggingFlat/Hex Key Dogging
Less dogging is available in all 30 Series panic exit devices.Available for all models except for fire exit hardware. Cylinder dogging provides the ability to lock down the push bar with a key cylinder, allowing the door to be used in both push/pull mode. To order, specify “CD”. Requires the use of a 1-1/4″ (31.75mm) mortise cylinder (not furnished standard).
ABKlacci 逃生門鎖 Typical Installation Two Rim Exit Devices with Removable Mullion, Same Direction
Removable mullions are used with paired doors where a full width opening is only occasionally required. Doors are fitted with Rim exit devices and normally function as single doors. Available in 7′, 8′ or 10′ (2134mm, 2438mm or 3048mm) lengths.
Klacci 逃生門鎖 170 Keyed Removable MullionKlacci 逃生門鎖 270 Non-Keyed Removable Mullion
AB
Model 170 / F170
Keyed Removable Mullion
Model 270 / F270
Non-Keyed Removable Mullion
Top and Bottom FittingsInvestment cast steel, furnished with steel anchors for floors.
中柱2″ x 3″ (50.8mm x 76.2mm) steel.
Stock size8′ (2438mm) length standard, can be cut for opening less than 8′ (2438mm).
10′ (3048mm) length available upon request.
顏色選擇600, 689, 695.
UL ListedListed for 3-hour Fire Rated Exit Hardware.
鎖芯Not furnished standard, keying is standard 1-1/8″ (28.5mm) mortise cylinder with cam.
Specify with or without strikes when ordering.
The head design of 170/F170
Klacci 逃生門鎖 The head design of 170/F170 中柱

Provides a secure, quick and easy means of removal. The mullion can be installed and locked without using key.

Top Rod
圖示裝置號碼Part No.Rod LengthFor Door Height

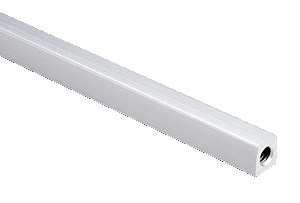

Klacci 逃生門鎖 Smooth Rod3236823150100038-3/16″ (970mm)7′
36823150100050-3/16″ (1275mm)8′
368231501000
Add
616823-040*
50-3/16″ (1275mm)
Add
24″ (609mm)
10′
Bottom Rod

For push bar location at 39-5/8″ (1006mm) from finished floor.

圖示裝置號碼Part No.Rod Length
Klacci 逃生門鎖 Smooth Rod3236823140100034-1/16″ (865mm)

F30 Series Fire Exit Devices

Maximum Door Opening Applications and Listings

逃生門鎖門用材料Single DoorDouble Door
With 170 mullionWith 270 mullionVR/VR
Same Direction
VR/VR
Double Egress
F31
RIM
Metal3小時
4′ × 8′
3小時
8′ × 8′
3小時
8′ × 8′
F32
SVR
Metal3小時
4′ x 10′
3小時
8′ × 10′
3小時
8′ × 10′
F32
LBR
Metal3小時
4′ x 10′
3小時
8′ × 10′
3小時
8′ × 10′
Metric conversion: 4′ (1219mm), 8′ (2438mm), 10′ (3048mm).

注意:

  1. Fire exit device conforms to UL10C and UBC7-2.
  2. Fire exit device is applicable for wood door with 1-1/2-hour or 1/3-hour fire rating.
  3. Consult with door manufacturer for specific limitations on fire door assemblies.
Single Door
Klacci 逃生門鎖 Typical Installation Single Door
Rim Exit Device / Vertical Rod Exit Devices
PanicRIM31Up to 4′ × 10′ Door Size
SVR32
Fire (3小時)RIMF32Up to 4′ × 8′ Door Size
SVRF32Up to 4′ × 10′ Door Size
Double Egress Opening
Klacci 逃生門鎖 Typical Installation Single Door
Two Surface Vertical Rod Devices
PanicSVR × SVR32 × 32Up to 8′ × 10′ Door Size
Fire (3小時)SVR × SVRF32 × F32
Double Egress Opening Less Bottom Rod
Klacci 逃生門鎖 Typical Installation Single Door
Two Surface Vertical Rod Devices Less Bottom Rod
PanicSVR × SVR32LBR × 32LBRUp to 8′ × 10′ Door Size
Fire (3小時)SVR × SVRF32LBR × F32LBR
注意: Fire Rated Door with Auxiliary Fire Bolt.
Two Rim Exit Devices with Removable Mullion, Same Direction
Klacci 逃生門鎖 Typical Installation Single Door
Two Rim Exit Devices with Removable Mullion
PanicRIM × RIM31 × 31Up to 8′ × 10′ Door Size
Fire (3小時)RIM × RIMF31 × F31Up to 8′ × 8′ Door Size
注意: With 170 Keyed / 270 Non-Keyed Removable Mullion.
Two Vertical Rod Devices, Same Direction Less Bottom Rod
(Do not use overlapping astragal)
Klacci 逃生門鎖 Typical Installation Single Door
Surface Vertical Rod Devices Less Bottom Rod
PanicSVR × SVR32LBR × 32LBRUp to 8′ × 10′ Door Size
Fire (3小時)SVR × SVRF32LBR × F32LBR
注意: Fire Rated Door with Auxiliary Fire Bolt.
Two Vertical Rod Devices, Same Direction
(Do not use overlapping astragal)
Klacci 逃生門鎖 Typical Installation Single Door
Two Surface Vertical Rod Devices
PanicSVR × SVR32 × 32Up to 8′ × 10′ Door Size
Fire (3小時)SVR × SVRF32 × F32
Vertical Rod Devices / RIM Exit Devices, Same Direction
Klacci 逃生門鎖 Typical Installation Single Door
One Rim Exit Device × One Vertical Rod Device
PanicRIM × SVR31 × 32Up to 8′ × 10′ Door Size
Fire (3小時)RIM × SVRF31 × F32

下載

連絡我們
