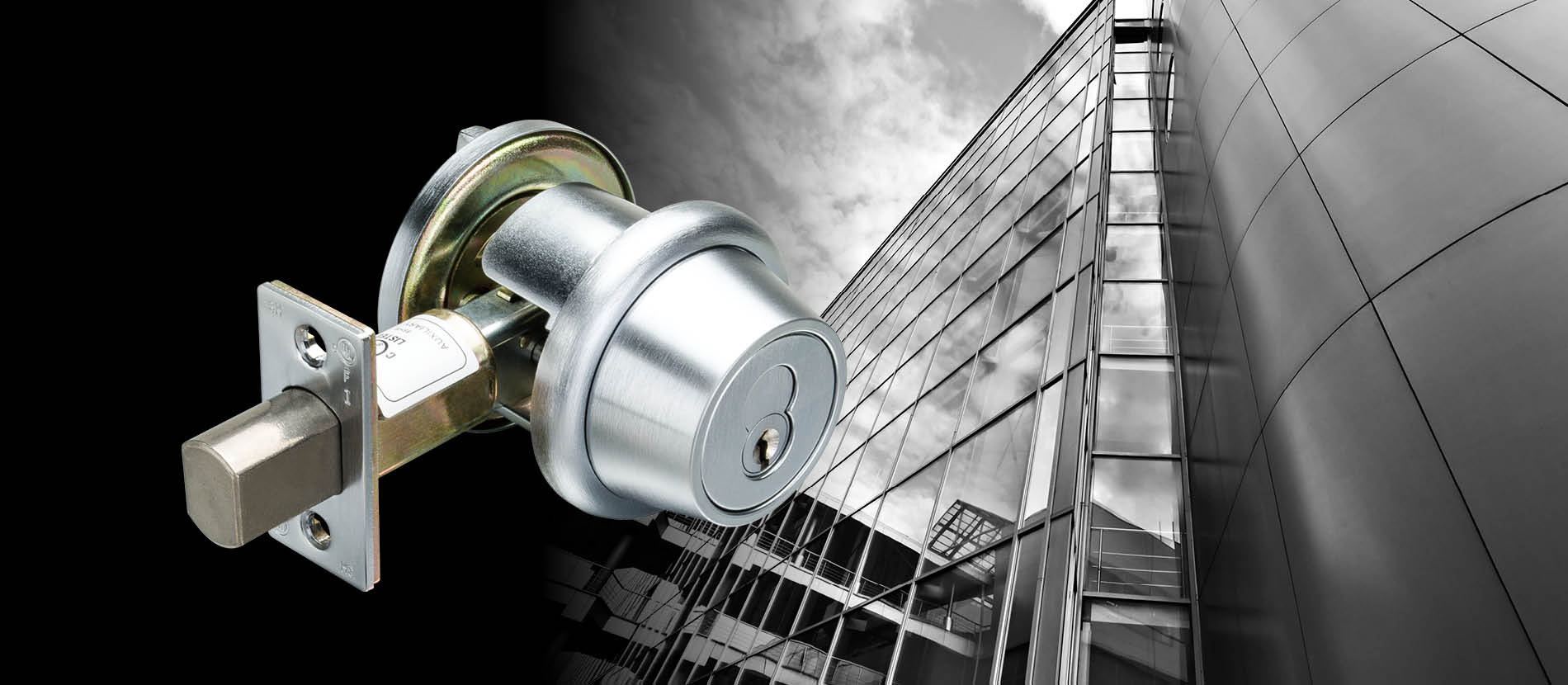

Klacci T6系列管型輔助鎖 商業大樓

T6系列管型輔助鎖

美國國家標準一級 Extra Heavy Duty

  • Reinforced turn knob assembly and 1/4″ (6.30mm) through-bolts added strength.
  • 1″ (25mm) Throw high strength, stainless steel deadbolt resists sawing and kick-in attacks.
  • Trim ring with protective sleeve protects the lock from attack through the door.
  • Exclusive design trim ring protects the lock from vertical attacks.
  • Free spinning solid brass cylinder collar resists wrenching or prying of the cylinder unit.
  • High-strength steel cylinder housing for added protection and durability. No exposed mounting screws on double cylinder function.
  • Cylinder housing accepts most manufacturers’ cylinder.
  • Extra Heavy duty steel support plate with 3″ (76mm) wood screws strengthens the wood jamb against “kick-in” attacks and greatly enhances
認證
  • UL listed for “A” label (3 hours) single swinging door (4’x8′).

  • 通過美國國家標準 ANSI/BHMA A156.5 一級鎖認證。
Exposed Trim
  • Solid brass. Cylinder ring and thumbturn are pressure die-cast, plated to match finished indicated.
門距
  • 標準2-3/4″ (70mm),選配2-3/8″ (60mm)。
Through bolt
  • Supplied with two 1/4″ (6.30mm) steel through bolts.
輔助栓
  • 標準1-1/8″ x 2-1/4″ (29mm x 57mm),選配1″ x 1-1/4″ (25mm x 32mm)。

  • Self adjustable for beveled door.
擋板
  • Square corner, 1-1/8″ x 2-3/4″ (29mm x 70mm), no lip, furnished with dust box and door frame support plate.
Door range
  • 1-3/8″ (35mm) ~ 2″ (51mm) standard, available to 2-1/2″ (64mm) upon specified.
鎖芯
  • Solid brass, “C” keyway, 6-pins. Supplied with two nickel silver keys.
8字形可卸式鎖芯
  • SFIC: 6珠或7珠實心銅彈子鎖芯,可互換Best® 及Falcon® 原廠鎖芯。

  • 6珠實心銅彈子鎖芯,可互換Schlage® 鎖芯。

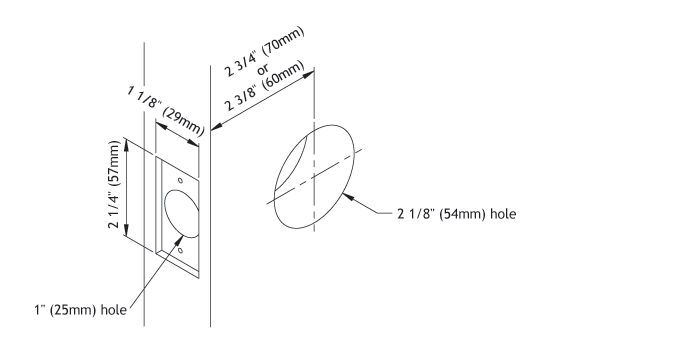

Klacci T6系列管型輔助鎖 挖門孔

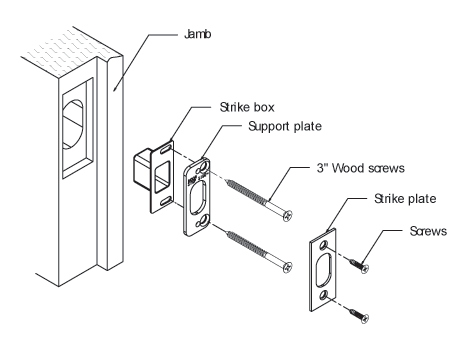

Each T6 Series is standard supplied with a heavy duty steel support plate and two 3″ wood screws to strengthen the wood jamb against “kick-in” attacks and enhance the security effectiveness of the lock.

Klacci T6系列管型輔助鎖 Door Frame Support Plate
Function Code Number詳細內容 ANSI/BHMA

有多種表面顏色選擇可搭配您的門扇和五金配件。

顏色ANSI/BHMAUS
Klacci 表面顏色 605 亮面黃銅亮面黃銅6053
Klacci 表面顏色 606 砂面黃銅砂面黃銅6063
Klacci 表面顏色 611 亮面丹銅亮面丹銅6119
Klacci 表面顏色 612 砂面丹銅砂面丹銅61210
Klacci 表面顏色 613 黑61310B
Klacci 表面顏色 625 亮鉻亮鉻62526
Klacci 表面顏色 626 霧鉻霧鉻62626D
Klacci 表面顏色 630 砂面不鏽鋼砂面不鏽鋼63032D
