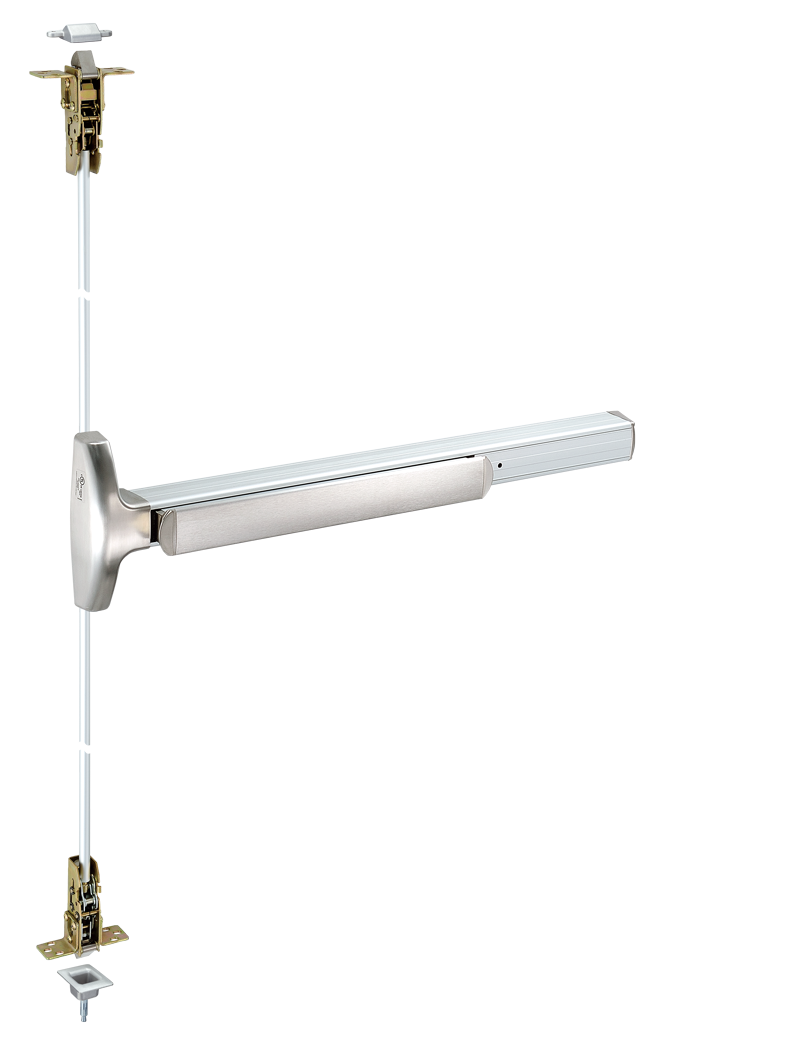

應用範圍 | Offices, schools, banks, assisted living facilities and other institutions or commercial buildings. |
Stile | Minimum width 2″ (51mm). |
認證 | Panic devices UL/cUL listed for UL305 and ANSI/BHMA A156.3-2014 Grade 1 Panic Hardware. UL/cUL Fire rated for 3-hour Fire Exit Hardware, conforms to UL10C and UBC7-2. Also complies with NFPA 80 Fire doors and windows. Exit devices, levers, trims and pulls comply with American Disability Act (ADA) and NFPA 101 life safety code. |
挖門孔 | For new or retrofit installation into other manufacturers’ devices. For maximum door opening applications and listings for fire exit devices. |
– 中柱 | |
– 門厚 | 1-3/4″ (45mm) ~ 2-1/4″ (57mm). Consult factory for other door thickness. |
– Door Wide | 3′ (914mm)(標準) ~ 4′ (1219mm). |
– Door High | (Panic) | 7′ (2134mm)(標準) ~ 10′ (3048mm). |
(Fire) | 7′ (2134mm)(標準) ~ 10′ (3048mm). |
– 裝置的中心線和地板顏色 | 39-5/8″ (1006mm). |
– 門縫 | 1/4″ (6mm). |

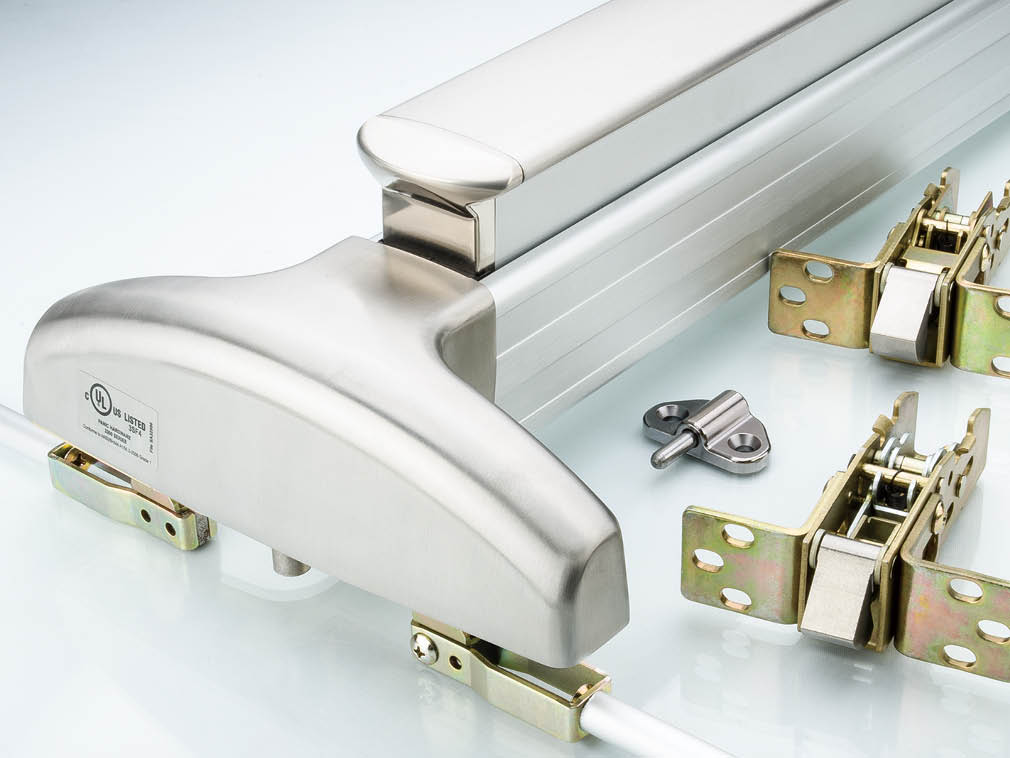

Center Case | Heavy wrought steel assembly with top and bottom rod adjustors. Adjustment accessible through center case after installation. |
Top & Bottom Latch Case | 4-1/2″ × 2-1/8″ × 1-1/2″ (114mm × 54mm × 38mm). |
Center Case Latchbolt | Stainless Steel, deadlocking, 3/4″ (19mm) throw. |
Top Latchbolt | Stainless steel, Pullman type deadlocking, 5/8″ (16mm) throw. |
Bottom Latchbolt | Stainless steel, Pullman type deadlocking, independent action 5/8″ (16mm) throw. Round slide bolt optional. |
Fire Bolt | Available for door openings up to 8′ (2438mm) wide × 10′ (3048mm) high. Specify suffix “LBR”. |
電子功能 | Can be interfaced with building security systems: |
– AL 警報用逃生 | √ |
– DE 延遲逃生裝置 | √ |
– ELR Electric Latch Retraction | √ |
– LM Latchbolt Monitoring | √ |
– RX Request to Exit | √ |
– SS Signal Switch | √ |
– E 電子匣式鎖 | |
Dogging | NOT available on fire exit hardware. Flat/hex key dogging standard. Dogging options available for LD, CD, ED (ELR). |
擋板 | |
– Panic | |
— Top | 216 |
— Middle | |
— 底部 | 227 |
– Fire | |
— Top | 216 |
— Middle | |
— 底部 | 227F |
鎖芯 | NOT furnished standard, specify when required. |
把手 | The device and trim are sold separately, easy to mix and match. |
門向 | 500 Series Trim field reversible. Device non-handed. Specify handing for 400 Series trim when ordering. |
扣件/安全帶 | Machine screws and wood screws are furnished standard. |
Sex Bolts (SNB) | Required when used with wood, composite or non-reinforced hollow metal doors. |
