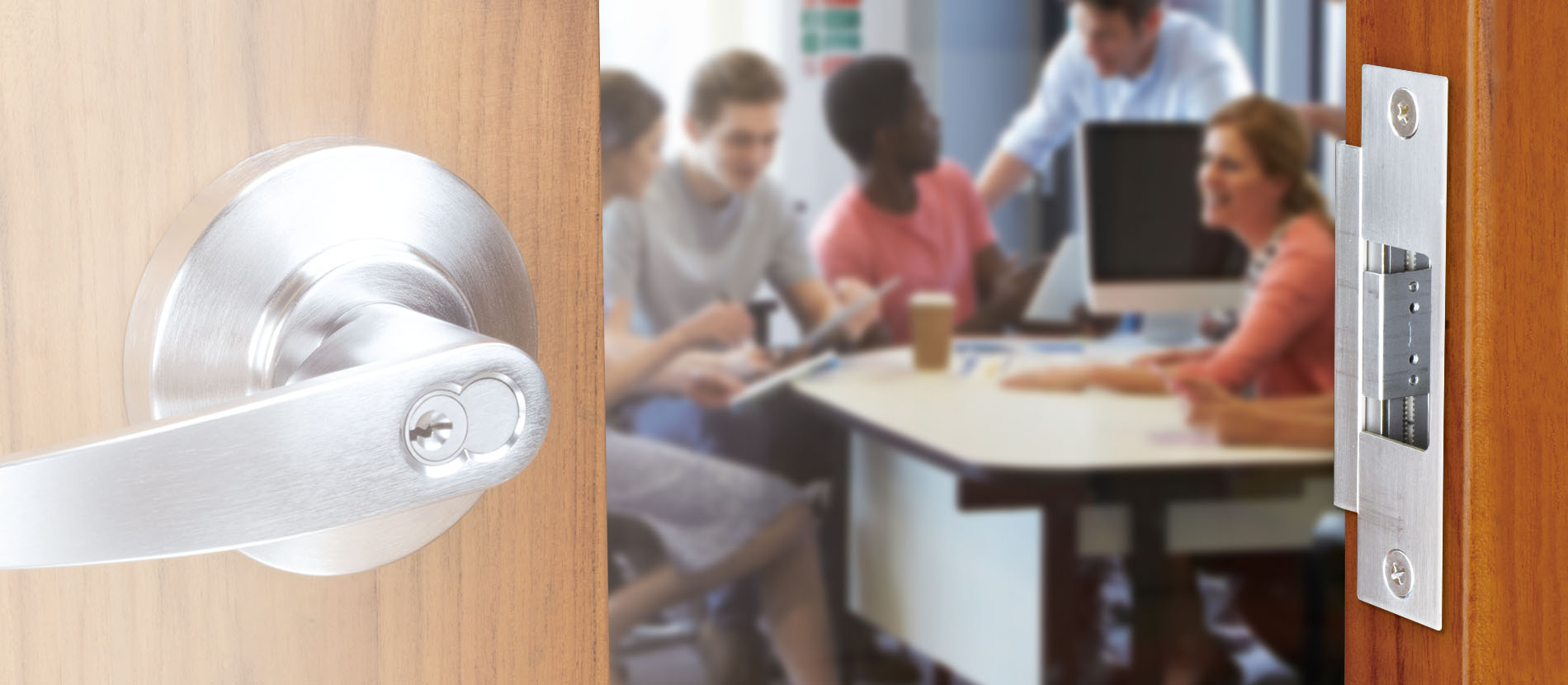

ES100 Electric Strikes classroom

ES100 Electric Strikes

For cylindrical lock, mortise lock & mortise lock exit device.

ANSI Grade 1 Door Hardware

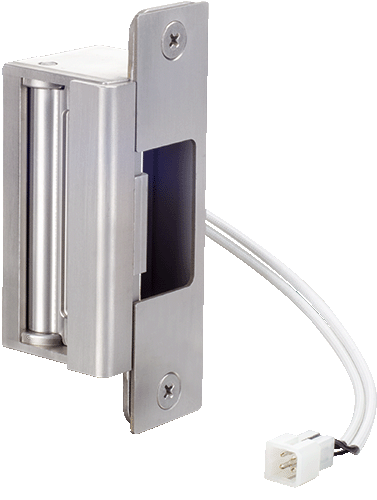

Klacci ES100 Electric Strikes
  • Field selectable fail secure / fail safe.
  • Field adjustable integrated shim.
  • Non-handed.
  • Accommodates for cylindrical lock, mortise lock & mortise lock exit device.
  • Accommodates 1/2″~1-3/4″ (12.7mm ~19.1mm) latch projection.
  • Accommodates 1″ (25.4mm) deadbolt.
Certification / Compliance
  • ANSI/BHMA A156.13 Grade 1.

  • UL Listed for 3-Hour fire rating.
Optional
  • LBM – Latchbolt monitor

  • LCM – Locking cam monitor

  • EB – Entry buzzer
Frame Application
  • Metal.

  • Wood.

  • Aluminum.
Electrical
(continuous duty)
  • 12 VDC, 0.36 Amp.

  • 24 VDC, 0.18 Amp.
Lock Mode
  • FSE – Fail-secure

  • FS – Fail-safe
Monitor
  • LCM – Locking cam monitor
Accessories
  • LBM – Latchbolt monitor

  • EB – Entry buzzer

  • BR – Bridge rectifier (AC to DC)

  • FP-C – Centerline Faceplate, 1-8/3″ x 9″ (34.9 mm x 228.6 mm)

  • FP-O – Offset Faceplate, 1-8/3″ x 9″ (34.9 mm x 228.6 mm)
Klacci ES100 Electric Strikes Faceplate FP-C For cylindrical lock mortise lock exit devicesKlacci ES100 Electric Strikes Faceplate FP- O For mortise lock
FP-CFP-O
For cylindrical lock / mortise lock exit devicesFor mortise lock
Klacci HL Series Pull Trim Dimensions
Pull Trim

A wide selection of finishes are available to match with your door and other hardware.

ColorANSI/BHMAUS
Klacci finishes 605 Polished BrassPolished Brass6053
Klacci finishes 606 Satin BrassSatin Brass6063
Klacci finishes 611 Polished BronzePolished Bronze6119
Klacci finishes 612 Satin BronzeSatin Bronze61210
Klacci finishes 613 Dark Oxidized Satin BronzeDark Oxidized Satin Bronze61310B
Klacci finishes 625 Polished ChromePolished Chrome62526
Klacci finishes 626 Satin ChromeSatin Chrome62626D
Klacci finishes 630 Satin Stainless SteelSatin Stainless Steel63032D
