Klacci منسقات الباب CR سلسلة منسق الأعمدة CR-32

Patent No. 9,476,240 B1

منسق الأعمدة

CR-32 / CR-42 / CR-52 / CR-60 / CR-72

Klacci’s CR Series Bar Coordinators offer a simple yet effective way of regulating double door entries. These products guarantee a correct order of door closing and prevent that any entry that is not properly closed may cause a safety concern in case of emergency.

الخواص
  • The lever mechanism on the active door side holds the active door open until a trigger mechanism releases it when the passive door closes.
  • An adjustable override mechanism allows the active door to close first in case that an excessive force is applied on it to protect the door as well as the coordinator from further damage.
  • These units are compatible with flush bolts, door closers and other double door hardware for a more complete application.
الاعتماد/ الامتثال
  • Conforms to ANSI/BHMA A156.3 Type 21A (Grade 1).
  • UL/cUL Fire Rated for 3-Hour Fire Door Hardware, conforms to UL10C.
Bar Coordinator Length
  • The bar coordinator standard length should be equal to the active door’s width (X) plus 1/2 the inactive door’s width (Y).
  • For cases where above condition cannot be met, the bar coordinator length must be at least 6″ (152.4 mm) longer than the active door width (X).
  • The bar coordinator length must not exceed the overall frame opening between stops (O).

Note: Standard stop thickness (S) is of 5/8″ (16 mm).

Klacci منسقات الباب CR سلسلة منسق الأعمدة CR-32 Bar Coordinator Length English

Examples:

  • Active door width (X): 42″ (1066.8 mm)
    Inactive door width (Y): 42″ (1066.8 mm)
    Recommended coordinator: CR-60
  • Active door width (X): 36″ (914.4 mm)
    Inactive door width (Y): 18″ (457.1 mm)
    Recommended coordinator: CR-42
Cutout Type Ordering Information

Bar coordinators may require an additional cutout in order to use with surface or concealed vertical rod exit devices. Please check the following chart for the type of cutout needed:

Cutout TypeDoor TypeExit Device ModelLatch backsetLatch TypeDoor application
A-TypeMetal doorFor Klacci:
1300/F1300
F2300
2-3/4″
(69.9mm)
Plunger ReleasePair of 30″ (762.0mm) Doors (For CR-42)
Pair of 36″ (914.4mm) Doors (For CR-52)
Pair of 42″ (1066.8mm) Doors (For CR-60)
Pair of 48″ (1219.2mm) Doors (For CR-72)
Pair of 56″ (1422.4mm) Doors (For CR-72)
Pair of 60″ (1524.0mm) Doors (For CR-72)
For VON DUPRIN:
98/9947
98/9948-F
33/3547
33/3548-F
B-TypeWood doorFor Klacci:
2300
1-5/16″
(33.3mm)
Plunger Release
For VON DUPRIN:
98/9947WDC
98/9947WDC-F
33/3547WDC
33/3547WDC-F
C-TypeMetal doorFor VON DUPRIN:
8847-F
5547-F
2-3/8″
(60.3mm)
Plunger Release Bracket
Note: No applicable cutout type for CR-32.

If the product model or door application is not listed on the chart or a different latch backset dimension is used, please provide the following information when ordering:

  1. Exit device’s product model and manufacturer’s template.
  2. Active door width (X)
  3. Inactive door width (Y)
  4. Latch backset (L)
  5. Stop thickness (S) if other than 5/8″ (15.9 mm)
  6. Opening between stops (O)
Klacci منسقات الباب CR سلسلة منسق الأعمدة CR-32 Bar Coordinator Length English
المواد

Aluminum

الحجم
موديلالطولعرضارتفاع
CR-3232″ (812.8mm)1-5/8″ (41.3mm)5/8″ (15.9mm)
CR-4242″ (1066.8mm)1-5/8″ (41.3mm)5/8″ (15.9mm)
CR-5252″ (1320.8mm)1-5/8″ (41.3mm)5/8″ (15.9mm)
CR-6060″ (1524.0mm)1-5/8″ (41.3mm)5/8″ (15.9mm)
CR-7272″ (1828.8mm)1-5/8″ (41.3mm)5/8″ (15.9mm)
التشطيبات
اللونANSI/BHMAUS
Klacci التشطيبات 628 Satin Aluminum, Clear AnodizedSatin Aluminum, Clear Anodized62828
Klacci التشطيبات 707 Bright Brass AnodizedBright Brass Anodized7073
Klacci التشطيبات 711 Flat Black AnodizedFlat Black Anodized71119
Klacci منسقات الباب CR سلسلة منسق الأعمدة CR-32

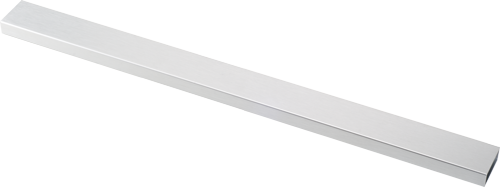

Filler Bar

FLB-20 / FLB-32 / FLB-48

الخواص

The filler bar can be used to fill the gap between the end of the bar coordinator and the inactive door’s stop for more pleasant aesthetics.

Ordering Information

The table below shows the standard matching between the bar coordinator and the filler bar.

If other lengths are required please specify before ordering.

Door WidthBar Coordinator ModelFiller Bar Model
Pair of 24″ (609.6mm) DoorsCR-32FLB-20
Pair of 30″ (762.0mm) DoorsCR-42FLB-20
Pair of 36″ (914.4mm) DoorsCR-52FLB-20
Pair of 42″ (1066.8mm) DoorsCR-60FLB-32
Pair of 48″ (1219.2mm) DoorsCR-72FLB-32
Pair of 56″ (1422.4mm) DoorsCR-72FLB-48
Pair of 60″ (1524.0mm) DoorsCR-72FLB-48
المواد

Aluminum

الحجم
موديلالطولعرضارتفاع
CR-3232″ (812.8mm)1-5/8″ (41.3mm)5/8″ (15.9mm)
CR-4242″ (1066.8mm)1-5/8″ (41.3mm)5/8″ (15.9mm)
CR-5252″ (1320.8mm)1-5/8″ (41.3mm)5/8″ (15.9mm)
CR-6060″ (1524.0mm)1-5/8″ (41.3mm)5/8″ (15.9mm)
CR-7272″ (1828.8mm)1-5/8″ (41.3mm)5/8″ (15.9mm)
التشطيبات
اللونANSI/BHMAUS
Klacci التشطيبات 628 Satin Aluminum, Clear AnodizedSatin Aluminum, Clear Anodized62828
Klacci التشطيبات 707 Bright Brass AnodizedBright Brass Anodized7073
Klacci التشطيبات 711 Flat Black AnodizedFlat Black Anodized71119

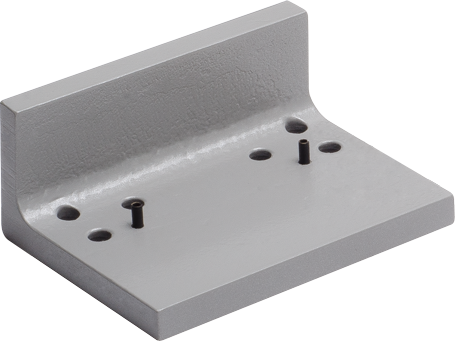

Klacci منسقات الباب CR سلسلة Mounting Bracket MB-1F
MB-1F

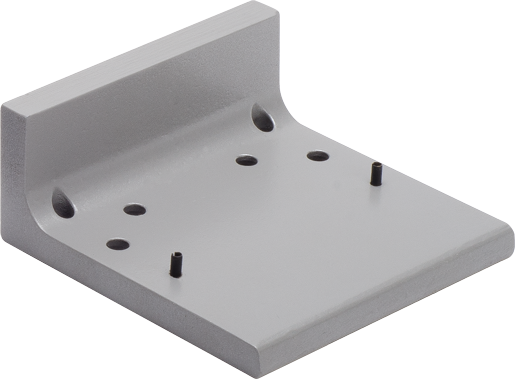

Klacci منسقات الباب CR سلسلة Mounting_Bracket_MB-2F
MB-2F

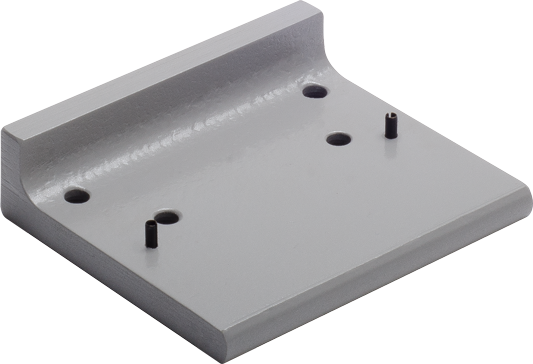

Klacci منسقات الباب CR سلسلة_Mounting_Bracket_MB-3F
MB-3F

Mounting Bracket

MB-1F / MB-2F / MB-3F

الخواص

The mounting bracket can be installed along with fire-rated hardware, such as parallel arm closers and surface vertical rod exit devices, used for stop mounted hardware to be properly installed without damaging the bar coordinator.

Note: Stop mounted hardware will need to be lowered to compensate for the height of the Bar Coordinator and Mounting Brackets.

المواد

Steel

الحجم
موديلالطولعرضارتفاع
MB-1F4″ (101.6 mm)3″ (76.2 mm)1-5/8″ (41.3 mm)
MB-2F4″ (101.6 mm)4″ (101.6 mm)1-5/8″ (41.3 mm)
MB-3F4″ (101.6 mm)3-1/2″ (88.9 mm)1″ (25.4 mm)
التشطيبات
اللونANSI/BHMAUS
Klacci التشطيبات 689 Aluminum PaintedAluminum Painted68928
Klacci التشطيبات 600 Primed for PaintingPrimed for Painting600P
Klacci منسقات الباب CR سلسلة منسق الأعمدة CR-32

Patent No. 8,595,980 B1

منسق الجاذبية

CR-07 / CR-09

الخواص
  • يتم استخدام منسق الجاذبية على الأبواب المزدوجة وذلك لأجل السماح للأبواب غير الفعالة بالقفل قبل الأبواب الفعالة.
  • توفر بكرات النايلون والمطاط تشغيل هادئ وفعال وتساعد على حماية الأبواب من التلف.
الاعتماد/ الامتثال
  • Conforms to ANSI/BHMA A156.3 Type 21B (Grade 2).
  • UL/cUL Fire Rated for 3-Hour Fire Door Hardware, conforms to UL10C.
Astragal LocationWithout Carry Open BarWith Carry Open Bar
CR-07CR-09CR-07CR-09
A No Astragal1’6″ ~ 4’0″
(457.2mm ~
1219.2mm)
2’6″ ~ 4’0″
(762mm ~
1219.2mm)
1’6″ ~ 2’6″
(457.2mm ~
762mm)
2’6″ ~ 4’0″
(762mm ~
1219.2mm)
B Pull Side, Active Door (Standard)
C Push Side, Inactive Door1’6″ ~ 3’4″
(457.2mm ~
1016mm)
2’6″ ~ 4’0″
(762mm ~
1219.2mm)
N/AN/A
D B + C
Note: Astragal Overlap: 3/4″ (19.1mm) – Standard.
المواد

Brass

الحجم
موديلإسقاط
CR-077″ (177.8mm)
CR-099″ (228.6mm)
التشطيبات
اللونANSI/BHMAUS
Klacci التشطيبات 626 ساتان/ كرومساتان/ كروم62626D
Klacci التشطيبات 613 برونز الساتان المؤكسد القاتمبرونز الساتان المؤكسد القاتم61310B
Klacci منسقات الباب CR سلسلة منسق الأعمدة CR-32

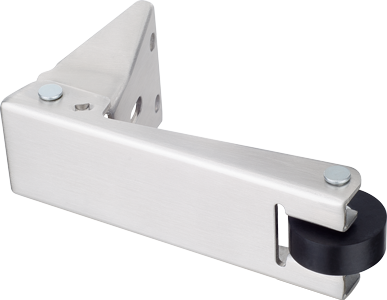

عمود فتح حمال

COB

الخواص
  • When the inactive door is opened, the carry open bar provides the automatic opening of the active door as well.
  • The carry open bar cannot be installed along with flush bolts.
  • Door coordinator accessory for fire-rated application.
الاعتماد/ الامتثال
  • Conforms to ANSI/BHMA A156.3 Type 21 (Grade 1).
المواد

Stainless Steel

التشطيبات
اللونANSI/BHMAUS
Klacci التشطيبات 630 ساتان/ فولاذ غير قابل للصدأساتان/ فولاذ غير قابل للصدأ63032D
Klacci التشطيبات 613 برونز الساتان المؤكسد القاتمبرونز الساتان المؤكسد القاتم61310B
