iF-01 圓柱形門鎖

Your solution for quick and easy installation – Easily install or retrofit to current door jamb and preparation

Brilliant Design and Functionality for Your Every Need

Nothing says more about a product than a flexible one that not only fulfills what it has been designed for but takes it up to a whole new level of convenience and performance.

The iF-01 model has been integrated into a standard cylindrical lockset, allowing you to easily retrofit into your existing door preparation, so no additional hole drilling is required. Plus, it’s powered by 4 AA alkaline batteries with a lifespan of up to one year, so you can say goodbye to complicated wiring. Installation is easy and fast, which can be done using a few simple tools and completed within a couple of minutes.

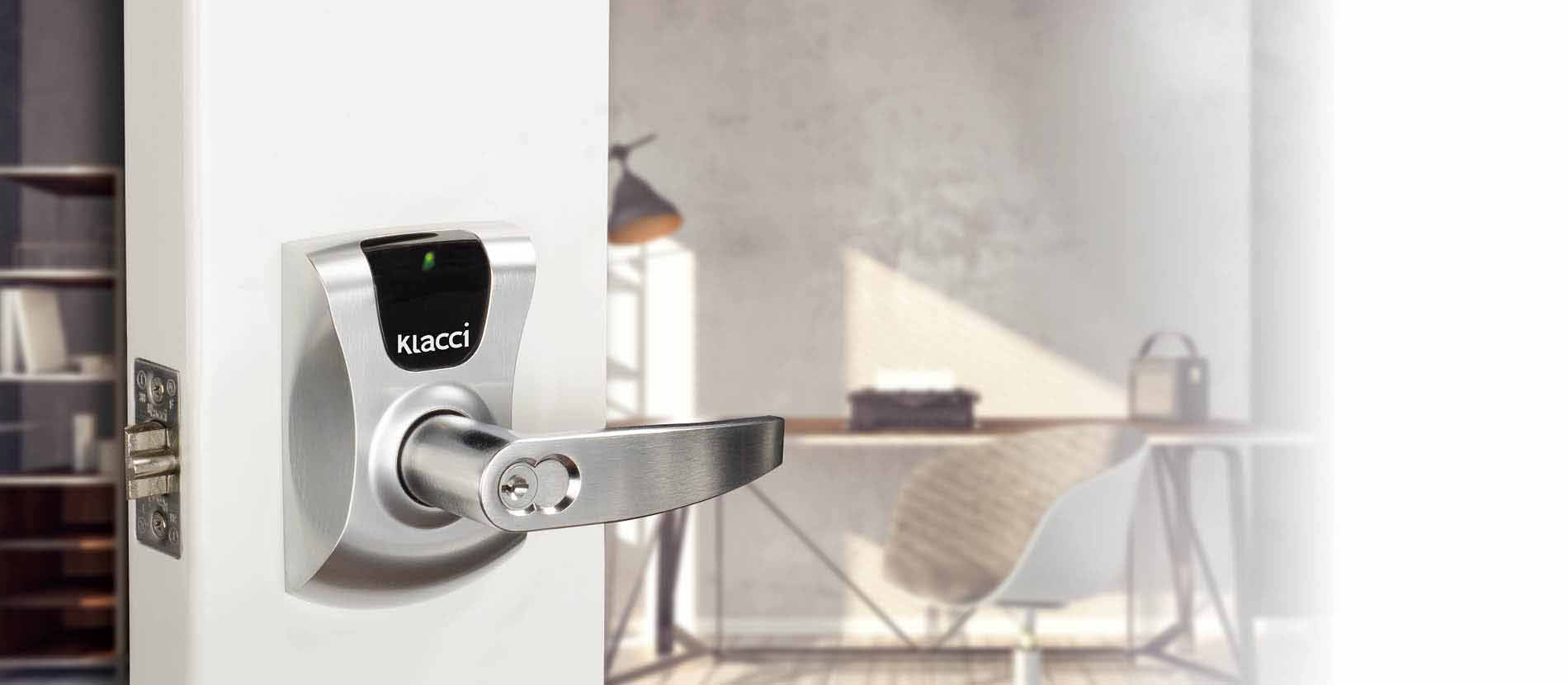

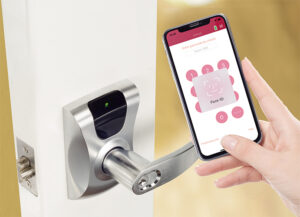

外側

符合ANSI / BHMA A156.2 圓柱形鎖法規的一級鎖要求
適用於ANSI A115.2 安裝法規
新門安裝或舊鎖替換都同樣輕鬆簡單
常開(HOLD OPEN)和勿擾(PRIVACY)模式為標準功能

居家、辦公室、學校、醫院、酒店、宿舍、民宿。
簡易快速安裝和安全性防護的理想選擇

認證	UL listed for “A” label (3 hours) single swinging door (4’x8′). 通過美國國家標準 ANSI/BHMA A156.2 Grade 1 Cylindrical Lock 認證。 UL10C Standard for positive pressure fire tests of door assemblies.
挖門孔	適用於ANSI A115.2 安裝法規。
門距	標準2-3/4″ (70mm)，選配2-3/8″ (60mm)、3-3/4″ (95mm)及 5″ (127mm)。
門厚	標準1-1/2″ (38mm) ~ 2″ (50.8mm)木門或鐵門。 Please consult factory for thicker door availabilities.
門栓	長1/2″ (12.5mm), 通過UL認證, 可調整面板。 3/4″ (19mm) throw fire door deadlatch available.
開門方向	無方向性。
擋板	標準ANSI擋板，選配T型擋板或全唇型擋板。
鎖芯	標準6珠”C”溝，每組鎖兩把鑰匙，共用Schlage^® 原廠鎖芯。
8字形可卸式鎖芯	SFIC: 6珠或7珠實心銅彈子鎖芯，可互換Best^® 及Falcon^® 原廠鎖芯。 FSIC: 6珠實心銅彈子鎖芯，可互換Schlage^® 鎖芯。
把手	鋅合金把手，鍛造黃銅套盤，隱藏式螺絲。
鑰匙	通用鑰匙或主鑰匙。
