Klacci 1000 Series Exit Devices

1000 Series Exit Devices

The Product

1000 Series Exit Devices and Trims are designed for new or retrofit installation into other manufacturers’ devices. Push Bar assembly’s smooth and reduced projection minimizes catch hazard. Device function is field selectable by adaptation with selected type of trim. A full complement of lever trim is available in wide range of architectural finishes.

The ANSI/BHMA A156.3-2014 Grade 1

Inherits from the excellent quality and performance of Klacci, the 1000 Series exit device is certified to meet ANSI/UL305 and the ANSI/BHMA A156.3-2014 Grade 1 cycle test requirement. Other than the already rigorous testing standard, the latch needs to withstand a 20 lbs weight loading to it in the cycle test to make sure it stays latched during any viciousness attempts. Devices and trims are also UL/cUL listed for panic hardware or fire-rated hardware. 1000 Series provides superior durability for high impact applications such as offices, schools, banks, assisted living facilities and other institutions or commercial buildings.

A gentle push for more convenient accessibility

Less Than 5 lbs of Push Force to Exit

Klacci 1000 Series 1105 F1105 Accessible Rim Exit Devices
1105/F1105 Accessible Rim Exit Devices
  • The push bar requires only 5 lbs, or less of force to retract the latch.
  • Operable with one hand without the need of using robust force.
  • Meets the 2010 ADA Standards 11B-309.4 and California Building Code 11B-309.4 operation.
  • Complies to the new ANSI/BHMA A156.3-2014 Grade 1 cycle test requirement for a net 20 to 22 lbf of load applied on the latch during testing.
  • Specify one for all your needs – panic or fire rated doors, high traffic exits, full accessibility areas.

Strength is Not the only Option, Exit Control Can Be Gentle

Without compromising any strength and durability of the Klacci 1000 Series exit device, the accessible Rim Exit Device can be operated with 5 lbs of push force. Not only it meets the requirements of the 2010 ADA Standards and California Building Code 11B, the accessible rim exit devices are most suitable for accessibility demand from hospitals or health care centers.

The Exit Device for Anyone, Any Places

The accessible Rim Exit Device makes sure the exit can be operable with the least amount of force, while keeping the maximum strength. No one should be exempted from evacuation when it happens. Simply the choice of safety and security.

From Keyed Access to Smart Access

Sectional Readers for 1000 Series

Sectional readers make simple on converting your conventional exit doors into smart electrified access controls. Benefits from the expertise of Klacci, you can control your access by choosing various of methods from passcode entry or RFID card, to mobile phone app unlocking or even using facial recognition.

Klacci i Series Reader
i Series Reader

Unlocking method:
RFID card, NFC & BLE thru mobile phone app

Klacci i Series Reader
iF-R Series Reader

Unlocking method:
Passcode + Facial Recognition thru mobile phone app

Klacci i Series Reader
iK Series Reader

Unlocking method:
Passcode with physical keypad

Door Opening with One Pull Motion

600 Series Pull Handle

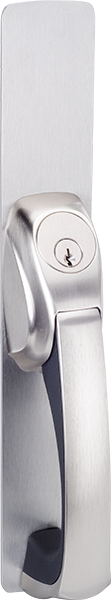

Klacci 1000 Series Exit Devices 600 Series Pull Handle 608R Key Locks or Unlocks Latchbolt
  • Get a more comfortable grip with its curved design and touch.
  • The slanted cylinder design allows face to face sight with the user.
  • An ergonomic grip handle that brings balance between functionality and aesthetics.

Security At-a-glance

Classroom Security Solutions

Indicators provide the most direct visual assistance of the locked/unlocked status of the door during emergency events. The indicator window and message is designed to have status of the lock able to be seen clearly distance away within the inside of the room.

Now the 1000 Series Exit Device comes with the available indicator option on double keyed devices. Verifying the locked/unlocked status of critical main entrances or exits can be peace of mind.

Klacci i Series Reader

When Sequence Orders Matter

We all know one comes before two in numbers, safety comes ahead of convenience. Klacci’s CR Series Bar Coordinators offer a simple yet effective way of regulating double door entries. These products guarantee a correct order of door closing and prevent that any entry that is not properly closed may cause a safety concern in case of emergency.

Electrical Exit Devices

Features

The 1000 Series Exit Devices are fabricated and blended with simplicity, strength, durability, aesthetics and installer-friendly innovations.

  • Devices and trims are designed for new or retrofit installation into other manufacturers’ exit devices and trims.
  • Made to comply with the highest safety and security standards in industry.
  • UL/cUL listed for panic hardware or 3-hour Fire Rated Exit Hardware.
  • Certified to ANSI/UL305 and ANSI/BHMA A156.3-2014 Grade 1.
Klacci 1000 Series Exit Devices Features

Simple cylinder built in add-on kit.

Special plastic inserts and rubber bumpers reduce noise and don’t fail under high or low temperatures. Impervious to petroleum lubricants.

Detachable center case allows switching between mechanical and electrical options which replaces the need of buying two complete sets.

Replaceable cam breaks at a predetermined load to prevent further damage of the trim mechanism. Handing change is simple and easy, just remove screw and cam from mechanism and rotate lever to desired position, then replace cam and fasten the screw.

Stainless steel latch and deadlatching blade add perceived value.

Center case with maximum versatility, Surface and concealed vertical rods can be adjusted inside the center case with an ingenious rod holder design.

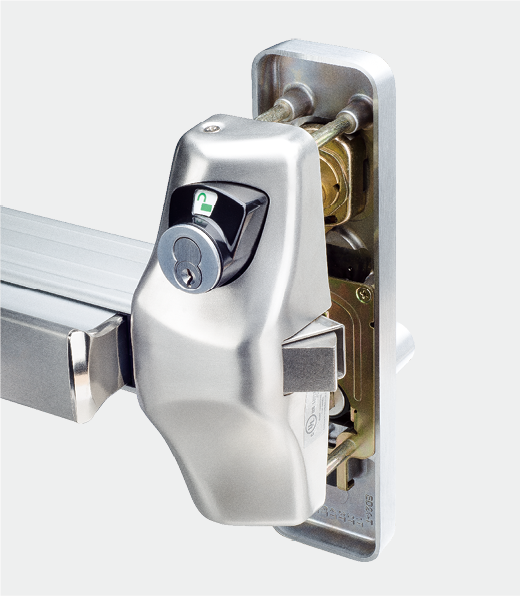

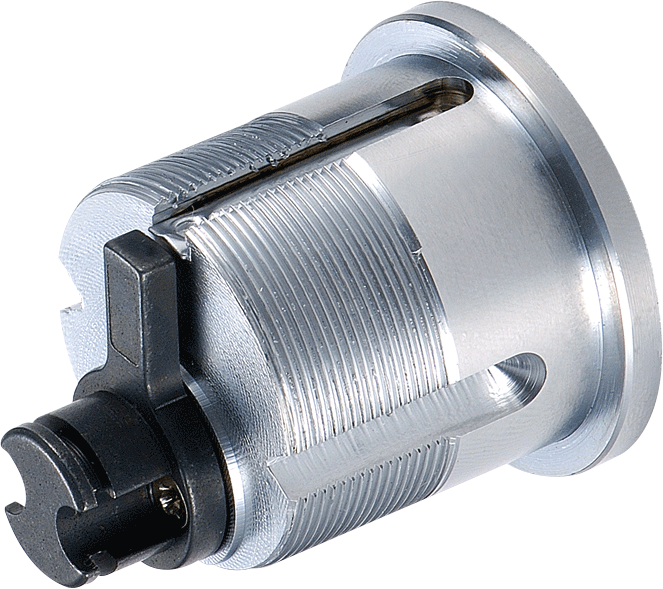

Double cylinder with indicator devices are used as classroom intruder locks, allowing the locking of the outside trim without opening the door.

Integrated end cap reduced projection minimizes catch hazard and add stability to the push bar to move smoothly regardless of where the pressure is applied on push bar.

Push bar is smoothly surfaced. Light force applied to the push bar can release the latch. Accessible version is also available to meet the 2010 ADA Standards and Accessible Design to operate the device with 5 lbs of force.

Dogging can be done with an allen wrench, a small flat key or a flat blade screwdriver.

Flush End Cap design.

Option of 600 Series Pull Handle trim – new experience of door opening with no other products in the market can match.

Details

Device Material

1000 Series is furnished standard with grooved case. Smooth surface style is available. The two styles are mechanically and dimensionally identical and come with a wide selection of finishes.

Finishes

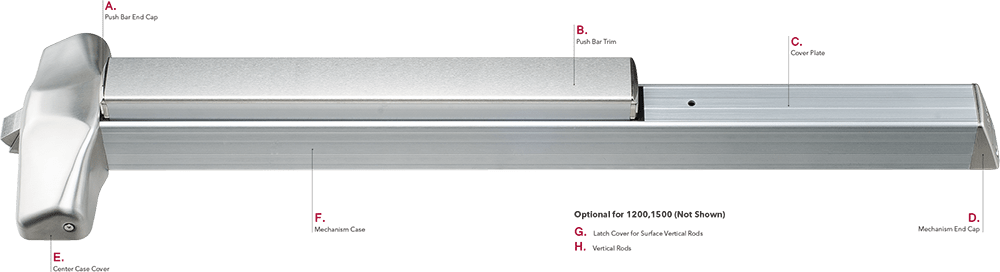

Klacci 1000 Series Exit Devices General Overview A1 type
ColorANSI/BHMAUSB.E.G.A.D.C.F.H.
Klacci finishes 605 Polished BrassPolished Brass6053Brass, PolishedPlatedBuffed Anodized
Klacci finishes 606 Satin BrassSatin Brass6064Brass, SatinPlatedAnodized
Klacci finishes 611 Polished BronzePolished Bronze6119Bronze, PolishedPlatedBuffed Anodized
Klacci finishes 612 Satin BronzeSatin Bronze61210Bronze, SatinPlatedAnodized
Klacci finishes 613 Dark Oxidized Satin BronzeDark Oxidized Satin Bronze61310BBronze, Satin; Dark OxidizedPlatedAnodized
Klacci finishes 625 Polished ChromePolished Chrome62526Brass, Polished & PlatedPlatedBuffed Anodized
Klacci finishes 626 Satin ChromeSatin Chrome62626DBrass, Satin & PlatedPlatedAnodized
Klacci finishes 630 Satin Stainless SteelSatin Stainless Steel63032DSt. Steel, SatinPlatedAnodized
For other finishes please consult factory.
Push Bar Trim Options
  • Embossed “PUSH”
  • Braille, embossed “CAUTION STAIRWELL”
  • Red silk screen lettered “EMERGENCY EXIT ONLY – PUSH TO OPEN & SOUND ALARM”
Mechanism Case Options
Klacci Exit Devices Mechanism Case Smooth Options
Smooth
Klacci Exit Devices Mechanism Case Grooved Options
Grooved
ANSI/
BHMA
OperationTrim Option
200 Series
Thumbpiece
300 Series
Escutcheon
600 Series
Pull Handle
01Exit Only201NN
02Dummy Pull Only202302602
03Night Latch, Key Retracts Latchbolt203R/203MNN
05Key Locks or Unlocks Latchbolt205R/205MNN
07Inside / Outside Key Locks or Unlocks Latchbolt (Double Cylinder)205MNN
08Key Locks or Unlocks LatchboltN308R/308M
C308R/C308M
608R/608M
09Night Latch, Key Retracts LatchboltN309R/309M609R/609M
10Inside / Outside Key Locks or Unlocks Latchbolt (Double Cylinder)N308R/308M
C308R/C308M
N
14Lever / Knob Always Active, No CylinderN314R/314M
HL400
614R/614M
15Thumbpiece Always Active, No Cylinder215R/215MNN

Notes:

  1. Device functions are field selectable with the removal of drive screw in back of center case and determined by the type of trim adaption.
  2. The operation descriptions of the 600 Series trim is reference to the similar ANSI/BHMA function numbers.
Klacci 1000 Series Exit Devices 200 Series Thumbpiece With CylinderKlacci 1000 Series Exit Devices 300 Series Escutcheon Night LatchKlacci 1000 Series Exit Devices 600 Series Pull Handle With Cylinder
200 Series Thumbpiece300 Series Escutcheon600 Series Pull Handle
Klacci 1000 Series Exit Devices 200 Series Thumbpiece 201 Exit OnlyKlacci 1000 Series Exit Devices 200 Series Thumbpiece 202 Dummy Pull OnlyKlacci 1000 Series Exit Devices 200 Series Thumbpiece 205R Key Locks or Unlocks Latchbolt
PlatePlateWith Cylinder
Features
  • Trims are furnished with wrought plate and cast solid or forged grips.
  • Trims are designed to retrofit into other manufacturers’ devices.
  • Trims are UL/cUL certified for ANSI/BHMA A156.3-2014 Grade 1 and 3-Hour Fire Rated.
  • Trims are through bolted and covering 161 and 86 cutouts.(“GD” Grip furnished standard, unless specified).
ANSI/BHMA0102030505/07*15
Klacci 1000 Series Exit Devices 200 Series Thumbpiece 201 Exit OnlyKlacci 1000 Series Exit Devices 200 Series Thumbpiece 202 Dummy Pull OnlyKlacci 1000 Series Exit Devices 200 Series Thumbpiece 203R Night Latch, Key Retracts LatchboltKlacci 1000 Series Exit Devices 200 Series Thumbpiece 203M Night Latch, Key Retracts LatchboltKlacci 1000 Series Exit Devices 200 Series Thumbpiece RIM/Mortise CylinderKlacci 1000 Series Exit Devices 200 Series Thumbpiece 205R Key Locks or Unlocks LatchboltKlacci 1000 Series Exit Devices 200 Series Thumbpiece 205M Key Locks or Unlocks LatchboltKlacci 1000 Series Exit Devices 200 Series Thumbpiece 215R Thumbpiece Always Active, No CylinderKlacci 1000 Series Exit Devices 200 Series Thumbpiece 215R Thumbpiece Always Active, No Cylinder
OperationExit OnlyDummy Pull OnlyNight Latch, Key Retracts LatchboltKey Locks or Unlocks LatchboltThumbpiece Always Active, No Cylinder
Trim No.201202203R203M205R205M215R 215M
Device No.110011001100110011001100
110511051105110511051105
120012001200120012001200
130013001300130013001300
140014001400140014001400
150015001500150015001500
Cylinder TypeRIMMortiseRIM/MortiseRIMMortise
* Double Cylinder
Lever / Grip Options
Grip Options
Klacci Exit Devices Trim Grip Options GD typeKlacci Exit Devices Trim Grip Options GK type
GD type
(Standard)
GK type

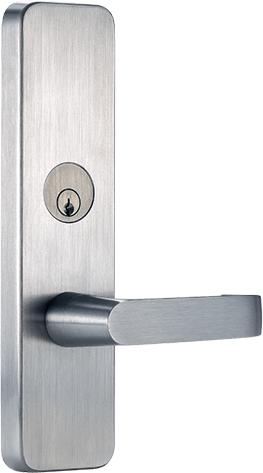

Klacci 1000 Series Exit Devices 300 Series Escutcheon Dummy TrimKlacci 1000 Series Exit Devices 300 Series Escutcheon Blank EscutcheonKlacci 1000 Series Exit Devices 300 Series Escutcheon 308R Night Latch
Dummy TrimBlank EscutcheonNight Latch
Lever or knob rigid
for pull operation
(For 02 function)
Lever or knob
always active
(For 14 function)
Key retracts latchbolt.
Lever or knob is rigid
(For 09 function)
Features
  • Escutcheon and lever with sleek and seamless design produced by casting or forging.
  • Trims are designed to retrofit into other manufacturers’ devices.
  • Trims are through bolted and covering 161 and 86 cutouts.
  • Handing field reversible.
  • Trims are UL/cUL certified for ANSI/BHMA A156.3-2014 Grade 1 and 3-Hour Fire Rated.
  • Specify lever or knob design. (“D” Lever furnished standard, unless specified).
ANSI/BHMA0208/10*0914
Klacci 1000 Series Exit Devices 300 Series Escutcheon Dummy TrimKlacci 1000 Series Exit Devices 300 Series Escutcheon 308R Night LatchKlacci 1000 Series Exit Devices 300 Series Escutcheon 308R Night LatchKlacci 1000 Series Exit Devices 300 Series Escutcheon Night Latch, Key Retracts LatchboltKlacci 1000 Series Exit Devices 300 Series Escutcheon 308R Night LatchKlacci 1000 Series Exit Devices 300 Series Escutcheon Dummy TrimKlacci 1000 Series Exit Devices 300 Series Escutcheon Dummy TrimKlacci 1000 Series Exit Devices 300 Series Escutcheon Pull latch
OperationDummy Pull OnlyKey Locks or Unlocks LatchboltNight Latch, Key Retracts LatchboltLever / Knob Always Active, No CylinderPull latch
Trim No.302308R/C308R308M/C308M309R30914314MType “HL 400”
Device No.1100110011001100
1105110511051105
1200120012001200
1300130013001300
14001400140014001400
1500150015001500
Cylinder TypeMortiseMortiseRIMMortiseMortise
* Double Cylinder
Lever / Grip Options
Lever Options
Klacci Exit Devices Trim Lever Options D typeKlacci Exit Devices Trim Lever Options Q typeKlacci Exit Devices Trim Lever Options A typeKlacci Exit Devices Trim Lever Options K type
D type
(Standard)
Q typeA typeK type
Knob Options
Klacci Exit Devices Trim Knob Options B typeKlacci Exit Devices Trim Knob Options P typeKlacci Exit Devices Trim Knob Options T type
B type
(Standard)
P typeT type
Standard Operation
Klacci 1000 Series Exit Devices 300 Series Escutcheon Standard Operation Model 308
Model 308
Key Locks or Unlocks Lever or Knob
(For 08/10 functions)

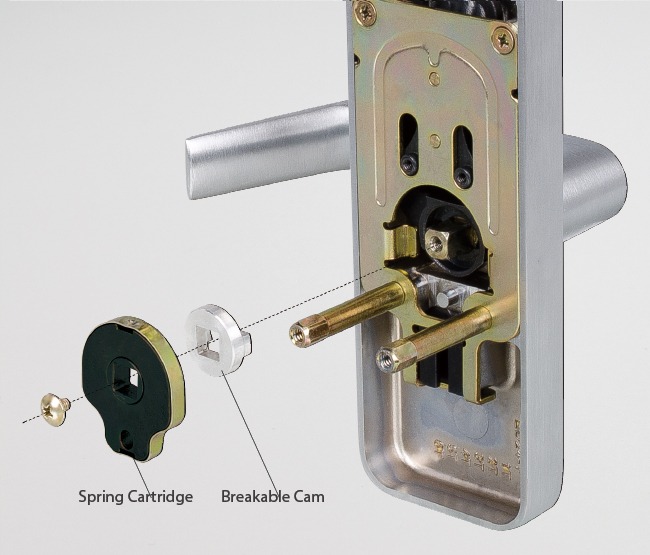

Klacci 1000 Series Exit Devices 300 Series Escutcheon Standard Operation Model 308 exploded view
Model 308 Trim is composed of heavy duty investment cast steel. An internal breakable cam breaks away when a predetermined load is applied to the outside lever handle in locked mode without damaging the trim or compromising security. The cam is easily replaceable with minimum efforts.

The spring cassette and the breakable cam are replaceable parts.
Clutch Operation
Klacci 1000 Series Exit Devices 300 Series Escutcheon Clutch Operation Model 308
Model 308
Key Locks or Unlocks Lever or Knob
(For 08/10 functions)

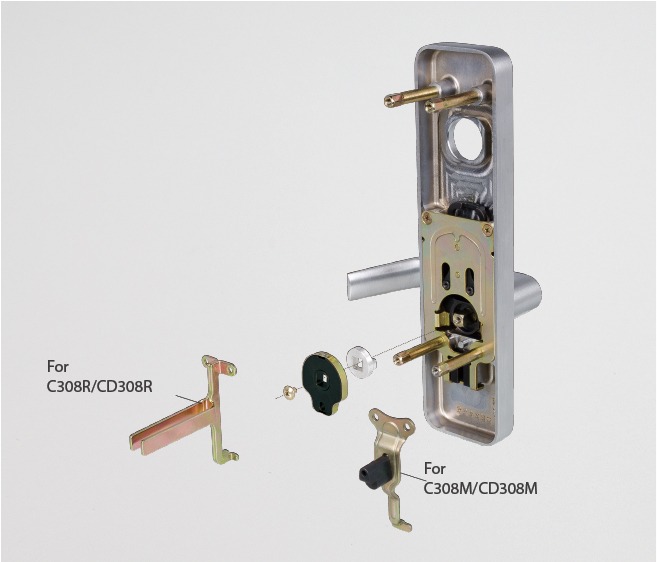

Klacci 1000 Series Exit Devices 300 Series Escutcheon Clutch Operation Model 308 exploded view
Model C308 Trim is designed to withstand abusive conditions. Working parts are made of heavy duty investment steel.

When locked, the lever handle will turn freely and disengage from the center case of exit device. When an excessive force is applied on the lever handle, it will cause the breakable cam inside the trim to break at a predetermined load, protecting the trim from further damage.

The spring cassette and the breakable cam are replaceable parts.

Handing
Adjust direction of spring cassette and lever handle to switch handing.Trim: can switch between Rim (CD308R) and Mortise (CD308M) functions by changing the lift arm.

The lift arm
CD308M allows a small range of adjustment, making it easier for installation especially when it comes to dimension differences in door preparation.
Klacci 1000 Series Exit Devices 300 Series Escutcheon Clutch Operation Model 308 CD308M The lift arm

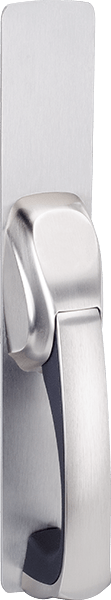

Klacci 1000 Series Exit Devices 600 Series Pull Handle 602 Dummy Pull OnlyKlacci 1000 Series Exit Devices 600 Series Pull Handle 608R Key Locks or Unlocks Latchbolt
Pull OnlyWith Cylinder
Features
  • For application with existing Klacci 1000 Series Exit Devices.
  • Ease of installation. Same mounting screw hole positions designed to fit Klacci 1000 Series Exit Devices.
  • Non-handed.
ANSI/BHMA02080914
Klacci 1000 Series Exit Devices 600 Series Pull Handle 602 Dummy Pull OnlyKlacci 1000 Series Exit Devices 600 Series Pull Handle 608R Key Locks or Unlocks LatchboltKlacci 1000 Series Exit Devices 600 Series Pull Handle 608R Key Locks or Unlocks LatchboltKlacci 1000 Series Exit Devices 600 Series Pull Handle 602 Dummy Pull Only
OperationDummy Pull OnlyKey Locks or Unlocks LatchboltNight Latch, Key Retracts LatchboltPull Handle Always Active, No Cylinder
Trim No.602608R608M609R609M614R614M
Device No.1100110011001100
1105110511051105
1200120012001200
1300130013001300
14001400140014001400
1500150015001500
Cylinder TypeMortiseMortiseMortise
110511001400120013001500
ApplicationsOffices, schools, banks, assisted living facilities and other institutions or commercial buildings.
Certification / CompliancePanic devices UL/cUL listed for UL305 and ANSI/BHMA A156.3-2014 Grade 1 Panic Hardware.
UL/cUL Fire rated for 3-hour Fire Exit Hardware, conforms to UL10C and UBC7-2. Also complies with NFPA 80 Fire doors and windows.
Exit devices, levers, trims and pulls comply with American Disability Act (ADA) and NFPA 101 life safety code.
Doors & PreparationsFor new or retrofit installation into other manufacturers’ devices.
For maximum door opening applications and listings for fire exit devices.
– Mullionwith/withoutwith/without
– Door Thickness1-3/4″ (45mm) ~ 2-1/4″ (57mm). Consult factory for other door thickness.
– Door Wide3′ (914mm)(standard) ~ 4′ (1219mm).
– Door High(Panic)7′ (2134mm)(standard) ~ 10′ (3048mm).
(Fire)7′ (2134mm)
(standard) ~
8′ (2438mm).
7′ (2134mm)
(standard) ~
10′ (3048mm).
7′ (2134mm)
(standard) ~
8′ (2438mm).
– Device Centerline from Finished Floor39-5/8″ (1006mm).
– Door Undercut1/4″ (6mm).
Center CaseUniversal center case, heavy wrought steel and sintered metal parts.
Device functions are determined by adaptation with type of trim.
Latch bolt of mortise case can be adjusted for full retraction by Adjustment Finger with fine tuning of adjustment screw in center case.Heavy wrought steel assembly with top and bottom rod adjustors.
Adjustment accessible through center case after installation.
Top & Bottom Latch Case4-1/2″ × 2-1/8″ × 1-1/2″ (114mm × 54mm × 38mm).
Center Case LatchboltStainless Steel, deadlocking, 3/4″ (19mm) throw.
Top LatchboltStainless steel, Pullman type deadlocking, 5/8″ (16mm) throw.
Bottom LatchboltStainless steel, Pullman type deadlocking, independent action 5/8″ (16mm) throw.
Round slide bolt optional.
Fire BoltAvailable for door openings up to 8′ (2438mm) wide × 10′ (3048mm) high. Specify suffix “LBR”.
Electrical FunctionsCan be interfaced with building security systems:
– AL Alarm Exit
– DE Delayed Egress Device
– ELR Electric Latch Retraction
– LM Latchbolt Monitoring
– RX Request to Exit
– SS Signal Switch
– E Electric Mortise Lock
DoggingNOT available on fire exit hardware.
Flat/hex key dogging standard.
Dogging options available for LD, CD, ED (ELR).
Strikes
– Panic
— Top106Z (roller type)106 (roller type)306106 (roller type)216106 (roller type)
— Middle106 (roller type)
— Bottom227227227
– Fire
— Top108 (roller type)108 (roller type)306108 (roller type)216108 (roller type)
— Middle108 (roller type)
— Bottom227F227F227F
CylindersNOT furnished standard, specify when required.
TrimThe device and trim are sold separately, easy to mix and match.
HandingTrim field reversible.
Device non-handed.
Except for double cylinder option. For double cylinder, specify handing when required.
FastenersMachine screws and wood screws are furnished standard.
Sex Bolts (SNB)Required when used with wood, composite or non-reinforced hollow metal doors.
Klacci ANSI Gread 1ANSI Gread 1Klacci Panic ApplicationPanic Application
Klacci ANSI Gread 2ANSI Gread 2Klacci Fire ApplicationFire Application
Klacci Exit Devices Rim Device 106 Rim StrikeKlacci Exit Devices Rim Device 106Z Rim StrikeKlacci Exit Devices Rim Device 108 Rim StrikeKlacci Exit Devices Rim Device 136 Rim Strike
P/N. 106
Rim Strike
P/N. 106Z
Rim Strike
P/N. 108
Rim Strike
P/N. 136
Rim Strike
For RIM / SVR / 3PT top strikeFor RIM / SVR / 3PT top strikeFor RIM / SVR / 3PT top strike
For double door RIM / 3PT use
with F170/F270 mullion
For double door RIM / SVR / CVR
combination with coordinator
Klacci ANSI Gread 1Klacci Panic ApplicationKlacci ANSI Gread 1Klacci Panic ApplicationKlacci ANSI Gread 1Klacci Panic ApplicationKlacci Fire Application
Top Strike
Klacci Exit Devices Vertical Rod (VR) Device 215 Top StrikeKlacci Exit Devices Vertical Rod (VR) Device 216 Top Strike
P/N. 215
Top Strike
P/N. 216
Top Strike
For flush transom SVR / 3PTFor CVR
Klacci ANSI Gread 1Klacci Panic ApplicationKlacci Fire Application

Flat Bottom Strike
Klacci Exit Devices Vertical Rod (VR) Device 225 Flat Bottom StrikeKlacci Exit Devices Vertical Rod (VR) Device 226 Flat Bottom Strike
P/N. 225
Flat Bottom Strike
P/N. 226
Flat Bottom Strike
Optional for SVR / CVR / 3PT
round slide bolt
Optional for SVR / CVR / 3PT
round slide bolt
Klacci ANSI Gread 2Klacci Panic ApplicationKlacci Fire ApplicationKlacci ANSI Gread 2Klacci Panic ApplicationKlacci Fire Application

Bottom Strike
Klacci Exit Devices Vertical Rod (VR) Device 227F Bottom StrikeKlacci Exit Devices Vertical Rod (VR) Device 224 Bottom Strike
P/N. 227F
Flat Bottom Strike
P/N. 224
Bottom Strike
Furnished standard for SVR / CVR / 3PTOptional for SVR / 3PT
Klacci ANSI Gread 1Klacci Panic ApplicationKlacci Fire ApplicationKlacci ANSI Gread 2Klacci Panic ApplicationKlacci Fire Application
Klacci Exit Devices Mortise Device 336 Mortise StrikeKlacci Exit Devices Mortise Device 306 Mortise StrikeKlacci Exit Devices Mortise Device 337 Open Back StrikeKlacci Exit Devices Mortise Device 338 Open Back Strike
P/N. 336
Strike
P/N. 306
Strike
P/N. 337
Open Back Strike
P/N. 338
Open Back Strike
For use on 1-3/4″ (45mm) thick double door with coordinator and astragal.Furnished standard for use on 1-3/4″ (45mm) or 2-1/4″ (57mm) single door and 2-1/4″ (57mm) double door with coordinator.For 2-1/4″ (57mm) thick double doors without coordinator.Furnished standard for 1-3/4″ (45mm) thick double doors without coordinator.
Klacci ANSI Gread 1Klacci Panic ApplicationKlacci Fire ApplicationKlacci ANSI Gread 1Klacci Panic ApplicationKlacci Fire ApplicationKlacci ANSI Gread 1Klacci Panic ApplicationKlacci ANSI Gread 1Klacci Panic Application
Klacci Exit Devices Shim 616819-010 For 106 Rim StrikeKlacci Exit Devices Shim 616819-030 For 108 Rim StrikeKlacci Exit Devices Shim 616819-050 For CVR top & bottom latches Strike
P/N. 616819-010P/N. 616819-030P/N. 616819-050
For 106 Rim Strike
Two (2) pieces furnished standard
For 108 Rim Strike
Two (2) pieces furnished standard
For CVR top & bottom latches Strike
Sixteen (16) pieces furnished standard for Top and Bottom latches. Eight (8) pieces furnished standard for LBR
1100 Rim Device – Handed1400 Mortise Device – Handed
Klacci 1000 Series Exit Devices Double Cylinder with indicator 1100/1105 Rim Device HandedKlacci 1000 Series Exit Devices Double Cylinder with indicator 1400 Mortise Device Handed

The Double Cylinder option is available on the Rim and Mortise Exit Devices. An indicator device installed on the inner side of door informs whether the outside trim is in a locked or unlocked state.

The outside key cylinder locks or unlocks the outside Trim. Specify Outside Trim with “07” or “10” function depending on trim options. When only the inside key cylinder is required to lock or unlock the outside trim and no outside cylinder operation is necessary for Rim Exit Device specify “08” (outside trim will be with blank mortise cylinder). For Mortise Exit Device specify “14” or “15” function depending on trim options.

Klacci 1000 Series Exit Devices Double Cylinder with indicator Handed
DeviceCylinderTrim
Outside CylinderInside CylinderEscutcheonThumbpiece
CylinderCyl. Length (Part/No.)Door ThicknessCylinder CamCylinderThumbturn
RIM
1100/1105
Standard1-1/4″ (441-103)
& 4240-0202
1-3/4″~2″
(45~50mm)
440-0710Rim Cylinder
(I/C / STD)
Tailpiece Length
3-1/8″ (79.6mm)
OK308R / C308N/A
I/C1-3/8″ (442-701)
& 4240-0202
1-3/4″~2″
(45~50mm)
440-0711
Mortise
1400
Standard1-1/2″ (441-105)1-3/4″~2″
(45~50mm)
440-0702308M205M / 215M
1-5/8″ (441-106)2″~2-1/4″
(50~57mm)
I/C1-1/2″ (442-702)1-3/4″~1-7/8″
(45~48mm)
440-0718
1-5/8″ (442-703)1-7/8″~2-1/8″
(48~54mm)
1-3/4″ (442-704)2-1/8″~2-1/4″
(54~57mm)
Note: Cylinder and thumbturn are not furnished standard. Specify when required.
Klacci 1000 Series Exit Devices Double Cylinder with indicator Handed Cylinder CamExtension Cam for RIM Device Double Cylinder (10 function).
IllustrationKlacci ANSI Grade 1 Exit Devices Cylinder Cam 440-0710Klacci ANSI Grade 1 Exit Devices Cylinder Cam 440-0711
DimensionX=3/16″ (5mm)
Y=3/4″ (19mm)
X=3/16″ (5mm)
Y=3/4″ (19mm)
Cam No.440-0710440-0711

Options of keyed cylinder or thumbturn indicator unit

Klacci 1000 Series Exit Devices Double Cylinder with Cylinder indicator HandedKlacci 1000 Series Exit Devices Double Cylinder with Cylinder indicator Handed
CylinderThumbturn
Klacci Exit Devices Handing of doors

The classroom security indicator devices are handed. Please specify LHR or RHR when ordering.

Cylinders are not furnished standard with the device or trim, specify when required. Schlage C keyway, 6-pin standard, available in 630 or 626 finish. Small Format Interchangeable Core combinated/uncombinated also available. Specify type and finish when ordering.

Cylinder TypeApplicationsTrimCylinderCyl. Length (Part/No.)Cylinder Cam
Mortise Cylinder
Klacci Exit Devices Mortise I/C Cylinder
I/C

Klacci Exit Devices Mortise Standard Cylinder
Standard
03* / 05* / 07* for
Mortise Device
200Standard1-3/8″ (441-104)440-0702
08 for
RIM/SVR/CVR*/3PT
I/C1-3/8″ (442-701)440-0718
08 / 09 for
Mortise Device
300Standard1-1/8″ (441-102)440-0704
I/C1-3/8″ (442-701)440-0708
08 / 09 for
Mortise Device
Standard1-5/8″ (441-106)440-0702
I/CSee note 1440-0718
08 for
All Devices
600**Standard1-1/8″ (441-102)440-0714
I/C1-3/8″ (442-701)440-0715
09 for
All Devices
Standard1-1/8″ (441-102)440-0712
I/C1-3/8″ (442-701)440-0713
Cylinder DoggingAll DevicStandard1-1/4″ (441-103)440-0702
I/C1-3/8″ (442-701)440-0718
Rim Cylinder
Klacci Exit Devices Rim I/C Cylinder
I/C

Klacci Exit Devices Rim Standard Cylinder
Standard
03* / 05* for
RIM/SVR/CVR/3PT
200Standard
I/C
Tailpiece Length 3-1/8″ (79.6mm)
09 for
RIM/SVR/CVR/3PT
300
IllustrationKlacci ANSI Grade 1 Exit Devices Cylinder Cam 440-0702Klacci ANSI Grade 1 Exit Devices Cylinder Cam 440-0704Klacci ANSI Grade 1 Exit Devices Cylinder Cam 440-0712Klacci ANSI Grade 1 Exit Devices Cylinder Cam 440-0714Klacci ANSI Grade 1 Exit Devices Cylinder Cam 440-0718Klacci ANSI Grade 1 Exit Devices Cylinder Cam 440-0708Klacci ANSI Grade 1 Exit Devices Cylinder Cam 440-0713Klacci ANSI Grade 1 Exit Devices Cylinder Cam 440-0715
DimensionX=1/4″ (6mm)
Y=5/8″ (15mm)
X=3/8″ (9.5mm)
Y=3/4″ (19mm)
X=5/8″ (16.4mm)
Y=9/16″ (13.6mm)
X=3/16″ (4.4mm)
Y=7/16″ (11.9mm)
X=1/4″ (6mm)
Y=5/8″ (15mm)
X=3/8″ (9.5mm)
Y=3/4″ (19mm)
X=5/8″ (16.4mm)
Y=9/16″ (13.6mm)
X=3/16″ (4.4mm)
Y=7/16″ (11.9mm)
Cam No.440-0702440-0704440-0712440-0714440-0718440-0708440-0713440-0715
Klacci 1000 Series Exit Devices 4240-0202 Cylinder Guard4240-0202 / 4240-0203
For use on 203 / 205 / 207 Thumbpiece Trim.
CVR with 308R Escutcheon Trim and Mortise with C308R Escutcheon Trim require specialized cylinder guards.

4240-0203 is used for special door thickness applications. For specification details, please contact our sales representative.
Klacci I/C Core“A” keyway standard supplied. Specify 6 or 7 pin, combinated or uncombinated and finish 606 or 626 when ordering. Consult factory for other keyways.
Klacci Exit Devices Dogging
Klacci Exit Devices Dogging LD Less doggingKlacci Exit Devices Dogging CD Cylinder DoggingKlacci Exit Devices Dogging HKD Flat/Hex Key DoggingKlacci Exit Devices Dogging ED(ELR) Electrical Dogging
LDCDHKDED(ELR)
Less doggingCylinder DoggingFlat/Hex Key DoggingElectrical Dogging
Less Dogging is available in all 1000 Series panic exit devices.Available for all models except for fire exit hardware. Cylinder dogging provides the ability to lock down the push bar with a key cylinder, allowing the door to be used in both push/pull mode. To order, specify “CD”. Requires the use of a 1-1/4″ (31.75mm) mortise cylinder (not furnished standard).
ABKlacci Exit Devices Typical Installation Two Rim Exit Devices with Removable Mullion, Same Direction
Removable mullions are used with paired doors where a full width opening is only occasionally required. Doors are fitted with Rim Exit Devices and normally function as single doors. Available in 7′, 8′ or 10′ (2134mm, 2438mm or 3048mm) lengths.
Klacci Exit Devices 170 Keyed Removable MullionKlacci Exit Devices 270 Non-Keyed Removable Mullion
AB
Model 170 / F170
Keyed Removable Mullion
Model 270 / F270
Non-Keyed Removable Mullion
Top and Bottom FittingsInvestment cast steel, furnished with steel anchors for floors.
Mullion2″ x 3″ (609mm x 915mm) steel.
Stock size8′ (2438mm) length standard, can be cut for opening less than 8′ (2438mm).
10′ (3048mm) length available upon request.
Finishes600, 689, 695.
UL ListedListed for 3-Hour Fire Rated Exit Hardware.
CylinderNot furnished standard, keying is standard 1-1/8″ (28.5mm) Mortise Cylinder with cam.
Specify with or without strikes when ordering.
The head design of 170/F170
Klacci Exit Devices The head design of 170/F170 Mullions

Provides a secure, quick and easy means of removal. The Mullion can be installed and locked without using key.

Top Rod
IllustrationDevice No.Part No.Rod LengthFor Door Height
Klacci Exit Devices SVR/3PT Rod1200
1500
(SVR/3PT)
616823-02036-1/8″ (916mm)7′
616823-03048-1/8″ (1221mm)8′
616823-030
Add
616823-040*
48-1/8″ (1221mm)
Add
24″ (609mm)
10′
Klacci Exit Devices CVR Top Rod1300
(CVR)
616823-07037″ (940mm)7′
616823-08049″ (1245mm)8′
616823-080
Add
616823-050*
49″ (1245mm)
Add
23-7/8″ (605mm)
10′
* Extension Rod
Bottom Rod

For Push Bar location at 39-5/8″(1006 mm) from finished floor.

IllustrationDevice No.Part No.Rod Length
Klacci Exit Devices SVR/3PT Rod1200
1500
(SVR/3PT)
616823-01031-7/8″ (807mm)
Klacci 1000 Series Exit Devices CVR Bottom Rod1300
(CVR)
2468230091034-9/32″ (870mm)
Klacci 1000 Series Exit Devices Dummy Push Bar A1 type
DP3 Active / DP4 Inactive
  • A push/pull operation can be accomplished by using an outside dummy trim.
  • Size: 3′ or 4′ (914 mm or 1219 mm).
  • Finishes: 605, 606, 611,612, 613, 625, 626, 630.
Klacci 1000 Series Exit Devices Dummy Push Bar A1 type
Light Duty Option
PD 420/PD 430
  • Size: 24″ × 7-3/8″ × 8″ (600 mm × 190 mm × 205 mm).
  • Weight: 1.7 lb (0.8 kg).
Klacci 1000 Series Exit Devices Dummy Push Bar A1 type
Heavy Duty Option
PD 620/640
  • PD 620 for 1100/1105 Rim exit device.
  • • PD 640 for 1400 Mortise Lock Exit Devices.
  • • Size: 35-1/2″ × 14″ × 24-1/2″ (900mm
  • × 350mm × 620mm).
  • • Weight: 11 lb (5kg).
PD 730/750
  • PD 730 for 1200/1500 Surface Vertical Rods.
  • • PD 750 for 1300 Concealed Vertical Rods.
  • • Size: 35-1/2″ × 14″ × 28-3/4″ (900mm
  • × 350mm × 730mm).
  • • Weight: 13 lb (6kg).

Note: Size and weight exclude device.

F1000 Series Fire Exit Devices Maximum Door Opening Applications and Listings

Exit DeviceDoor MaterialSingle DoorDouble Door
With 170
mullion
With 270
mullion
VR/VR
Same Direction
VR/Mortise
Same Direction
VR/VR
Double Egress
F1100
F1105
RIM
Metal3 Hours
4′ × 8′
3 Hours
8′ × 8′
3 Hours
8′ × 8′
F1200
SVR
Metal3 Hours
4′ x 10′
3 Hours
8′ × 10′
3 Hours
8′ × 10′
3 Hours
8′ × 10′
F1200
LBR
Metal3 Hours
4′ x 10′
3 Hours
8′ × 10′
3 Hours
8′ × 10′
F1300
CVR
Metal3 Hours
4′ x 10′
3 Hours
8′ × 10′
3 Hours
8′ × 10′
3 Hours
8′ × 10′
F1300
LBR
Metal3 Hours
4′ x 10′
3 Hours
8′ × 10′
3 Hours
8′ × 10′
F1400
Mortise
Metal3 Hours
4′ x 10′
3 Hours
8′ × 10′
F1500
3PT
Metal3 Hours
4′ × 8′
3 Hours
8′ × 8′
3 Hours
8′ × 8′
Metric conversion: 4′ (1219mm), 8′ (2438mm), 10′ (3048mm).

Notes:

  1. Fire Exit Device conforms to UL10C and UBC7-2.
  2. Fire Exit Device is applicable for wood door with 1-1/2 Hour or 1/3 Hour rating.
  3. Consult with door manufacturer for specific limitations on Fire Door Assemblies.
Single Door
Klacci Exit Devices Typical Installation Single Door
Rim Exit Device / Vertical Rod Exit Devices
PanicRIM1100Up to 4′ × 10′
Door Size
1105
SVR1200
CVR1300
3PT1500
Fire (3 Hours)RIMF1100Up to 4′ × 8′
Door Size
F1105
SVRF1200Up to 4′ × 10′
Door Size
CVRF1300
3PTF1500Up to 4′ × 8′
Door Size
Mortise Lock Exit Devices
PanicMortise1400Up to 4′ × 10′
Door Size
Fire (3 Hours)MortiseF1400
Double Egress Opening
Klacci Exit Devices Typical Installation Single Door
Two Surface Vertical Rod Devices
PanicSVR × SVR1200 × 1200Up to 8′ × 10
Door Size
Fire (3 Hours)SVR × SVRF1200 × F1200
Two Concealed Vertical Rod Devices
PanicCVR × CVR1300 × 1300Up to 8′ × 10
Door Size
Fire (3 Hours)CVR × CVRF1300 × F1300
Double Egress Opening Less Bottom Rod
Klacci Exit Devices Typical Installation Single Door
Two Surface Vertical Rod Devices Less Bottom Rod
PanicSVR × SVR1200LBR × 1200LBRUp to 8′ × 10
Door Size
Fire (3 Hours)SVR × SVRF1200LBR × F1200LBR
Note: Fire Rated Door with Auxiliary Fire Bolt.
Two Concealed Vertical Rod Devices Less Bottom Rod
PanicCVR × CVR1300LBR × 1300LBRUp to 8′ × 10
Door Size
Fire (3 Hours)CVR × CVRF1300LBR × F1300LBR
Note: Fire Rated Door with Auxiliary Fire Bolt.
Two Rim Exit Devices with Removable Mullion, Same Direction
Klacci Exit Devices Typical Installation Single Door
Two Rim Exit Devices with Removable Mullion
PanicRIM × RIM1100 × 1100Up to 8′ × 10′
Door Size
1105 × 1105
Fire (3 Hours)RIM × RIMF1100 × F1100Up to 8′ × 8′
Door Size
F1105 × F1105
Note: With 170 Keyed / 270 Non-Keyed Removable Mullion.
Two Three-Point Latching Devices with Removable Mullion
Panic3PT × 3PT1500 × 1500Up to 8′ × 10′
Door Size
Fire (3 Hours)3PT × 3PTF1500 × F1500Up to 8′ × 8′
Door Size
Note: With 170 Keyed / 270 Non-Keyed Removable Mullion.
Two Vertical Rod Devices, Same Direction Less Bottom Rod
(Do not use overlapping astragal)
Klacci Exit Devices Typical Installation Single Door
Surface Vertical Rod Devices Less Bottom Rod
PanicSVR × SVR1200LBR × 1200LBRUp to 8′ × 10
Door Size
Fire (3 Hours)SVR × SVRF1200LBR × F1200LBR
Note: Fire Rated Door with Auxiliary Fire Bolt.
Concealed Vertical Rod Devices Less Bottom Rod
PanicCVR × CVR1300LBR × 1300LBRUp to 8′ × 10
Door Size
Fire (3 Hours)CVR × CVRF1300LBR × F1300LBR
Note: Fire Rated Door with Auxiliary Fire Bolt.
Two Vertical Rod Devices, Same Direction
(Do not use overlapping astragal)
Klacci Exit Devices Typical Installation Single Door
Two Surface Vertical Rod Devices
PanicSVR × SVR1200 × 1200Up to 8′ × 10
Door Size
Fire (3 Hours)SVR × SVRF1200 × F1200
Two Concealed Vertical Rod Devices
PanicCVR × CVR1300 × 1300Up to 8′ × 10
Door Size
Fire (3 Hours)CVR × CVRF1300 × F1300
Vertical Rod Devices / RIM Exit Devices, Same Direction
Klacci Exit Devices Typical Installation Single Door
One Rim Exit Device × One Vertical Rod Device
PanicRIM × SVR1100 × 1200Up to 8′ × 10′
Door Size
1105 × 1200
RIM × CVR1100 × 1300
1105 × 1300
Fire (3 Hours)RIM × SVRF1100 × F1200
F1105 × F1200
RIM × CVRF1100 × F1300
F1105 × F1300
One Mortise Lock Exit Device × One Vertical Rod Device
PanicMortise × SVR1400 × 1200Up to 8′ × 10′
Door Size
Mortise × CVR1400 × 1300
Fire (3 Hours)Mortise × SVRF1400 × F1200
Mortise × CVRF1400 × F1300

Download

Contact us
