Automatic Flush Bolts

• The override spring prevents damage to the doors or bolts should the bolt head fail to align with top and bottom strike.
• The Auxiliary Fire Fuse assembly keeps the door aligned during a fire. In case of fire, the bolt extends from the fire fuse to keep the inactive door in the locked position.
• Patented floating cams for less than 5 lbs. of closing force required from the active door to extend both top and bottom bolts.
• 無方向性。

Metal Door

FB9510P

Top and Bottom Bolts (Pair)

• Up to 8′ x 10′ Metal Door Pairs.
• UL Listed 3 Hour Fire Rating.

FB9510F

Top Bolt with Auxiliary Fire Bolt

• Up to 8′ x 10′ Metal Door Pairs.
• UL Listed 3 Hour Fire Rating.

Specifications

認定/コンプライアンス	ANSI/BHMA A156.3 Grade 1。 ANSI / BHMA A156.3タイプ25に準拠しています。
ドア & 準備	Fits standard ANSI/BHMA A156.115 (A115.4).
Top and Bottom Bolts	Bolts can be vertically adjusted up to 1″ for floor variance or frame conditions. 3/4″ bolt throw and 3/4″ backset.
Strike	95-2701 strike standard. 95-2705 or 95-2706 dust proof strike available.
Standard Rod Length	12″ standard rod length measured from the center of the flush bolt body to the bolt tip. Optional 18″,24″,36″ and 48″ rod lengths available for top bolt only on non-fire rated openings.
Ordering information	FB9510R, FB9520R Model (without bottom bolt) with Auxiliary Fire Bolt includes a retrofit plate kit NO.95-2801 to cover existing bottom bolt prep.

Finishes

ドアやその他のハードウェアに合わせて様々な上塗を用意しています。

色		ANSI/BHMA	US
	黄銅(ツヤ)	605	3
	黄銅(砂目)	606	3
	丹銅(ツヤ)	611	9
	丹銅(砂目)	612	10
	黑	613	10B
	クロム(ツヤ)	625	26
	クロム(霧)	626	26D
	ステンレス(砂目)	630	32D

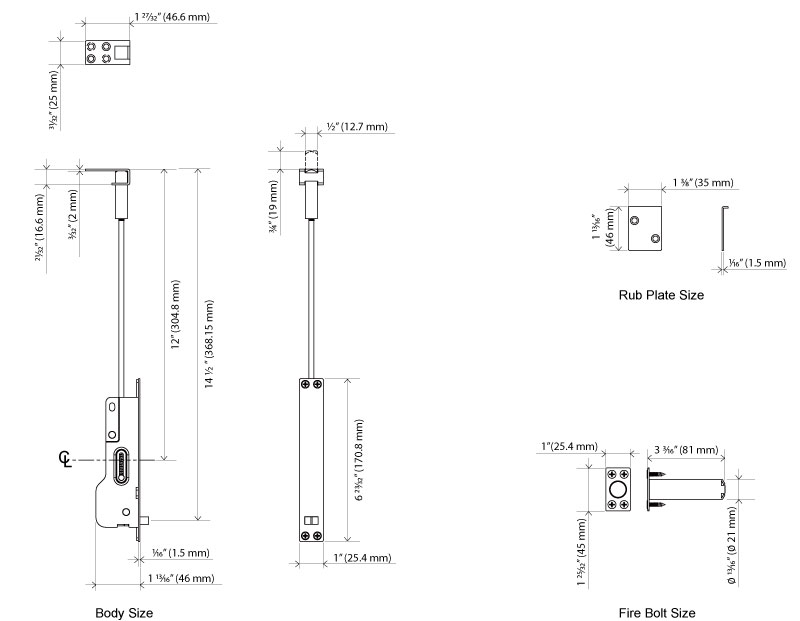

Dimensions

Strikes

認定/コンプライアンス	ANSI / BHMA A156.16，L04011、L04021に準拠しています。
特徴	Spring-loaded plunger returns to floor or threshold level anytime the Flush Bolt is retracted, removing the need of cleaning standard floor strikes.

Standard Strikes

品番 95-2701

• Standard furnished for Automatic Flush Bolt
• 15/16” Wide x 2-1/4” Long x 1/16” Thick

Dust Proof Strikes (Optional)

品番 95-2705

• Body Size: 1-1/8” Diameter x 2-1/8” Deep

品番 95-2706

• Body Size: 1-1/8” Diameter x 2-1/8” Deep
• Face Plate Size: 1-5/8” Wide x 3-1/2” Long x 3/32” Thick

Wood Door

FB9511P

Top and Bottom Bolts (Pair)

• Up to 8′ x 10′ Metal Door Pairs.
• UL Listed 1-1/2 Hour Fire Rating.

FB9511F

Top Bolt with Auxiliary Fire Bolt

• Up to 8′ x 10′ Metal Door Pairs.
• UL Listed 20 Minutes Fire Rating.

Specifications

認定/コンプライアンス	ANSI/BHMA A156.3 Grade 1。 ANSI / BHMA A156.3タイプ25に準拠しています。
Top and Bottom Bolts	Bolts can be vertically adjusted up to 1″ for floor variance or frame conditions. 3/4″ bolt throw and 3/4″ backset.
Strike	95-2701 strike standard. 95-2705 or 95-2706 dust proof strike available.
Standard Rod Length	12″ standard rod length measured from the center of the Flush Bolt body to the bolt tip. Optional 18″, 24″, 36″ and 48″ rod lengths available for top bolt only on non-fire rated openings.

Finishes

ドアやその他のハードウェアに合わせて様々な上塗を用意しています。

色		ANSI/BHMA	US
	黄銅(ツヤ)	605	3
	黄銅(砂目)	606	3
	丹銅(ツヤ)	611	9
	丹銅(砂目)	612	10
	黑	613	10B
	クロム(ツヤ)	625	26
	クロム(霧)	626	26D
	ステンレス(砂目)	630	32D

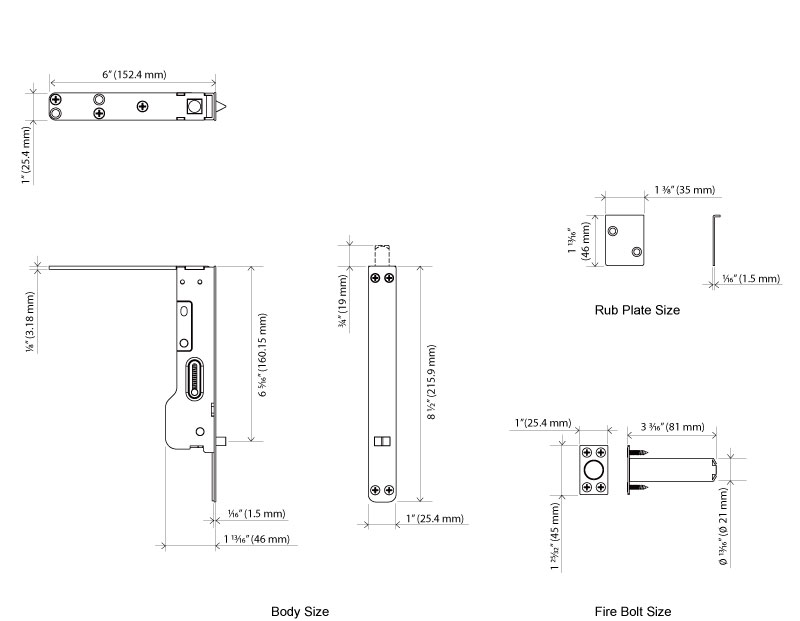

Dimensions

Strikes

認定/コンプライアンス	ANSI / BHMA A156.16，L04011、L04021に準拠しています。
特徴	Spring-loaded plunger returns to floor or threshold level anytime the Flush Bolt is retracted, removing the need of cleaning standard floor strikes.

Standard Strikes

品番 95-2701

• Standard furnished for Automatic Flush Bolt
• 15/16” Wide x 2-1/4” Long x 1/16” Thick

Dust Proof Strikes (Optional)

品番 95-2705

• Body Size: 1-1/8” Diameter x 2-1/8” Deep

品番 95-2706

• Body Size: 1-1/8” Diameter x 2-1/8” Deep
• Face Plate Size: 1-5/8” Wide x 3-1/2” Long x 3/32” Thick
